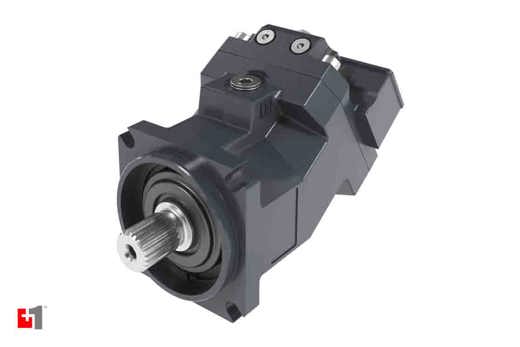

New! H1F fixed motors
The next chapter of the H1 legacy is here! Our new H1F fixed displacement bent-axis hydraulic motor is designed for open- and closed-circuit applications, and offers a compact design, proven reliability, and efficiency – up to 95% - completely surpassing the competition, no matter the pressure rating or rotational speed. The lightweight H1F motor features a power-dense, compact envelope for ease of installation. With its short length and 32-degree angle, the package size is one of the most compact on the market, enabling machine manufacturers to reduce the space claim of the hydraulic system.
Key benefits:
- Proven H1 technology, building on the solid legacy of H1B bent-axis motors
- Up to 95% efficiency – leading to fuel savings, improved productivity, and reduced heat
generation - System pressure up to 510bar (abs), 480bar (delta)
- Can be used for open- and closed-circuit applications
- Now available: 60cc and 80cc, with many more frame sizes to come
Documents
| Type | Name | Language | Valid for | Updated | Download | File type |
|---|---|---|---|---|---|---|
| User guide | H1F bent axis fixed displacement motor H1F 060/080 technical information | English | Multiple | 13 Jan, 2025 | 5.7 MB | |
| User guide | H1F bent axis fixed displacement motor H1F 060/080 technical information | Japanese | Japan | 07 Nov, 2024 | 8.1 MB | |
| Data sheet | H1F Bent Axis Fixed Displacement Motor Size 060 cm³ Data Sheet | English | Multiple | 15 Mar, 2024 | 915.6 KB | |
| Data sheet | H1F Bent Axis Fixed Displacement Motor Size 080 cm³ Data Sheet | English | Multiple | 15 Mar, 2024 | 769.8 KB | |
| User guide | H1F Bent Axis Fixed Displacement Motor Size 080 cm³ Technical Information | Japanese | Multiple | 10 May, 2024 | 4.8 MB |
