Best-in-class package size and performance

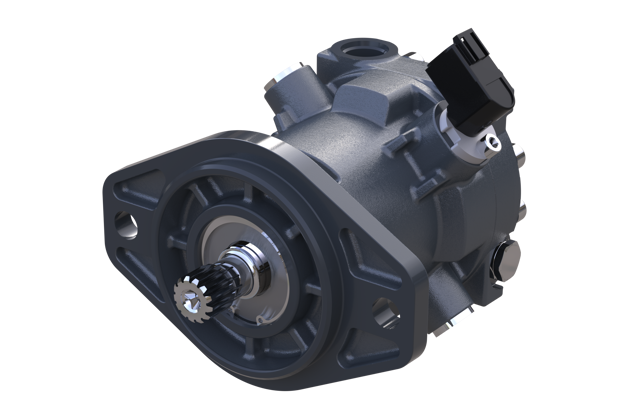

MP1 motor is our next generation of fixed displacement axial piston motors. The MP1 motor is designed for use in mobile equipment using existing and proven technology.
These motors have been optimized around product life, package size, option variety, and low installation cost.
We offer rapid prototype delivery which will allow your application to get faster into the market.
MP1 motors are offered in four displacements in two package sizes, 20/24 and 28/32cc/rev, and are capable of operating in closed-loop and open-loop systems. Different mounting configurations are available: SAE A, B, and cartridge style two-bolt flange.
Fan Drive Systems
MP1 motors can be used in different fan drive circuits along with other Danfoss products, offering great versatility and flexibility to fit your needs.

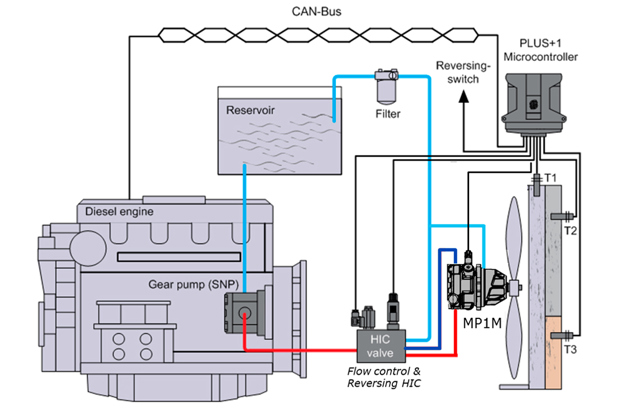

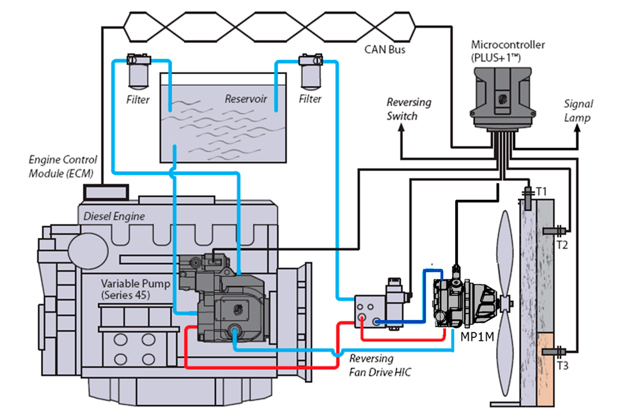

Examples of Fan Drive system solutions using MP1 motors:
Related products

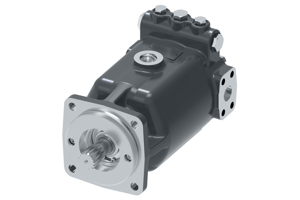

With differentiating high-speed characteristics, the Danfoss Series 1 fixed motor delivers the torque you need for compact, high-pressure piston mobile applications.

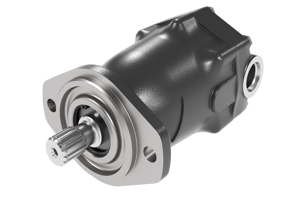

Danfoss 741 and 743 medium-pressure fixed motors feature flexible design and configuration options, including displacement, output shaft, bearing assembly, port configuration, mounting flange, and more.

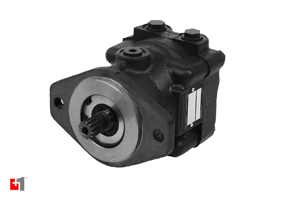

Danfoss Series 40 (M35/M44) motors are medium power variable axial piston motors with rigid, cast-iron housing, and are especially idea for fan drives. Displacements range from 35cc to 46cc, and pressure ranges from 350 Bar to 415 Bar.
Danfoss H1F fixed displacement, bent-axis hydraulic motors can be used in open- and closed-circuit applications. With proven H1 technology and up to 95% efficiency, H1F also features a short length and 32-degree angle.

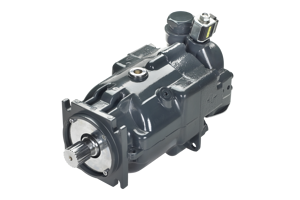

Danfoss Series 90 fixed motor is legendary with 55cc to 130cc displacements and pressure ranges up to 420Bar. Demand genuine Danfoss replacements parts and motors; don’t settle for will-fitters and copycats.
