Precise pressure and flow control

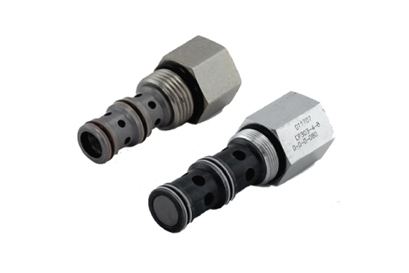

Elevate your control capabilities with smooth, accurate control of pressure and flow applications with our range of Danfoss proportional cartridge valves. Combine them with Danfoss logic element valves and other cartridge valves to build an efficient and reliable hydraulic system.

Learn more

Features and benefits

Flow rating up to 180 l/min [48 US gal/min]

Pressure rating up to 350 bar [5000 psi]

Product range

Product Code Cavity Flow Pressure
PSV10-34-02 SDC10-4 22 l/min [5.8 US gpm] 250 bar [3600 psi]
PSV12-34-02 CP12-4 50 l/min [13 US gpm] 250 bar [3600 psi]
PSV08-34-05 SDC08-4 12 l/min [3.2 US gpm] 240 bar [3500 psi]
PSV10-34-05 SDC10-4 22 l/min [5.8 US gpm] 250 bar [3600 psi]
PSV12-34-05 CP12-4 60 l/min [16 US gpm] 250 bar [3600 psi]
ESVL9-10-E SDC10-5 23 l/min [6 US gpm] 250 bar [3600 psi]
ESVL9-10-F SDC10-5 23 l/min [6 US gpm] 250 bar [3600 psi]
ESVL9-10-E-C SDC10-5 23 l/min [6 US gpm] 250 bar [3600 psi]
ESVL9-10-F-C SDC10-5 23 l/min [6 US gpm] 250 bar [3600 psi]
Product Code Cavity Flow Pressure
ESV1-8-C SDC08-2 30 l/min [8 US gpm] 210 bar [3000 psi]
ESV1-10-C SDC10-2 70 l/min [18 US gpm] 210 bar [3000 psi]
PSVP10-NCR SDC10-2 100 l/min [26 US gpm] 260 bar [3800 psi]
ESV1-12-C C-12-2 102 l/min [27 US gpm] 210 bar [3000 psi]
PSVP12-NCR SDC12-2 120 l/min [32 US gpm] 260 bar [3800 psi]
PSVP16-NCR SDC16-2 176 l/min [46 US gpm] 260 bar [3800 psi]
ESV1-8-O SDC08-2 30 l/min [8 US gpm] 210 bar [3000 psi]
ESV1-10-O SDC10-2 70 l/min [18 US gpm] 210 bar [3000 psi]
PSVP10-NOR SDC10-2 100 l/min [26 US gpm] 260 bar [3800 psi]
ESV1-12-O C-12-2 102 l/min [27 US gpm] 210 bar [3000 psi]
PSVP12-NOR SDC12-2 120 l/min [32 US gpm] 260 bar [3800 psi]
PSVP16-NOR SDC16-2 165 l/min [44 US gpm] 260 bar [3800 psi]
EPV10 SDC10-2 30 l/min [8 US gpm] 350 bar [5000 psi]
EPV16A C-16-3SU 160 l/min [42 US gpm] 280 bar [4000 psi]
EPV16B C-16-3SU 160 l/min [42 US gpm] 280 bar [4000 psi]
Product Code Cavity Flow Pressure
CP518-PNC SDC08-2 12 l/min [3.2 US gpm] 210 bar [3000 psi]
PSV10-NC SDC10-2 40 l/min [11 US gpm] 260 bar [3800 psi]
PSV12-NC SDC12-2 80 l/min [21 US gpm] 260 bar [3800 psi]
PSV16-NC SDC16-2 100 l/min [26 US gpm] 260 bar [3800 psi]
CP518-PNO SDC08-2 12 l/min [3.2 US gpm] 210 bar [3000 psi]
PSV10-NO SDC10-2 45 l/min [12 US gpm] 260 bar [3800 psi]
PSV12-NO SDC12-2 100 l/min [26 US gpm] 260 bar [3800 psi]
PSV16-NO SDC16-2 110 l/min [29 US gpm] 260 bar [3800 psi]
PFR24A A6701 28 l/min [7.4 US gpm] 210 bar [3000 psi]
PFR21H A6701 19 l/min [5 US gpm] 210 bar [3000 psi]
Product Code Cavity Flow Pressure
PFC10-RC SDC10-2 30 l/min [8 US gpm] 260 bar [3800 psi]
PFC12-RC SDC12-2 65 l/min [17 US gpm] 260 bar [3800 psi]
PFC16-RC SDC16-2 90 l/min [24 US gpm] 260 bar [3800 psi]
PFC10-RO SDC10-2 30 l/min [8 US gpm] 260 bar [3800 psi]
PFC12-RO SDC12-2 60 l/min [16 US gpm] 260 bar [3800 psi]
PFC16-RO SDC16-2 85 l/min [22 US gpm] 260 bar [3800 psi]
PFC10-PC SDC10-3 40 l/min [11 US gpm] 260 bar [3800 psi]
PFC12-PC SDC12-3 65 l/min [17 US gpm] 260 bar [3800 psi]
EFV2-12-C C-12-3 114 l/min [30 US gpm] 210 bar [3000 psi]
PFC16-PC SDC16-3 85 l/min [22 US gpm] 260 bar [3800 psi]
PFC10-PO SDC10-3 35 l/min [9 US gpm] 260 bar [3800 psi]
PFC12-PO SDC12-3 70 l/min [18 US gpm] 260 bar [3800 psi]
EFV2-12-O C-12-3 114 l/min [30 US gpm] 210 bar [3000 psi]
PFC16-PO SDC16-3 90 l/min [24 US gpm] 260 bar [3800 psi]
Product Code Cavity Flow Pressure
XMD 04 NCS04/2 5 l/min [1.3 US gpm] 250 bar [3600 psi]
XMP 06 NCS06/2 50 l/min [13 US gpm] 315 bar [4500 psi]
PAR1-10 SDC10-2 57 l/min [15 US gpm] 240 bar [3500 psi]
PAR1-16 SDC16-2 132 l/min [35 US gpm] 210 bar [3000 psi]
PRV08-DAC SDC08-2 3.8 l/min [1 US gpm] 215 bar [3100 psi]
HPRV08-DAC SDC08-2 1.9 l/min [0.5 US gpm] 350 bar [5000 psi]
PRV10-POC SDC10-2 76 l/min [20 US gpm] 250 bar [3600 psi]
PRV12-POC SDC12-2 180 l/min [47 US gpm] 250 bar [3600 psi]
Product Code Cavity Flow Pressure
EPRV2-8 SDC08-3 7.6 l/min [2 US gpm] 35 bar [500 psi]
PPR09-POD SDC10-4 25 l/min [7 US gpm] 50 bar [725 psi]
PPD22A A3531 19 l/min [5 US gpm] 210 bar [3000 psi]
PPAR1-10 SDC10-3 30 l/min [8 US gpm] 210 bar [3000 psi]
XRP 06 NCS06/3 25 l/min [7 US gpm] 315 bar [4600 psi]
PPR10-PAC SDC10-3 25 l/min [7 US gpm] 315 bar [4600 psi]

Documents

Documents
Type Name Language Valid for Updated Download File type
User guide ICS Proportional Valves Technical Information English Multiple 15 Mar, 2024 8.6 MB .pdf
