Versatile performance

Unlock efficiency and effectiveness in your hydraulic integrated circuits (HICs) with our versatile logic elements. These elements can be seamlessly applied to design pressure, flow, and directional control circuits. Covering a wide range of pressure ratings and applications, our logic element valves serve as the foundation for engineering creative and tailored HIC solutions to perfectly meet your application needs.

Learn more

Features and benefits

Flow rating up to 400 l/min [106 US gal/min]

Pressure rating up to 350 bar [5000 psi]

Efficiency

Our logic elements can be easily applied to create pilot-operated solutions, reducing pressure drop and maximizing efficiency.

Reliability

Our logic elements are designed for durability and reliability, ensuring a long operational life in hydraulic systems. This reliability is crucial for maintaining uptime and allowing your machine to do the work it was designed to do.

Functionality

Logic Elements are multipurpose devices that are used in conjunction with other valves in a wide variety of circuits for control of pressure, flow, and direction. They can be used in a variety of ways such as compensators, load sense control, high flow relief/pressure reducing functions, bypass, on/off valves, and many more. Using these valves in combination with each other provides opportunities for innovative solutions.

Product range

Product Code Cavity Flow Pressure
CP300-4 SDC10-3 40 l/min [11 US gpm] 210 bar [3000 psi]
PCS13-10 SDC10-3 38 l/min [10 US gpm] 350 bar [5000 psi]
CP301-4 CP12-3 90 l/min [24 US gpm] 210 bar [3000 psi]
PCS13-12 C-12-3 58 l/min [15 US gpm] 350 bar [5000 psi]
CP302-4 SDC16-3 130 l/min [34 US gpm] 210 bar [3000 psi]
PCS13-16 SDC16-3 114 l/min [30 US gpm] 350 bar [5000 psi]
CP303-4 SDC20-3 284 l/min [75 US gpm] 210 bar [3000 psi]
Product Code Cavity Flow Pressure
CP310-4 SDC10-4 40 l/min [11 US gpm] 210 bar [3000 psi]
PCS14-10 SDC10-4 38 l/min [10 US gpm] 350 bar [5000 psi]
CP311-4 CP12-4 60 l/min [16 US gpm] 210 bar [3000 psi]
PCS14-12 C-12-4 58 l/min [15 US gpm] 350 bar [5000 psi]
CP312-4 SDC16-4 130 l/min [34 US gpm] 210 bar [3000 psi]
PCS14-16 SDC16-4 114 l/min [30 US gpm] 350 bar [5000 psi]
CP313-4 SDC20-4 340 l/min [90 US gpm] 210 bar [3000 psi]
CP310-6 SDC10-4 40 l/min [11 US gpm] 210 bar [3000 psi]
PFRS-12 C-12-5S 76 l/min [20 US gpm] 280 bar [4000 psi]
PFRS-16 C-16-5S 150 l/min [40 US gpm] 280 bar [4000 psi]
PFRS-20 C-20-5S 230 l/min [60 US gpm] 240 bar [3500 psi]
PFRD-12 C-12-5S 76 l/min [20 US gpm] 280 bar [4000 psi]
PFRD-16 C-16-5S 150 l/min [40 US gpm] 280 bar [4000 psi]
PFRD-20 C-20-5S 230 l/min [60 US gpm] 240 bar [3500 psi]
Product Code Cavity Flow Pressure
DPS2-10-B SDC10-3S 60 l/min [16 US gpm] 350 bar [5000 psi]
DPS2-12-B C-12-3S 114 l/min [30 US gpm] 350 bar [5000 psi]
DPS2-16-B SDC16-3S 189 l/min [50 US gpm] 350 bar [5000 psi]
DPS2-20-B C-20-3S 303 l/min [80 US gpm] 350 bar [5000 psi]
DPS2-10-S SDC10-3S 60 l/min [16 US gpm] 350 bar [5000 psi]
DPS2-12-S C-12-3S 114 l/min [30 US gpm] 350 bar [5000 psi]
DPS2-16-S SDC16-3S 189 l/min [50 US gpm] 350 bar [5000 psi]
DPS2-20-S C-20-3S 303 l/min [80 US gpm] 350 bar [5000 psi]
VLP 12/P2 NCS12/3 160 l/min [42 US gpm] 315 bar [4600 psi]
DPS2-10-T SDC10-3S 60 l/min [16 US gpm] 350 bar [5000 psi]
DPS2-12-T C-12-3S 114 l/min [30 US gpm] 350 bar [5000 psi]
DPS2-16-T SDC16-3S 189 l/min [50 US gpm] 350 bar [5000 psi]
DPS2-20-T C-20-3S 303 l/min [80 US gpm] 350 bar [5000 psi]
Product Code Cavity Flow Pressure
DPS2-8-P SDC08-3 30 l/min [8 US gpm] 350 bar [5000 psi]
CP700-1 SDC10-3 50 l/min [13 US gpm] 210 bar [3000 psi]
DPS2-10-P SDC10-3S 60 l/min [16 US gpm] 290 bar [4200 psi]
HLE10-CPC SDC10-3S 80 l/min [21 US gpm] 350 bar [5000 psi]
CP701-1 CP12-3S 150 l/min [40 US gpm] 350 bar [5000 psi]
DPS2-16-P SDC16-3S 189 l/min [50 US gpm] 290 bar [4200 psi]
DPS2-20-P C-20-3S 303 l/min [80 US gpm] 290 bar [4200 psi]
DPS2-8-V SDC08-3 30 l/min [8 US gpm] 350 bar [5000 psi]
CP700-2 SDC10-3 50 l/min [13 US gpm] 210 bar [3000 psi]
DPS2-10-V SDC10-3S 60 l/min [16 US gpm] 290 bar [4200 psi]
HLE10-CVO SDC10-3S 80 l/min [21 US gpm] 350 bar [5000 psi]
CP701-2 CP12-3S 150 l/min [40 US gpm] 350 bar [5000 psi]
DPS2-16-V SDC16-3S 189 l/min [50 US gpm] 290 bar [4200 psi]
DPS2-20-V C-20-3S 303 l/min [80 US gpm] 290 bar [4200 psi]
DPS2-8-R SDC08-3 30 l/min [8 US gpm] 350 bar [5000 psi]
CP700-3 SDC10-3 40 l/min [11 US gpm] 210 bar [3000 psi]
DPS2-10-R SDC10-3S 60 l/min [16 US gpm] 290 bar [4200 psi]
HLE10-OVC SDC10-3S 60 l/min [16 US gpm] 350 bar [5000 psi]
CP701-3 CP12-3S 80 l/min [21 US gpm] 350 bar [5000 psi]
DPS2-16-R SDC16-3S 189 l/min [50 US gpm] 290 bar [4200 psi]
DPS2-20-R C-20-3S 303 l/min [80 US gpm] 290 bar [4200 psi]
DPS2-8-F SDC08-3 30 l/min [8 US gpm] 350 bar [5000 psi]
CP700-4 SDC10-3 40 l/min [11 US gpm] 210 bar [3000 psi]
DPS2-10-F SDC10-3S 60 l/min [16 US gpm] 290 bar [4200 psi]
HLE10-OPO SDC10-3S 60 l/min [16 US gpm] 350 bar [5000 psi]
CP701-4 CP12-3S 76 l/min [20 US gpm] 350 bar [5000 psi]
DPS2-16-F SDC16-3S 189 l/min [50 US gpm] 290 bar [4200 psi]
DPS2-20-F C-20-3S 303 l/min [80 US gpm] 290 bar [4200 psi]
Product Code Cavity Flow Pressure
LE402 SDC20-2 350 l/min [93 US gpm] 350 bar [5000 psi]
LEV402 A21773 400 l/min [106 US gpm] 250 bar [3600 psi]

Documents

Documents
Type Name Language Valid for Updated Download File type
User guide ICS Logic Elements Technical Information English Multiple 15 Mar, 2024 4.7 MB .pdf

Related products

Hydraulic integrated circut HIC
Hydraulic integrated circut HIC

Danfoss ICS specializes in Hydraulic Integrated Circuits (HICs) allowing customers to use our broad portfolio of cartridge valves to create innovative solutions for optimal machine control and performance.

PVG 16 proportional valves
PVG 16 proportional valves

Low-flow PVG 16 covers simple to complex needs. Proven technology and components for customized valve stacks.

PVG 32 proportional valves
PVG 32 proportional valves

PVG 32 is designed for maximum flexibility configurable as an advanced electrically controlled proportional valve. As well as a load sensing directional control valve.

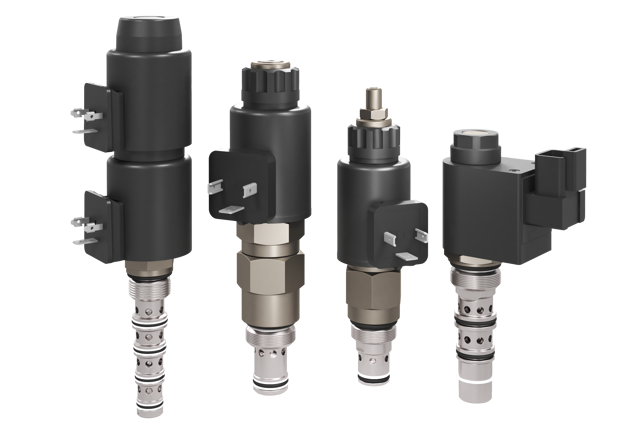

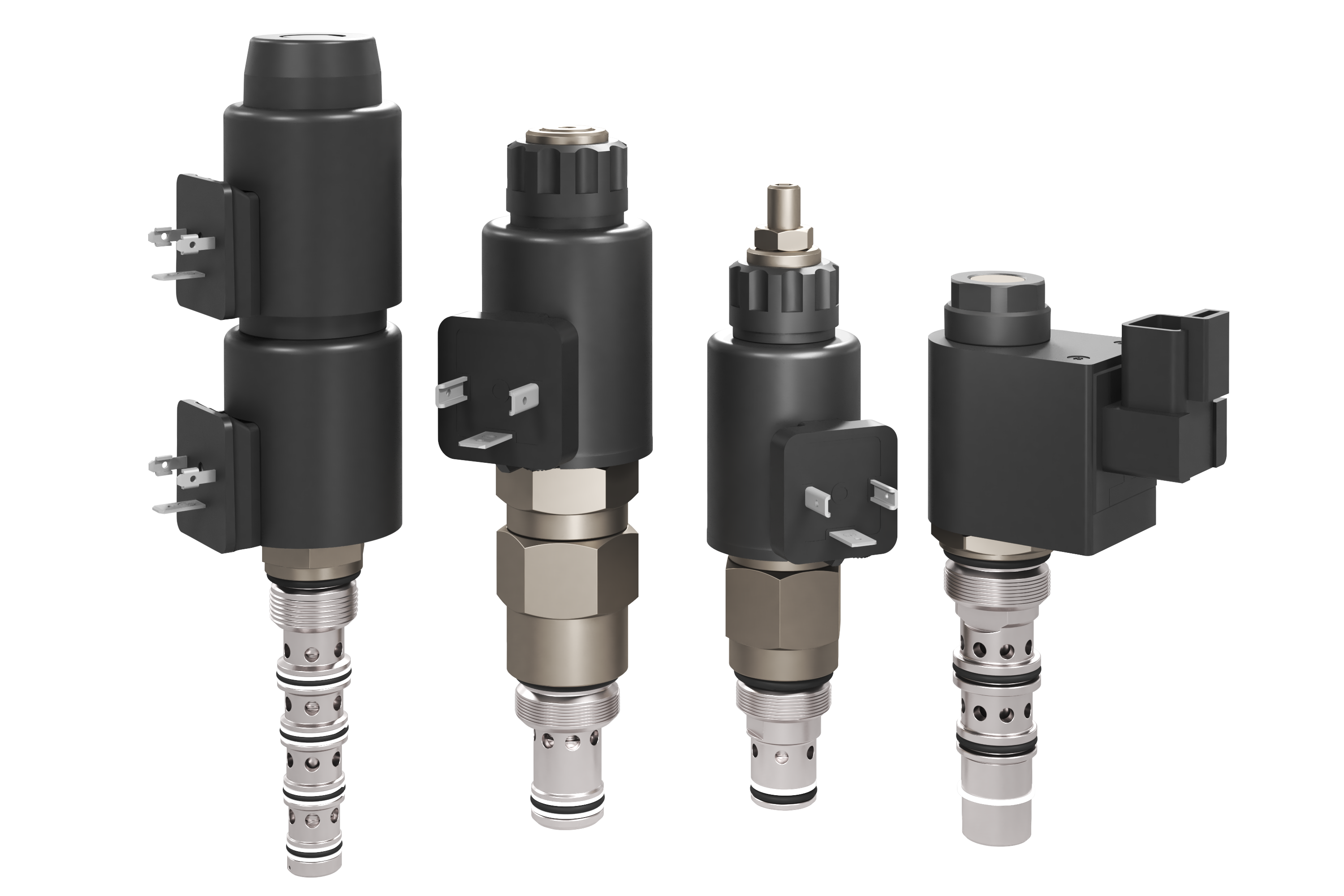

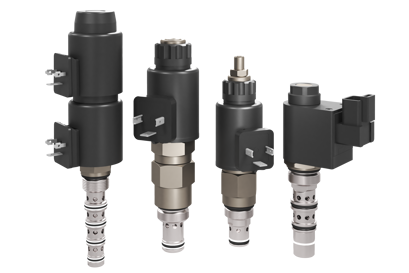

Proportional valves
