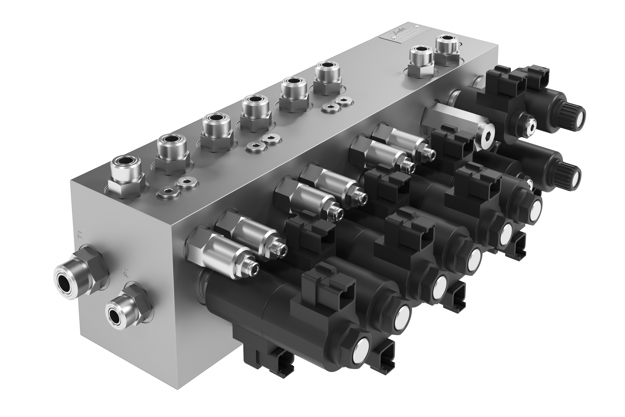

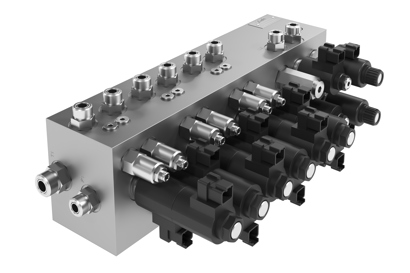

Hydraulic integrated circuit (HIC)

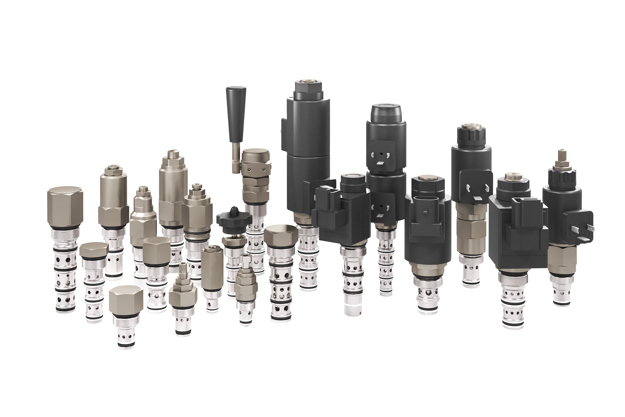

Danfoss ICS specializes in Hydraulic Integrated Circuits (HICs) allowing customers to use our broad portfolio of cartridge valves to create innovative solutions for optimal machine control and performance. A custom HIC offers unlimited flexibility for optimizing a solution for your specific machine - taking assembly, plumbing, wiring, service and weight distribution into consideration.
Features and benefits
HICs are compact packages that simplify machine plumbing, reducing costs for fittings, tubes, hoses, and installation
Connections between cartridges are made internal to the manifold, resulting in elimination of leak points
Components can be replaced without disturbing machine plumbing, dramatically reducing service time and costs
HICs can be centralized on a machine or strategically located near a function. Using a custom HIC provides the designer unlimited flexibility to optimize the design to meet the specific needs of the application
EasyManifold
A custom HIC can be specified and designed to meet your circuit requirements using our EasyManifold design tool.
EasyManifold allows you to:
- Effortlessly create your hydraulic circuit schematic from Danfoss’s digital library of cartridge valves using a drag and drop interface
- Automatically design small to medium sized HICs. At the click of a button, your project can be submitted and EasyManifold will generate a 2D drawing and 3D model. In less than an hour, you can take your project from a concept to a design ready for manufacturing.
Product range
-

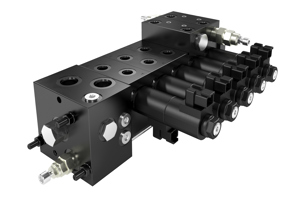

if (isSmallPicture) { ; } else if (isBigColumns) { } else { }MVB10
The MVB10 is a modular system that enables machine developers to create flexible hydraulic control solutions with standard components, ensuring the best speed to market is achieved with a high quality product tailored to the machine requirement.
-

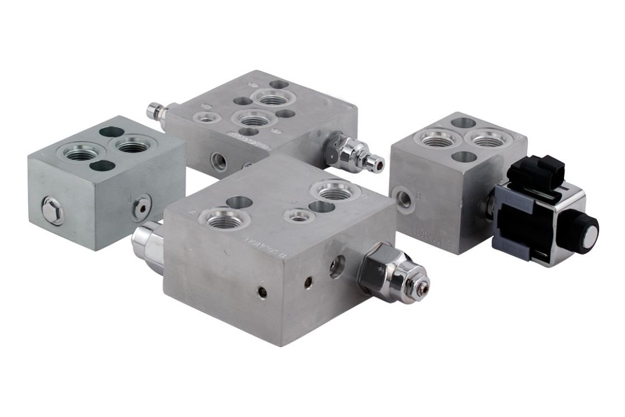

if (isSmallPicture) { ; } else if (isBigColumns) { } else { }Motor mount HICs
Our motor mount HICs (Hydraulic Integrated Circuits) complement the line of Danfoss orbital motors perfectly. Use them in tandem on your motor applications and see performance soar. We offer a flow and pressure ranges to match specific motor capabilities.
-

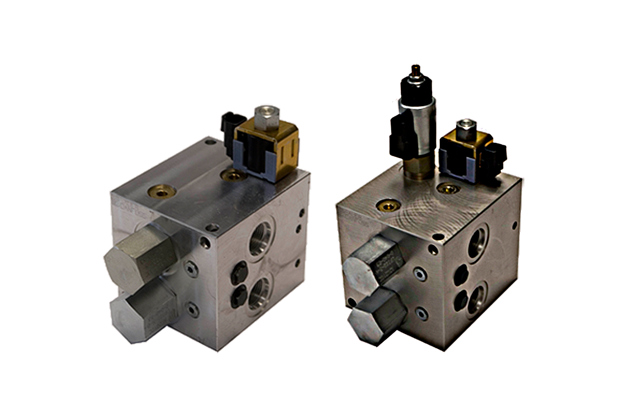

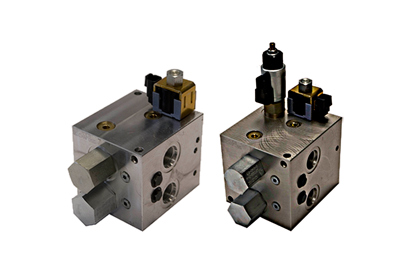

if (isSmallPicture) { ; } else if (isBigColumns) { } else { }Fan drive HICs
Our hydraulic modulating fan drive system allows the machine designer to keep engine temperature in a narrow operating band. It also saves engine power and fuel for the majority of operating conditions. You can choose from 6 types of pre-engineered hydraulic integrated circuits (HICs) designed to provide speed control and reversing for hydraulic modulating fan drive motors in open circuit hydraulic fan drive systems.
-
if (isSmallPicture) { ; } else if (isBigColumns) { } else { }Hydraulic integrated circuit (HIC)
Danfoss ICS specializes in Hydraulic Integrated Circuits (HICs) allowing customers to use our broad portfolio of cartridge valves to create innovative solutions for optimal machine control and performance.
-

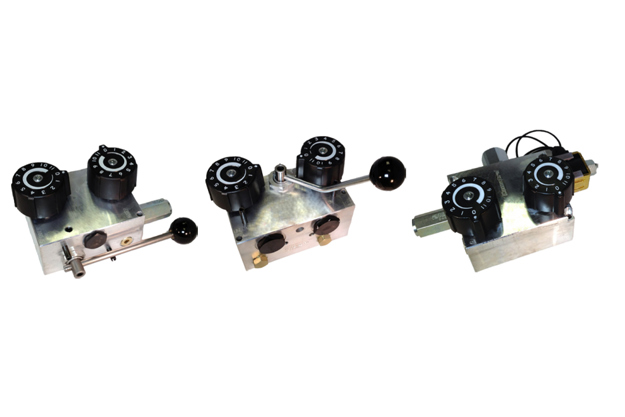

if (isSmallPicture) { ; } else if (isBigColumns) { } else { }Spreader HICs
Danfoss spreader valves offer load-independent flow control for two functions. These products have served many markets for years, primarly being used for ice and snow control on sand/salt spreader vehicles.
Documents
Type | Name | Language | Valid for | Updated | Download | File type |
---|---|---|---|---|---|---|
User guide | ICS Fan Drive Hydraulic Integrated Circuit Technical Information | English | Multiple | 18 Sep, 2020 | 1.8 MB | |
Data sheet | ICS LFB12 Data Sheet | English | Multiple | 17 Sep, 2020 | 1.5 MB | |
User guide | ICS Mix-N-Match Dual Bodies Technical Information | English | Multiple | 18 Sep, 2020 | 3.2 MB | |
User guide | ICS Motor Mount Hydraulic Integrated Circuit Technical Information | English | Multiple | 18 Sep, 2020 | 5.3 MB | |
User guide | ICS Spreader Valves Technical Information | English | Multiple | 18 Sep, 2020 | 1.2 MB | |

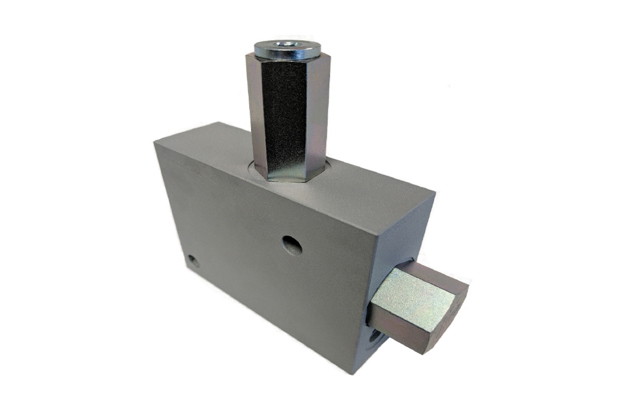

User guide | ICS Traction Control Hydraulic Integrated Circuit Technical Information | English | Multiple | 18 Sep, 2020 | 1.2 MB | |
Brochure | Your most responsive partner for control solutions | Chinese (CN) | China | 15 Oct, 2019 | 6.3 MB | |
Brochure | Your most responsive partner for control solutions | English | Multiple | 11 Oct, 2019 | 3.5 MB |
Related products
-
if (isSmallPicture) { ; } else if (isBigColumns) { } else { }Flow control valves
Danfoss offers a broad range of flow control valves from needle valves to pressure-compensated hydraulic flow dividers to ensure consistent flow regardless of load.
-

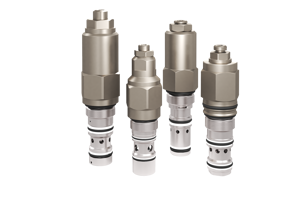

if (isSmallPicture) { ; } else if (isBigColumns) { } else { }Motion control valves
Danfoss offers the most extensive line of counterbalance valves on the market for all your motion control system stability and performance needs.
-

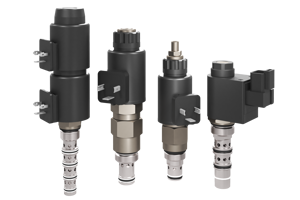

if (isSmallPicture) { ; } else if (isBigColumns) { } else { }Proportional valves
Get control of pressure and flow applications with Danfoss' range of hydraulic proportional screw-in cartridge (SiCV) valves.
-

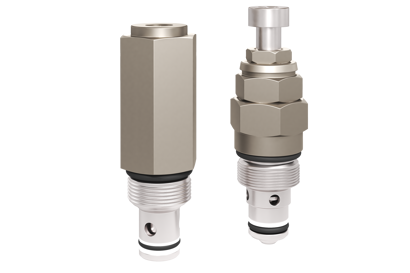

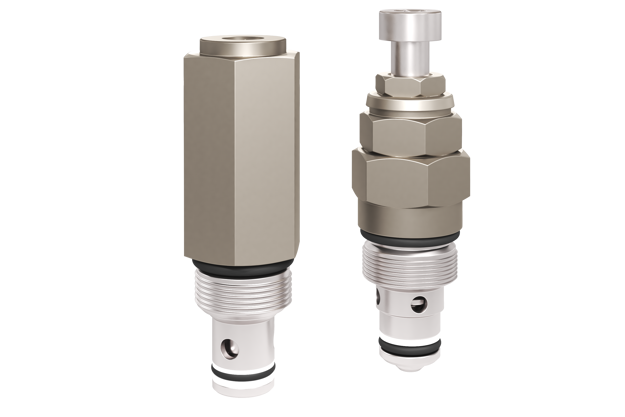

if (isSmallPicture) { ; } else if (isBigColumns) { } else { }Relief valves
Danfoss pressure relief valves are reliable hydraulic control solutions engineered to deliver a quick response, reduce noise, and enhance accuracy.
-

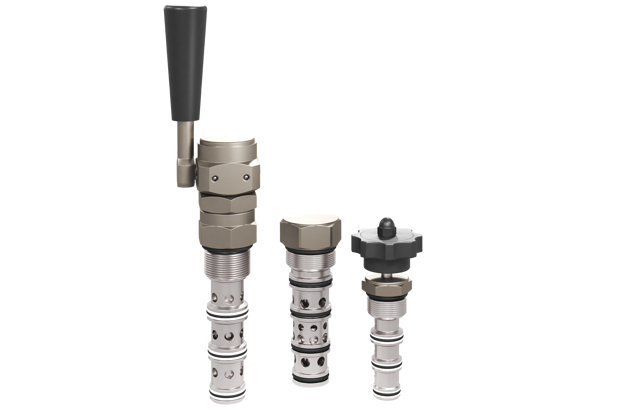

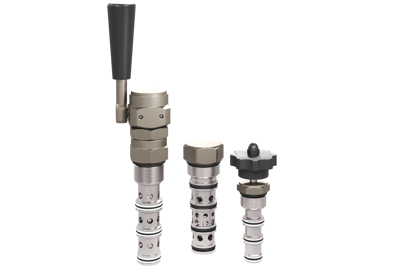

if (isSmallPicture) { ; } else if (isBigColumns) { } else { }Directional control valves
