Pressure reducing valves

Stable and accurate performance

Ensure optimal pressure for your hydraulic functions with our range of pressure reducing valves. Whether you prefer standard reducing or reducing/relieving valves, we've got you covered. Tailor your circuits effortlessly with our versatile selection, designed to meet your unique needs. Experience precision and reliability with our pressure reducing valves for peak hydraulic performance.

Learn more

Features and benefits

Flow rating up to 200 l/min [52 US gal/min]

Pressure rating up to 350 bar [5000 psi]

Efficiency

Our pressure reducing valves efficiently regulate the pressure in one part of a circuit to a pre-determined setting, while allowing the rest of the system to function at full system pressure.

Reliability

Cartridge pressure reducing valves are designed for durability and reliability, effectively regulating pressure to certain functions. This will result in a long operational life for your hydraulic systems by ensuring that your motors, cylinders, etc are not operated outside of their designed parameters.

Functionality

Our various types of pressure reducing valves can address all application requirements: fast response, high flow capacity, stability, accurate pressure regulation, and much more. Find detailed information in the technical documents.

Product range

Pressure reducing/relieving valves

Product Code	Cavity	Flow	Pressure
PRV1-10	SDC10-3	15 l/min [4 US gpm]	165 bar [2400 psi]
PRMP 064	SDC10-3	40 l/min [11 US gpm]	315 bar [4600 psi]
PRV12-10	SDC10-3	45 l/min [12 US gpm]	350 bar [5000 psi]
PRV12-12	C-12-3	114 l/min [30 US gpm]	350 bar [5000 psi]
PRV2-16	SDC16-3	150 l/min [40 US gpm]	350 bar [5000 psi]

Pressure reducing valves (non-relieving)

Product Code	Cavity	Flow	Pressure
PRR10-PVG	SDC10-3	5 l/min [1.3 US gpm]	210 bar [3000 psi]
PRC 06	NCS06/3	40 l/min [11 US gpm]	315 bar [4600 psi]
CP230-2	SDC10-3	40 l/min [11 US gpm]	210 bar [3000 psi]
PPRC 06	NCS06/3	40 l/min [11 US gpm]	315 bar [4600 psi]
CP230-4	SDC10-3	40 l/min [11 US gpm]	350 bar [5000 psi]
1PA100	A880	100 l/min [26 US gpm]	350 bar [5000 psi]
1PA200	A16102	200 l/min [52 US gpm]	350 bar [5000 psi]

Documents

Documents
Type	Name	Language	Valid for	Updated	Download	File type
User guide	ICS Pressure Reducing Valves Technical Information	English	Multiple	15 Mar, 2024	1.2 MB	.pdf

Related products

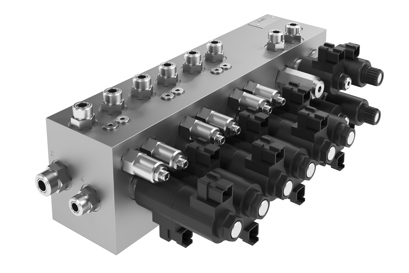

HICs

Danfoss ICS specializes in Hydraulic Integrated Circuits (HICs) allowing customers to use our broad portfolio of cartridge valves to create innovative solutions for optimal machine control and performance.

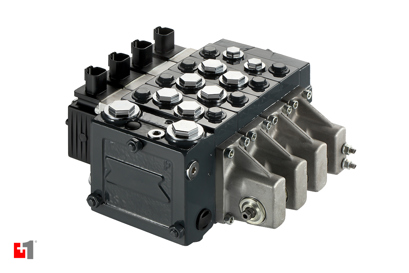

PVG 16 proportional valves

Low-flow PVG 16 covers simple to complex needs. Proven technology and components for customized valve stacks.

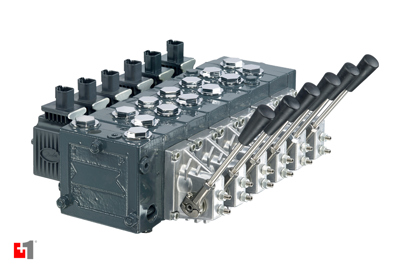

PVG 32 proportional valves
