Heavy-duty joysticks
As a small or medium-sized manufacturer, you need to adapt joysticks to customer needs. Just as quickly and flexibly as a large OEM. That calls for flexible components and a lean development process.

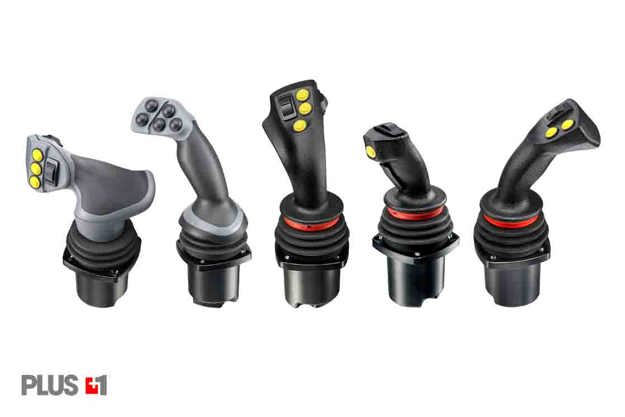

The new JS1-H family of heavy-duty joysticks provides you with a wide portfolio of ergonomically designed, modular components. Which are all fully compliant with PLUS+1® toolbox.
Brought together in intelligent joystick solutions, they provide the safety, reliability and performance. These ensure every job is done efficiently, well and in perfect comfort for machine operators.
The JS1-H joystick family offers versatile solutions for heavy-duty mobile machinery. For instance, wheel loaders, dozers, dumpers, trenchers and haulers in the construction market. As well as, pavers, graders, rollers and milling machines for road building.
Features
Rugged design up to IP66 overall

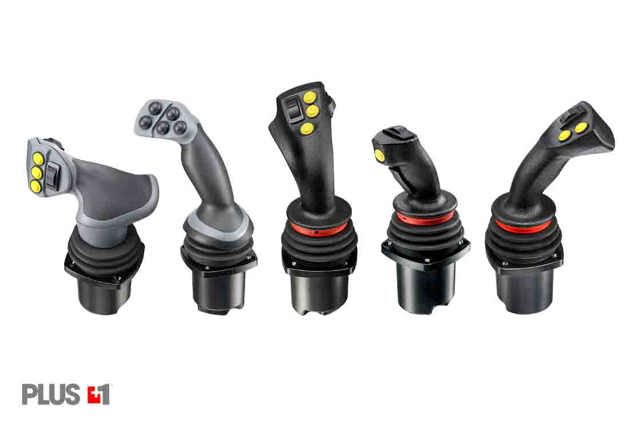

Ergonomic left, right and straight grips
Single and dual axis spring-return
Single axis w/ adjust. Friction-hold
Redundant hall effect or long-life potentiometric sensing (full redundant)
5 different output types: CAN (J1939, CANopen), CAN+ and CANalog PVE and Analog, PWM
5 different grip types: ST2- ST7- PR2- PR7*)- and HR1-grip
Several grip functions: domed and flat push-button (max. 12), proportional roller, rocker switch and FNR, operator presence switch
Connection: wiring harness with connector
Grip travel :+18°
EMI/RFI: 150V/m
ESD: 20kV
Benefits
Customizable solutions
The JS1-H base and grip options allow you to fulfill specific customer requirements for a smooth, comfortable and reliable operation. Choose from three bases and five ergonomic grip types with flexible button and switch placement.
Smart compatibility
Compatible grip and base options make joysticks simple to upgrade. Six standard electrical interfaces are available for ease of configuration.
Superior performance
The JS1-H family is suitable for almost any machine that requires joystick control. PLUS+1 Compliance enables simple and seamless future-oriented integration in the machine control system.
Faster, more flexible fulfillment times
The JS1-H standard portfolio is readily available, enabling you to reduce your warehouse stocks. Even without compromising your ability to fulfill the specifications of individual customers. Easy integration with PLUS+1 also secures fast and efficient development times.
Documents
| Type | Name | Language | Valid for | Updated | Download | File type |
|---|---|---|---|---|---|---|
| Data sheet | JS1 Heavy Duty Joystick Family Data Sheet | Chinese (CN) | Multiple | 19 Nov, 2020 | 882.5 KB | |
| Data sheet | JS1 Heavy Duty Joystick Family Data Sheet | Japanese | Japan | 27 Jul, 2018 | 1.2 MB | |
| Data sheet | JS1 Heavy Duty Joystick Family Data Sheet | English | Multiple | 11 Jun, 2019 | 677.4 KB | |
| Data sheet | JS1 Heavy Duty Joystick Family Data Sheet | Chinese (CN) | China | 02 Nov, 2018 | 785.8 KB | |
| User guide | JS1 Heavy Duty Joystick Family Technical Information | Italian | Multiple | 14 Jul, 2021 | 10.0 MB | |
| User guide | JS1 Heavy Duty Joystick Family Technical Information | English | Multiple | 23 May, 2023 | 9.9 MB | |
| User guide | JS1 Heavy Duty Joystick Family Technical Information | Chinese (CN) | China | 30 Apr, 2021 | 10.3 MB | |
| User guide | JS1 Heavy Duty Joystick Family Technical Information | English | Multiple | 15 Apr, 2024 | 10.0 MB | |
| Data sheet | PVG x JS1-H Data Sheet | English | Multiple | 12 Jan, 2021 | 544.9 KB |
Downloads
Related products
-
if (isSmallPicture) {
Our CAN-based PLUS+1® input/output (I/O) modules are stackable microcontroller add-ons providing smooth and effective hydraulic vehicle control functions.
-
if (isSmallPicture) {
Our PLUS+1® high current controllers, with their smart design and easy to program features, provide smooth control for high-current hydraulic applications.
-
if (isSmallPicture) {
Flexible, powerful and functional safety compliant SC controllers join the portfolio of PLUS+1® compliant components.
-
if (isSmallPicture) {
Our powerful PLUS+1® microcontrollers bring intelligence to every node of a distributed control system. And they are equally effective for stand-alone control in smaller machines.
-
if (isSmallPicture) {

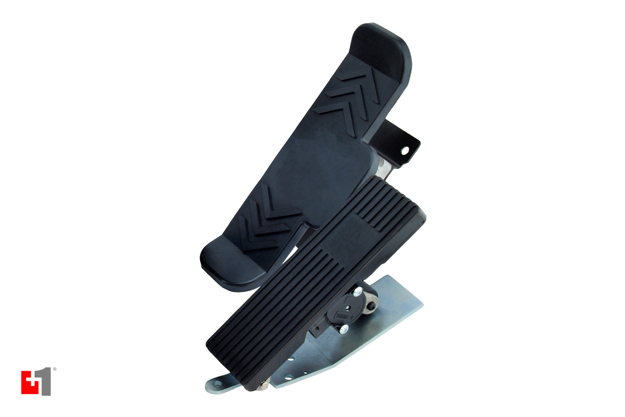

Rugged design bi-directional pedals with 3 million cycle operating life.
