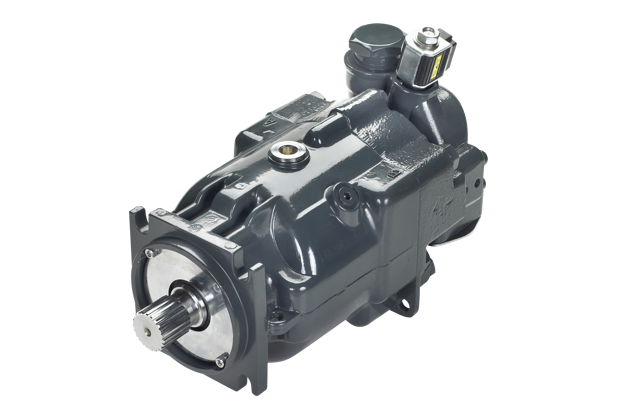

The workhorse for power-demanding machines
Our long-lasting series 90 motor has an excellent reputation, with millions of units all over the world. With the same look and feel for the entire range, from 55cc-130cc displacement, high flexibility is a key feature of this high-power closed circuit motor.
Features and benefits
- The many available S90MF displacements ensure you get the right flow for the job
- The modular design approach of S90MF ensures ease of adaptation for diverse applications
- A comprehensive options portfolio helps you achieve cutting-edge machine performance
- Unique features, such as the build- in loop flushing valve, ensure a fast and easy integration
- A successful track record of more than 30 years
- Displacement ranges from 55cc - 130cc
- Pressure ranges up to 420bar*
- 55cc and 75cc also available as cartridge motor
Documents
| Type | Name | Language | Valid for | Updated | Download | File type |
|---|---|---|---|---|---|---|
| User guide | Series 90 Axial Piston Motors Technical Information | English | Multiple | 15 Nov, 2021 | 3.6 MB | |
| User guide | Series 90 Axial Piston Motors Technical Information Manual | Chinese (CN) | China | 09 Mar, 2015 | 2.5 MB | |
| User guide | Series 90 Axial Piston Motors Technical Information Manual | Japanese | Japan | 09 Mar, 2015 | 1.9 MB |
