Shuttle valves

Reliable performance

Discover the perfect solution for your hydraulic circuit needs with our diverse line of shuttle valves. Whether you're looking for efficiency in load-sensing or loop flushing, we have you covered. Choose from a range of sizes and types, providing versatile options to suit your unique application requirements. Elevate your hydraulic systems with our reliable and efficient shuttle valves.

Learn more

Features and benefits

Flow rating up to 90 l/min [24 US gal/min]

Pressure rating up to 450 bar [6500 psi]

Reliability

All check valve cartridges have hardened and ground poppets and sharp-edged ground steel seats, which provides durability, dirt tolerance, reliable seating and fast cycling.

Functionality

In-line designs can be installed directly to hoses without requiring a manifold, simplifying machine plumbing. Hot oil shuttle valves are commonly used to divert fluid from the low-pressure side of a closed-circuit hydrostatic loop for cooling and/or filtering.

Product range

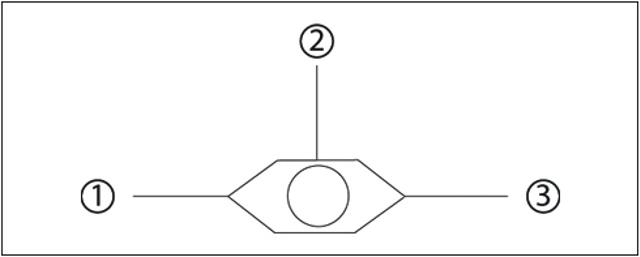

Ball type shuttle valve

Model code	Cavity	Rated pressure	Rated flow	3D model
CP124-1	CP04-3	350 bar (5075 psi)	3.7 lpm (1 gpm)	STP file
CP128-1	SDC08-3	315 bar (4570 psi)	22 lpm (5.8 gpm)	STP file
SV 04	NCS04/3	315 bar (4570 psi)	15 lpm (4 gpm)	STP file
CP120-4	SDC10-3	330 bar (4800 psi)	25 lpm (7 gpm)	STP file
SV 06	NCS06/3	350 bar (5075 psi)	48 lpm (12.7 gpm)	STP file

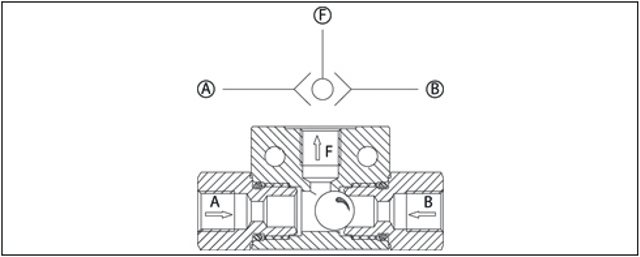

In-line shuttle valve

Model code	Cavity	Rated pressure	Rated flow	3D model
VS 06	None	350 bar (5075 psi)	35 lpm (9 gpm)	STP file
VS 10	None	350 bar (5075 psi)	45 lpm (12 gpm)	STP file

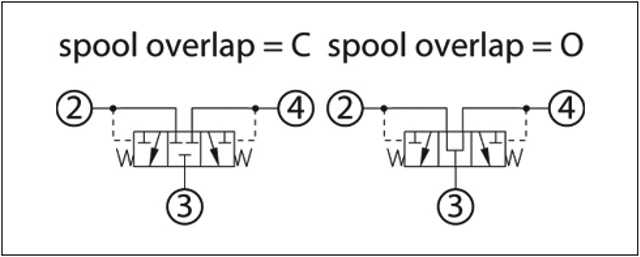

Hot oil shuttle valve

Model code	Cavity	Rated pressure	Rated flow	3D model
CP720-3	SDC10-4	350 bar (5075 psi)	25 lpm (7 gpm)	STP file
CP721-3	CP12-3M	350 bar (5075 psi)	90 lpm (24 gpm)	STP file
