Reliable performance

Discover the perfect solution for your hydraulic circuit needs with our diverse line of shuttle valves. Whether you're looking for efficiency in load-sensing or loop flushing, we have you covered. Choose from a range of sizes and types, providing versatile options to suit your unique application requirements. Elevate your hydraulic systems with our reliable and efficient shuttle valves.

Learn more

Features and benefits

Flow rating up to 90 l/min [24 US gal/min]

Pressure rating up to 450 bar [6500 psi]

Product range

Model code Cavity Rated pressure Rated flow 3D model
CP124-1 CP04-3 350 bar
(5075 psi)
3.7 lpm
(1 gpm)
STP file
CP128-1 SDC08-3 315 bar
(4570 psi)
22 lpm
(5.8 gpm)
STP file
SV 04 NCS04/3 315 bar
(4570 psi)
15 lpm
(4 gpm)
STP file
CP120-4 SDC10-3 330 bar
(4800 psi)
25 lpm
(7 gpm)
STP file
SV 06 NCS06/3 350 bar
(5075 psi)
48 lpm
(12.7 gpm)
STP file

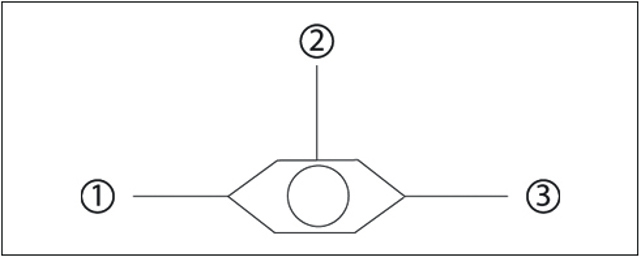

Ball type shuttle valve
Model code Cavity Rated pressure Rated flow 3D model
VS 06 None 350 bar
(5075 psi)
35 lpm
(9 gpm)
STP file
VS 10 None 350 bar
(5075 psi)
45 lpm
(12 gpm)
STP file

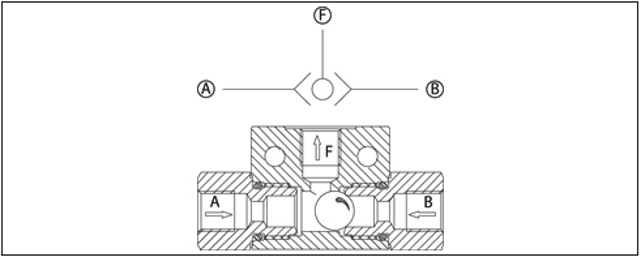

In-line shuttle valve
Model code Cavity Rated pressure Rated flow 3D model
CP720-3 SDC10-4 350 bar
(5075 psi)
25 lpm
(7 gpm)
STP file
CP721-3 CP12-3M 350 bar
(5075 psi)
90 lpm
(24 gpm)
STP file
Hot oil shuttle valve

Documents

Documents
Type Name Language Valid for Updated Download File type
User guide ICS Shuttle Valves Technical Information English Multiple 18 Mar, 2024 961.3 KB .pdf
