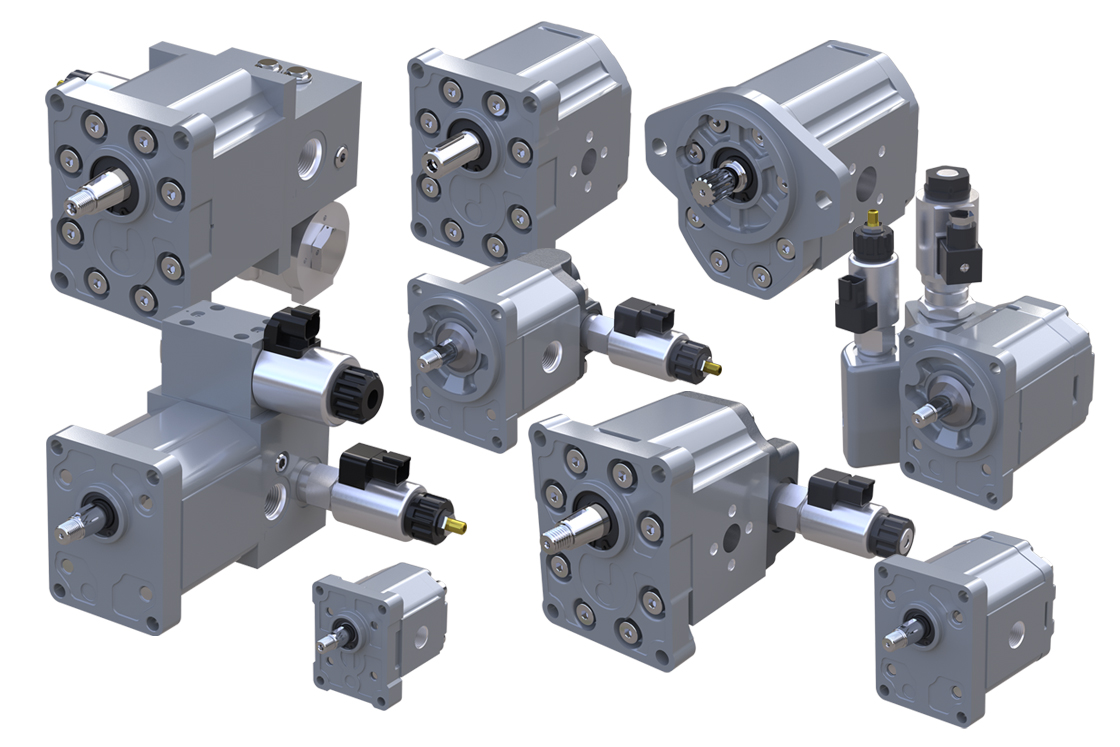

Available in many sizes
Our GearMe gear motors are the ideal choice for a wide range of applications - from small to medium and large off-highway vehicles.
Available in three different frame sizes our aluminum gear motors feature high strength extruded aluminum housings, an aluminum rear cover and a front flange for a maximum strength and a low weight.
A broad variety of configurations are available with European or SAE flange options to meet widely varying machine requirements.
Our GearMe gear motors are designed to achieve significant improvement in overall efficiency. Use them to power your work functions and see your energy consumption reach a new low.
Our fixed displacement GearMe AL gear motors put your machine to work – providing maximum strength at minimum weight in the right frame size for your requirements.
Product range

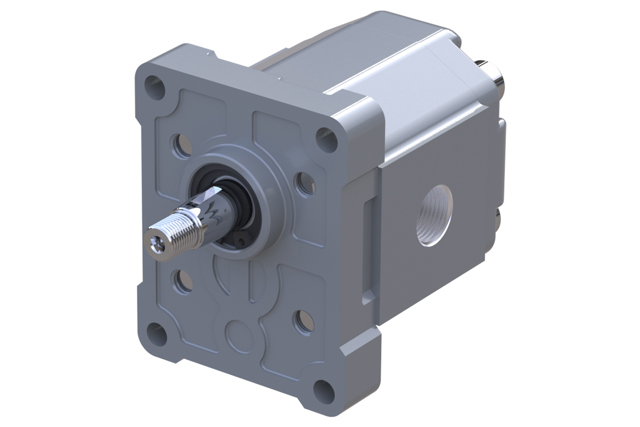

GearMe al gear motor gr 1
- A high efficiency and a light weight aluminum construction
- Pressure balanced bearing blocks for maximum performance across operating range
- Teflon® coated bushings extend life under extreme temperature, pressure and speed conditions
- One piece gears minimize deflection under pressure
- An excellent starting torque
| Frame size | Frame size | Frame size | Frame size | Frame size | Frame size | Frame size | Frame size | ||
| 2,6 | 3,2 | 3,8 | 4,3 | 6,0 | 7,8 | 010 | 012 | ||
| Displacement | cm3/rev [in3/rev] |
2.62 [0.158] |
3.14 [0.195] |
3.66 [0.231] |
4.19 [0.262] |
5.89 [0.366] |
7.59 [0.463] |
9.94 [0.607] |
12 [0.732] |
| SKM1NN (a standard, bidirectional motor) |
|||||||||
| Peak pressure | bar [psi] |
270 [3915] |
270 [3915] |
270 [3915] |
270 [3915] |
250 [3625] |
220 [3190] |
180 [2610] |
150 [2175] |
| Rated pressure | bar [psi] |
250 [3625] |
250 [3625] |
250 [3625] |
250 [3625] |
230 [3335] |
200 [2900] |
160 [2320] |
130 [1895] |
| Back pressure | bar [psi] |
250 [3625] |
250 [3625] |
250 [3625] |
250 [3625] |
230 [3335] |
200 [2900] |
160 [2320] |
130 [1895] |
| Min speed | min-1 (rpm) |
1000 | 1000 | 1000 | 800 | 800 | 800 | 800 | 800 |
| Max speed | min-1 (rpm) |
4000 | 4000 | 3000 | 3000 | 2000 | 2000 | 2000 | 2000 |
| SKU1NN (a standard, unidirectional motor) |
|||||||||
| Peak pressure | bar [psi] |
270 [3915] |
270 [3915] |
270 [3915] |
270 [3915] |
250 [3625] |
220 [3190] |
170 [2465] |
140 [2030] |
| Rated pressure | bar [psi] |
250 [3625] |
250 [3625] |
250 [3625] |
250 [3625] |
230 [3335] |
200 [2900] |
150 [2175] |
120 [1740] |
| Min speed | min-1 (rpm) |
1000 | 1000 | 1000 | 800 | 800 | 800 | 800 | 800 |
| Max speed | min-1 (rpm) |
4000 | 4000 | 3000 | 3000 | 2000 | 2000 | 2000 | 2000 |
| SNU1NN (a standard, unidirectional motor) |
|||||||||
| Peak pressure | bar [psi] |
270 [3915] |
270 [3915] |
270 [3915] |
270 [3915] |
190 [2755] |
180 [2610] |
- | - |
| Rated pressure | bar [psi] |
250 [3625] |
250 [3625] |
250 [3625] |
250 [3625] |
170 [2465] |
160 [2320] |
- | - |
| Min speed | min-1 (rpm) |
1000 | 1000 | 1000 | 800 | 800 | 800 | - | - |
| Max speed | min-1 (rpm) |
4000 | 4000 | 3000 | 3000 | 2000 | 2000 | - | - |
| All | |||||||||
| Weight | kg [lb] |
1.02 [2.26] |
1.14 [2.51] |
1.18 [2.60] |
1.20 [2.65] |
1.30 [2.87] |
1.39 [3.06] |
1.55 [3.42] |
1.65 [3.64] |
| Moment of inertia of rotating components | x 10-6 kg•m2 [x 10-6 lbf•ft2] |
5.1 [121.0] |
5.7 [135.2] |
6.4 [151.9] |
7.1 [168.5] |
9.3 [220.7] |
11.4 [270.5] |
14.6 [339.4] |
17.1 [405.8] |
1kg•m2 = 23.68 lb•ft2

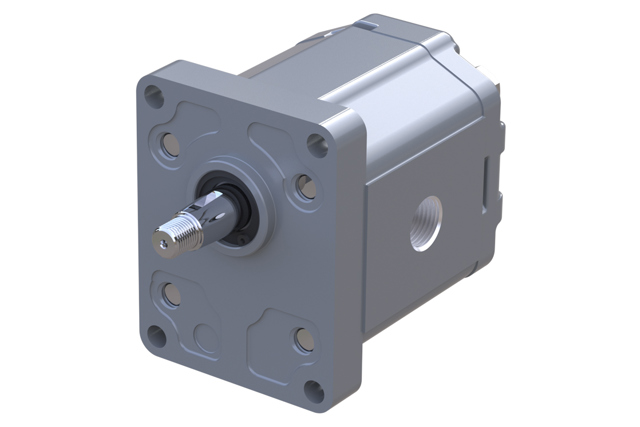

GearMe al gear motor gr 2
- A high efficiency and a light weight aluminum construction
- Pressure balanced bearing blocks for maximum performance across operating range
- Teflon® coated bushings extend life under extreme temperature, pressure and speed conditions
- One piece gears minimize deflection under pressure
- An excellent starting torque
| Frame size | Frame size | Frame size | Frame size | Frame size | Frame size | Frame size | Frame size | ||
| 6,0* | 8,0 | 011 | 014 | 017 | 019 | 022 | 025 | ||
| Displacement | cm3/rev [in3/rev] |
6.0 [0.36] |
8.4 [0.513] |
10.8 [0.659] |
14.4 [0.879] |
16.8 [1.025] |
19.2 [1.171] |
22.8 [1.391] |
25.2 [1.538] |
| SNM2NN (bidirectional motor) |
|||||||||
| Peak pressure | bar [psi] |
280 [4060] |
280 [4060] |
280 [4060] |
280 [4060] |
260 [3770] |
230 [3335] |
200 [2900] |
180 [2610] |
| Rated pressure | bar [psi] |
250 [3625] |
250 [3625] |
250 [3625] |
250 [3625] |
230 [3335] |
210 [3045] |
180 [2610] |
160 [2320] |
| Outlet back pressure | bar [psi] |
250 [3625] |
250 [3625] |
250 [3625] |
250 [3625] |
230 [3335] |
210 [3045] |
180 [2610] |
160 [2320] |
| Min speed | min-1 (rpm) |
700 | 700 | 700 | 700 | 500 | 500 | 500 | 500 |
| Max speed | min-1 (rpm) |
4000 | 4000 | 4000 | 4000 | 4000 | 3500 | 3500 | 3500 |
| SNU2NN (unidirectional motor) |
|||||||||
| Peak pressure | bar [psi] |
- | 280 [4060] |
280 [4060] |
280 [4060] |
260 [3770] |
230 [3335] |
200 [2900] |
180 [2610] |
| Rated pressure | bar [psi] |
- | 250 [3625] |
250 [3625] |
250 [3625] |
230 [3335] |
210 [3045] |
180 [2610] |
160 [2320] |
| Min speed | min-1 (rpm) |
- | 600 | 600 | 600 | 500 | 500 | 500 | 500 |
| Max speed | min-1 (rpm) |
- | 3500 | 3500 | 3500 | 3000 | 3000 | 3000 | 2500 |
| SKU2NN (unidirectional motor) |
|||||||||
| Peak pressure | bar [psi] |
- | 280 [4060] |
280 [4060] |
280 [4060] |
260 [3770] |
230 [3335] |
200 [2900] |
180 [2610] |
| Rated pressure | bar [psi] |
- | 250 [3625] |
250 [3625] |
250 [3625] |
230 [3335] |
210 [3045] |
180 [2610] |
160 [2320] |
| Min speed | min-1 (rpm) |
- | 600 | 600 | 600 | 500 | 500 | 500 | 500 |
| Max speed | min-1 (rpm) |
- | 3500 | 3500 | 3500 | 3000 | 3000 | 3000 | 2500 |
| All (SNM2NN, SNU2NN, SKU2NN) |
|||||||||
| Weight | kg [lb] |
2.4 [5.3] |
2.5 [5.5] |
2.7 [5.5] |
2.9 [6.3] |
3.0 [6.5] |
3.1 [6.7] |
3.2 [7.0] |
3.3 [7.3] |
| Moment of inertia of rotating components | x 10-6 kg•m2 [x 10-6 lbf•ft2] |
26.5 [629] |
32.4 [769] |
38.4 [911] |
47.3 [1122] |
53.3 [1265] |
59.2 [1405] |
68.1 [1616] |
74.1 [1758] |
| Theoretical flow at max speed | l/min [US gal/min] |
24 [6.3] |
33.6 [8.9] |
43.2 [11.4] |
50.4 [13.3] |
50.4 [13.3] |
57.6 [15.2] |
68.4 [18.0] |
75.6 [20.0] |
1kg•m2 = 23.68 lb•ft2

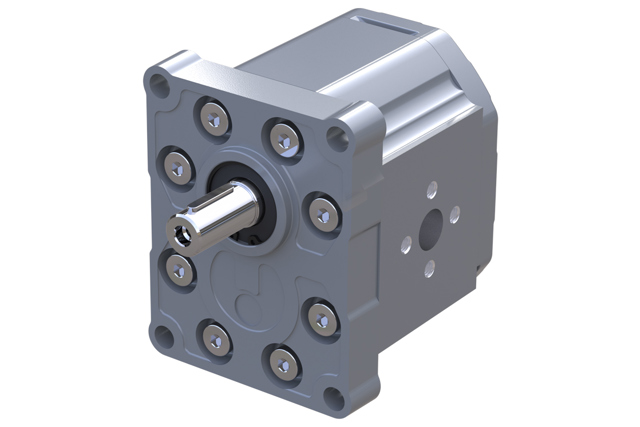

GearMe al gear motor gr 3
- A high efficiency and a light weight aluminum construction
- Pressure balanced bearing blocks for maximum performance across operating range
- Teflon® coated bushings extend life under extreme temperature, pressure and speed conditions
- One piece gears minimize deflection under pressure
- An excellent starting torque
| Frame size | Frame size | Frame size | Frame size | Frame size | Frame size | Frame size | Frame size | Frame size | Frame size | ||
| 022 | 026 | 033 | 038 | 044 | 048 | 055 | 063 | 075 | 090 | ||
| Displacement | cm3/rev [in3/rev] |
22.1 [1.35] |
26.2 [1.60] |
33.1 [2.02] |
37.9 [2.32] |
44.1 [2.69] |
48.3 [2.93] |
55.2 [3.36] |
63.4 [3.87} |
74.4 [4.54] |
88.2 [5.38] |
| SNU3NN (unidirectional) | |||||||||||
| Peak pressure | bar [psi] |
270 [3915] |
270 [3915] |
270 [3915] |
270 [3915] |
270 [3915] |
250 [3625] |
230 [3336] |
210 [3045] |
190 [2755] |
170 [2465] |
| Rated pressure | bar [psi] |
250 [3625] |
250 [3625] |
250 [3625] |
250 [3625] |
250 [3625] |
230 [3336] |
210 [3045] |
190 [2755] |
170 [2465] |
150 [2175] |
| Min speed | min-1 (rpm) |
800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 |
| Max speed | min-1 (rpm) |
2500 | 2500 | 2500 | 2500 | 2300 | 2300 | 2300 | 2300 | 2100 | 2100 |
| SNM3NN (bidirectional) motor in parallel | |||||||||||
| Peak pressure | bar [psi] |
270 [3915] |
270 [3915] |
270 [3915] |
270 [3915] |
270 [3915] |
250 [3625] |
230 [3336] |
210 [3045] |
190 [2755] |
170 [2465] |
| Rated pressure | bar [psi] |
250 [3625] |
250 [3625] |
250 [3625] |
250 [3625] |
250 [3625] |
230 [3336] |
210 [3045] |
190 [2755] |
170 [2465] |
150 [2175] |
| Min speed | min-1 (rpm) |
800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 |
| Max speed | min-1 (rpm) |
2500 | 2500 | 2500 | 2500 | 2300 | 2300 | 2300 | 2300 | 2100 | 2100 |
| SNM3NN (bidirectional) motor in series | |||||||||||
| Peak pressure | bar [psi] |
250 [3625] |
250 [3625] |
250 [3625] |
250 [3625] |
250 [3625] |
230 [3336] |
210 [3045] |
190 [2755] |
170 [2465] |
150 [2175] |
| Rated pressure | bar [psi] |
250 [3625] |
250 [3625] |
250 [3625] |
250 [3625] |
250 [3625] |
230 [3336] |
210 [3045] |
190 [2755] |
170 [2465] |
150 [2175] |
| Min speed | min-1 (rpm) |
800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 |
| Max speed | min-1 (rpm) |
2500 | 2500 | 2500 | 2500 | 2300 | 2300 | 2200 | 2100 | 2100 | 2100 |
| All (SNU3NN, SNM3NN) | |||||||||||
| Weight | kg [lb] |
6.8 [15.0] |
6.8 [15.0] |
7.2 [15.8] |
7.3 [16.1] |
7.5 [16.5] |
7.6 [16.8] |
7.8 [17.3] |
8.1 [17.9] |
8.5 [18.7] |
8.9 [19.6] |
| Moment of inertia of rotating components | x 10-6 kg•m2 [x 10-6 lbf•ft2] |
198 [4698] |
216 [5126] |
246 [5837 |
267.2 [6341] |
294.2 [6981] |
312.2 [7408] |
342.3 [8123] |
378.3 [8977] |
426.4 [10118] |
486.5 [11545] |
1kg•m2 = 23.68 lb•ft2

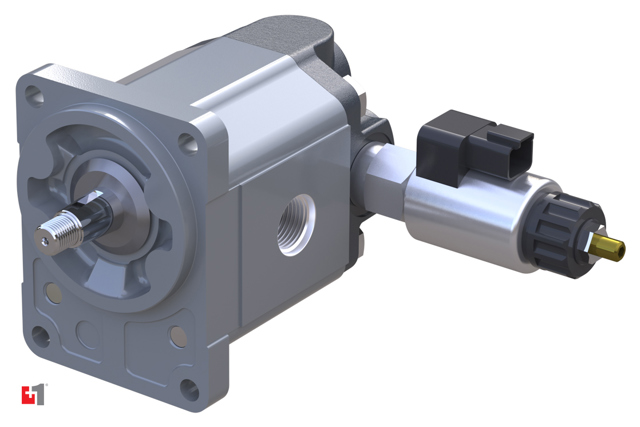

GearMe al fan drive gear motor gr 2
- An integrated dust cover to extend product life by preventing dirt ingression across the shaft seal
- An enhanced gear teeth machining and special coating to reduce noise levels to boost operator comfort
- EH proportional valve integrated in the rear casting to provide more uniform performance over the entire operating temperature range
- PLUS+1® Compliant technology to ensure all electro-hydraulic products integrate seamlessly in a customized control system
| Frame size | 8,0 | 011 | 014 | 017 | 019 | 022 | 025 | |
| Displacement | cm3/rev [in3/rev] |
8.4 [0.51] |
10.8 [0.66] |
14.4 [0.88] |
16.8 [1.03] |
19.2 [1.17] |
22.8 [1.39] |
25.2 [1.54] |
| Peak pressure | bar [psi] |
270 [3916] |
270 [3916] |
270 [3916] |
250 [3626] |
230 [3336] |
210 [3046] |
180 [2610] |
| Rated pressure | bar [psi] |
250 [3626] |
250 [3626] |
250 [3626] |
230 [3336] |
210 [3046] |
180 [2610] |
160 [2320] |
| Back pressure | bar [psi] |
250 [3626] |
250 [3626] |
250 [3626] |
230 [3336] |
210 [3046] |
180 [2610] |
160 [2320] |
| Max speed | min-1 (rpm) | 3500 | 3500 | 3500 | 3500 | 3200 | 3200 | 3200 |
| Min speed | min-1 (rpm) | 700 | 700 | 700 | 500 | 500 | 500 | 500 |
| Weight | kg [lb] |
3.2 [7.05] |
3.75 [8.26] |
3.9 [8.60] |
4.05 [8.93] |
4.15 [9.15] |
4.3 [9.48] |
4.4 [9.70] |
| Moment of inertia of rotating components |
x 10-6 kg•m2 [x 10-6 lb•ft2] |
32.4 [769] |
38.4 [911] |
47.3 [1122] |
53.3 [1265] |
59.2 [1405] |
68.1 [1616] |
74.1 [1758] |
1kg•m2 = 23.68 lb•ft2

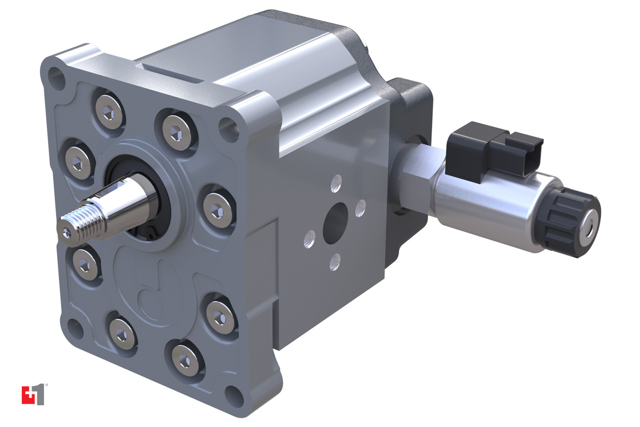

GearMe al fan drive gear motor gr 3
- An integrated dust cover to extend product life by preventing dirt ingression across the shaft seal
- An enhanced gear teeth machining and special coating to reduce noise levels to boost operator comfort
- EH proportional valve integrated in the rear casting to provide more uniform performance over the entire operating temperature range
- PLUS+1® Compliant technology to ensure all electro-hydraulic products integrate seamlessly in a customized control system
| Frame size | 022 | 026 | 033 | 038 | 044 | |
| Displacement | cm3/rev [in3/rev] |
22.1 [1.34] |
26.2 [1.60] |
33.1 [2.02] |
37.9 [2.31] |
44.1 [2.69] |
| Peak pressure | bar [psi] |
270 [3916] |
270 [3916] |
270 [3916] |
270 [3916] |
270 [3916] |
| Rated pressure | bar [psi] |
250 [3626] |
250 [3626] |
250 [3626] |
250 [3626] |
250 [3626] |
| Back pressure | bar [psi] |
250 [3626] |
250 [3626] |
250 [3626] |
250 [3626] |
250 [3626] |
| Min speed | min-1 (rpm) | 2500 | 2500 | 2500 | 2500 | 2300 |
| Max speed | min-1 (rpm) | 800 | 800 | 800 | 800 | 800 |
| Weight | kg [lb] |
8.62 [19.0] |
8.72 [19.23] |
8.82 [19.45] |
8.88 [19.58] |
9.02 [19.89] |
| Moment of inertia of rotating components |
x 10-6 kg•m2 [x 10-6 lb•ft2] |
198 [4699] |
216 [5126] |
246 [5838] |
267.2 [6341] |
294.2 [6981] |
1kg•m2 = 23.68 lb•ft2
Documents
Related applications
Space is limited on construction sites, and there are people working everywhere. Contractors need machines that can safely maneuver in a tight spot. At the same time they still need to be powerful enough to get the job done. At Danfoss, we deliver the components, software, and controls that enable your machines to run safely, efficiently and effectively.
Cranes and other large handling machines are required to operate within very specific load ranges. Danfoss provides pressure transmitters that supply load limiting systems with crucial data, safeguarding your equipment, your load, and your operator.
Rough, sloping terrain and cramped working conditions call for robust and reliable forestry machines. We make sure you can manage everything from cutting trees and transport to preparing the forest floor for replanting. We have the smart hydraulic solutions your machines need for precise and efficient forestry operations.
Think about the heaviest challenges in the open mining, road building and construction industry. Tasks such as cutting through rock or the Arctic permafrost; compacting thick layers of hot asphalt. As well as lifting huge, prefabricated wall panels into place.
Lawn and turf machines must adapt to their surroundings and the season – becoming sweepers or snow blowers as required. At Danfoss, we make hydraulic solutions to provide that flexibility and ensure safe and efficient operation.
Advanced hydraulic systems from Danfoss deliver the machine performance that ensures road builders can meet their deadlines.
Related solutions

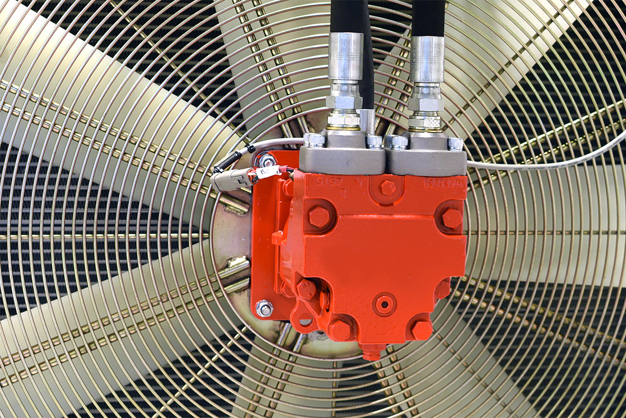

Optimize fan drive solutions with the Reverse Displacement Motor (RDM) and the new Series 45 Fan Drive Control (FDC). The RDM is a breakthrough in technological innovation and engineering.
Danfoss is here to help. With our complete fan drive solution, Danfoss is able to help you maximize available engine power. As well as, decrease fuel costs and increase operator productivity.
Related products
Our GearMe gear motors are the ideal choice for a wide range of applications - from small to medium and large off-highway vehicles. Ultracompact fan drives are also available. They are ideal when both compactness and high efficiency are required.
Specifically designed for demanding mobile equipment applications where maximum performance is required at peak power levels and operating temperatures, our cast iron gear motors including fan drives ensure great productivity and excellent fuel efficiency, along with reduced vehicle emissions.
A solid product line for standard applications with unique design featuring cast iron flange and end cover for optimum reliability. Suitable for wide variety of applications that demands standard motor performance.

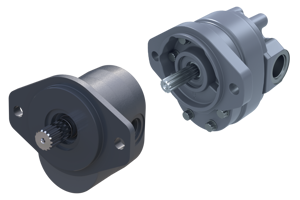

Our Rugid gear pumps are 20% smaller than conventional gear products, and give great power density in a small package. Typical applications are skid steer loaders and heavy-duty machines.

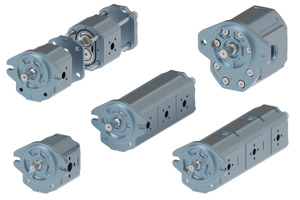

Our gear pumps are robust and reliable. They are the ideal choice for a wide range of applications. From small to medium and large off-highway vehicles, as well as for industrial applications. Low noise gear pumps are also available. They are the ideal solution for steering applications in cab-equipped mobile machines and for electric/hybrid machines.
PowerSource
Visit PowerSource
Visit PowerSource to view product specifications, literature and helpful tools like product configurators, 2D/3D models, and more.
Explore more
