PVG 48 proportional valves

Maximum flexibility

PVG 48 is designed for maximum flexibility based on proven PVG technology and modularity that simplifies the design process, manufacturing and aftermarket activities. PVG 48 enables flow up to 180 l/min work port flow and the complete actuator portfolio from PVG 32 can be applied, enabling a seamless integration with the pre-compensated valve familiy. It is directly stackable with PVG 16 and PVG 32 and can be stacked with PVG 128/256 via an interface plate.

Seamless Integration

Three valve sizes (PVG 16-32-48) can now be directly stacked into 1 valve group enabling customized solution for your exact and specified application control needs in a compact and cost-efficient package.

Load-sensing

By using PVG load-sensing technology in combination with a variable displacement pump, it’s possible to achieve a significant reduction in energy loss. PVG valves also reduce heat generation and increase efficiency and power density, which helps OEMs to meet the challenges posed by new diesel engine emissions legislation.

OEM and machine benefits

Modular design, providing a wide range of configuration possibilities
Load-independent flow control for precise operation and improved productivity
Load-sensing technology for higher efficiency, safety, reduced energy consumption, and longer system life

Product features

Load-independent flow control for precise operation and improved productivity
Prevention against work port pressure build up Individual work port pressure setting

Introducing the PVG 48 proportional valve

Designed to easily integrate with the existing Danfoss Power Solutions’ high performance proportional valve platform.

Documents

Documents
Type	Name	Language	Valid for	Updated	Download	File type
Service guide	PVG 16, 32, 48, 128, 256 Service and Parts Manual	English	Multiple	13 Mar, 2024	29.0 MB	.pdf
User guide	PVG 48 proportional valve group technical information	Japanese	Japan	14 Nov, 2024	9.8 MB	.pdf
User guide	PVG 48 proportional valve group technical information	English	Multiple	21 Mar, 2024	6.5 MB	.pdf
User guide	PVG 48 Proportional Valve Group Technical Information	Japanese	Multiple	25 Apr, 2024	5.5 MB	.pdf

Related products

PLUS+1® Service Tool

The PLUS+1^® Service Tool is a free application for flashing PLUS+1^® hardware, adjusting parameters, and running machine diagnostic applications.

PLUS+1® GUIDE

PLUS+1^® GUIDE is your gateway to the Danfoss world of advanced mobile machine control.

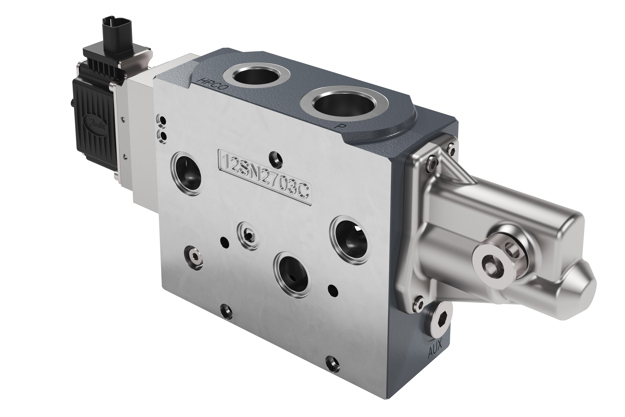

PVSKM 256

The PVSKM full flow cut-off valve is developed to comply with functional safety standards. PVSKM is a cost effective way to implement a redundant hydraulic architecture for category 2 safety functions.

PVSK

PVSK modules are ideal for applications that have specific functionality or safety requirements.

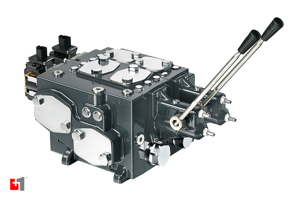

PVG 128/256 proportional valves
