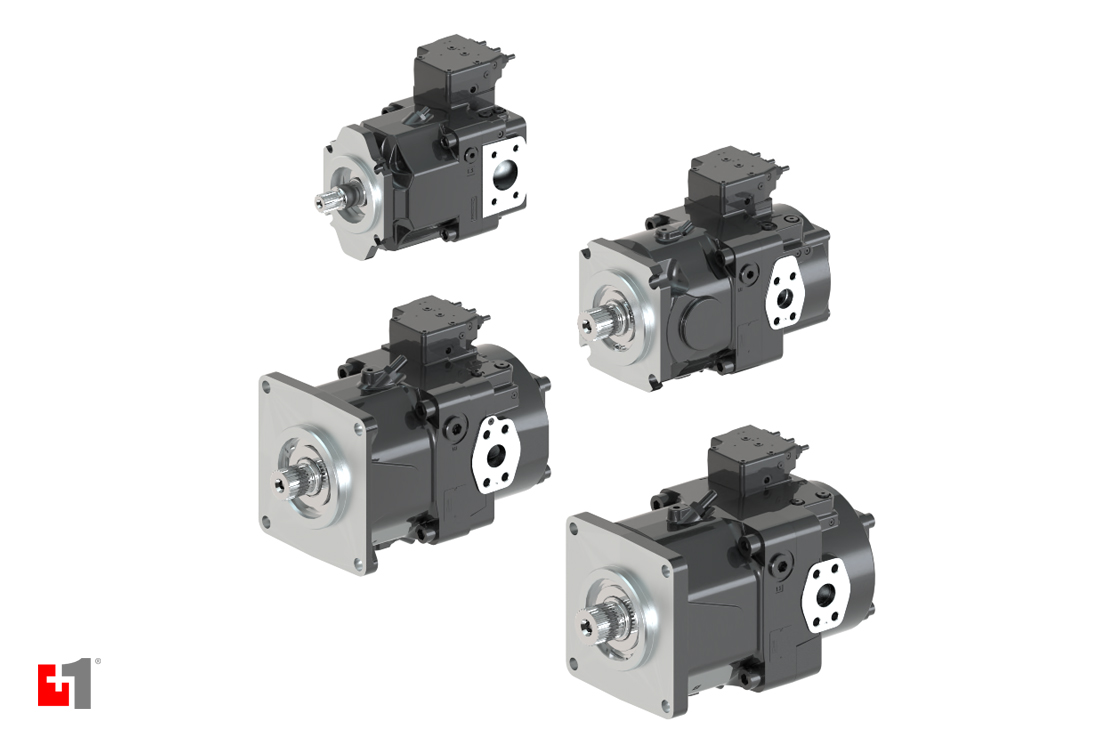

Danfoss D1P open circuit high power axial piston pumps are designed to fit a flexible range of applications. Robust, reliable and equipped with a broad range of controls, with D1P you gain efficiency and optimization even in the harshest of conditions. Choose a pump that makes a difference and join us in pursuing global change for better.

The D1P pump family meets the highest pressure and flow needs of new machine applications requiring variable displacement open-circuit flow. Designed for heavy-duty mobile and industrial applications in the high-pressure range (up to 350 bar), the D1P family is available with a variety of control options and is robust for harsh conditions.

Optimized system design

When you equip your machine with D1P pumps, choosing valves and controls that are made to work together can truly optimize your machine. D1P pumps are PLUS+1® compliant and our electronic controls are ready to go with plug and play software using the Danfoss PLUS+1® GUIDE programming environnent. They are also the perfect match for PVG spool valves, providing efficient and precise machine movement across a wide range of flow requirements.



A broad portfolio for maximum control

D1P pumps can be equipped with a broad range of control options. In addition to a full range of standard pressure compensation and load sensing controls, we offer many controls for today’s electrified systems needing electronic actuation or power management.

Mechanical Torque Control (MTC) is ideal for applications needing cost effective torque limitation without implementing complex electronic control architectures. Help improve machine productivity by eliminating engine stalls in high demand conditions with MTC controls.

Electronic Displacement Control (EDC) is an excellent choice for simple and robust control of pump flow to machine functions. This control can reduce dependency on intermediate valves for motor applications, provide dynamic maximum displacement limitation for auxiliary flow functions, or provide power management for overload protection.

Robust design results in robust performance

The fundamental design of D1P products raises the standard of performance. D1P pumps use angled piston bores and spherical valve plates for high efficiency performance in the rotating group. Combined with available integral vane boost pumps, speed ratings are maximized, and a greater range of adverse inlet conditions can be tolerated.  Equipped standard with low friction roller-element cradle bearings, durability is increased versus traditional sliding frictional bearings. For the most extreme market conditions, ATEX certifications are available on mechanical control configurations.

Choose a pump that makes a difference

Robust, reliable and equipped with a broad range of controls, with D1P you gain efficiency and optimization even in the harshest of conditions.

Applications

Marine, oil and gas

The marine, oil and gas industry faces some of the harshest working environments. At Danfoss, we are committed to improving efficiency, safety and reliability while reducing cost of ownership of your applications. Danfoss offers a large range of solutions for the marine, oil and gas industry. With the addition of the D1 pump to our High Power Open Circuit portfolio, we are able to provide more options for your toughest applications. The D1 pump can be paired with our High Flow PVG 128/256 valves and other Danfoss products to meet the needs of your hydraulic system.

Drilling

Drilling

The growing world population and urbanization creates an ongoing demand for more infrastructure and mined resources. Danfoss offers a large range of solutions for mining equipment, even in some of the most challenging production environments. With the addition of the D1 pump to our Open Circuit portfolio, we are able to provide more options for the toughest mining applications. The D1 pump can be paired with the PVG valves, along with other Danfoss products to meet the needs of your machine.

Forestry

Robustness and reliability are a must for forestry equipment. Danfoss offers a large range of solutions for forestry machines, even in some of the most challenging working conditions. With the addition of the D1 pump to our Open Circuit portfolio, we are able to provide more options for the toughest forestry applications. The D1 pump can be paired with PVG valves and other Danfoss products to meet the needs of your machine.

Concrete pump

Concrete pump

With the increasing need for more infrastructure, construction projects are consistently becoming more complex, which require machines that can perform with maximum efficiency and safety. Danfoss offers a large range of solutions for construction equipment, even in some of the most demanding conditions. With the addition of the D1 pump to our Open Circuit portfolio, we are able to provide more options for the toughest construction applications. The D1 pump can be paired with PVG valves and other Danfoss products to meet the needs of your machine.

Documents

Documents
Type Name Language Valid for Updated Download File type
User guide D1 65–260cc High Power Open Circuit Pumps Technical Information Chinese (CN) China 28 Sep, 2021 8.9 MB .pdf
Brochure D1 High Power Open Circuit Pump Brochure Chinese (CN) China 28 Aug, 2023 1.6 MB .pdf
Data sheet D1 High Power Open Circuit Pumps Data Sheet Chinese (CN) China 30 Apr, 2021 1.2 MB .pdf
Data sheet D1 High Power Open Circuit Pumps Data Sheet Chinese (CN) Multiple 30 Apr, 2021 897.6 KB .pdf
Data sheet D1 High Power Open Circuit Pumps Data Sheet English Multiple 06 Sep, 2024 1.0 MB .pdf
User guide D1 High Power Open Circuit Pumps Technical Information English Multiple 23 Oct, 2024 11.2 MB .pdf
Brochure D1 Pump Marine, Oil and Gas Brochure English Multiple 09 Jun, 2023 3.8 MB .pdf
Data sheet D1P High Power Open Circuit Pumps 160cc English China 23 May, 2022 598.0 KB .pdf
Brochure D1P open circuit high power axial piston pumps brochure English Multiple 30 Oct, 2024 3.1 MB .pdf
