Power control for vehicles, machines and marine applications

Danfoss Editron electric drivetrains are specially designed for controlling the flow of hybrid and electric power in vehicle, machine and marine applications. Converters are specifically developed for electric or hybrid drive trains in mobile work machines, buses, harbor cranes or marine vessels.

Converters with power range 100-1,000 kW

EC-C converter is available as two variants suitable for two different system voltage levels as EC-C1200-450 and as EC-C1700B-420. The EC-C1200-450 is meant for up to 850VDC/500VAC voltage levels and the EC-C1700B-420 is meant for up to 1200VDC/690VAC voltage levels. The EC-C converters are built with components that can handle double the number of load cycles. Which is compared to components used in standard industrial inverters. The standard lifespan of EC-C products is up to 20 years. The high-performance vector control of Danfoss EC-C drives the motors accurately and smoothly. It can control induction motors (IM) and permanent magnet (PM) motors.

Additionally, Danfoss reluctance-assisted permanent magnet (SRPM) motors with or without sensors. The EC-C can be selected with different software options. This allows EC-C1200-450 to work as active front end, microgrid, motor control (inverter) and as a DC-to-DC converter when combined with EC-LTS1200-410. The EC-C1700B-420 similarly supports active front end, microgrid and motor control (inverter) but not DC-to-DC converter

Danfoss Editron

Danfoss Editron

Danfoss Editron specializes in hybrid and electric powertrain systems for off-highway and marine markets, as a business division of Danfoss. It develops and manufactures high-performance EDITRON power systems for heavy duty vehicles, machines and marine vessels. These are based on its unique synchronous reluctance assisted permanent magnet (SRPM) technology.

Product range

Current up to 350 Arms continuous as AC-converter and up to 400 ADC continuous as a DC/DC-converter.

The EC-C1200-450 is a heavy-duty converter. It is specifically developed for electric or hybrid drive trains in mobile work machines, buses or marine vessels. Our electric converter can act as motor inverter, active front end, DC/DC-converter, or to create a microgrid.

Features and benefits

  • Extremely compact design weighing 14 kg
  • High enclosure class IP67, sealed from moisture and dust
  • Ambient temperature up to +105°C and down to -40°C
  • Coolant temperature up to +65°C
  • Robust design withstanding high levels of mechanical vibrations and shocks
  • Designed specifically for the highly cyclical loads typical in heavy mobile work machines
EC-C1200-450

Current up to 210 Arms continuous as AC-converter.

The EC-C1700B-420 is a heavy-duty converter. It is specifically developed for electric or hybrid drive trains in mobile work machines, harbor cranes or marine vessels. Our electric converter can act as motor inverter, active front end or to create a microgrid.


 Features and benefits

  • Extremely compact design weighing 14 kg
  • High enclosure class IP67, sealed from moisture and dust
  • Ambient temperature up to +85°C and down to -40°C
  • Coolant temperature up to +65°C
  • Robust design withstanding high levels of mechanical vibrations and shocks
  • Designed specifically for the highly cyclical loads typical in heavy mobile work machines
EC-C1700B-420

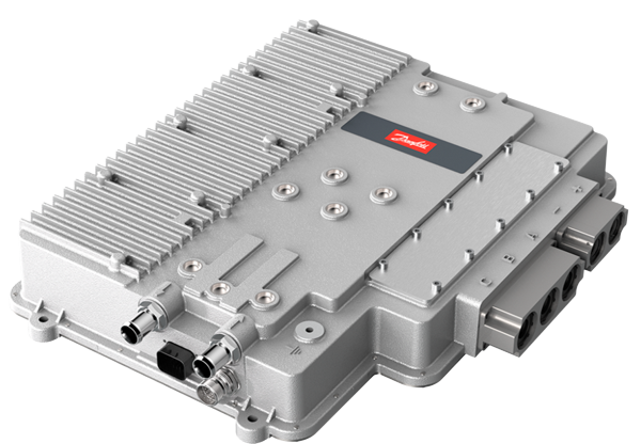

The EC-C1200-1200 is a heavy-duty converter. It is specifically developed for commercial electric vehicle applications. Operating voltage input range for EC-C1200F-1200-440 is 250-440 VDC and for EC-C1200F-1200-750 is 450-750 VDC.


 Features and benefits

  • Extremely compact design weighing 19 kg
  • Operating voltage input ranges are 250-440 and 450-750 VDC
  • High enclosure class IP67, sealed from moisture and dust
  • Maximum ambient temperature +60°C
  • Robust design withstanding high levels of mechanical vibrations and shocks

*EC-C1200F-1200 converter is only running with eDrivetrain and eTraction system.

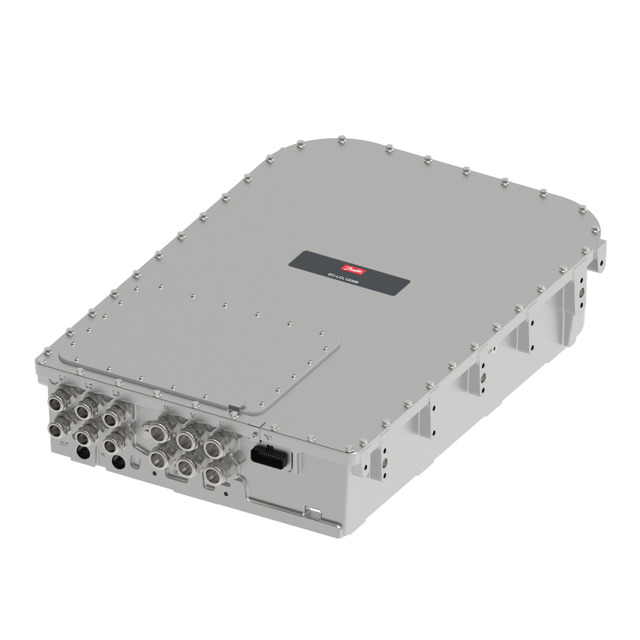

The EC-LCL1200B-350 is a heavy-duty LCl-filter designed as an accessory for EC-C1200-450-L inverter.
Combined with EC-C1200-450-L, it can act as Active Front End (AFE) by taking power from grid and feeding
power back to grid.

Features and benefits

  • Compact design including all filter components rated for 300 Arms and 250kVA
  • High enclosure class IP6K9K and IP67, sealed from moisture and dust
  • Ambient temperature up to +85°C and down to -40°C
  • Coolant temperature up to +65°C
  • Robust design withstanding high levels of mechanical vibrations and shocks

Documents

Documents
Type Name Language Valid for Updated Download File type
Data sheet EC-C1200-450 electric converter data sheet Chinese (CN) Multiple 09 Feb, 2021 2.0 MB .pdf
Data sheet EC-C1200-450 electric converter data sheet English Multiple 04 Dec, 2023 737.9 KB .pdf
User guide EC-C1200-450 electric converter user guide English Multiple 19 Aug, 2024 19.4 MB .pdf
User guide EC-C1200-450 electric converter user guide German Multiple 30 Aug, 2021 15.1 MB .pdf
User guide EC-C1200-450 electric converter user guide Chinese (CN) Multiple 30 Aug, 2021 15.4 MB .pdf
User guide EC-C1200-450 electric converter user guide Portuguese Multiple 30 Aug, 2021 15.1 MB .pdf
Data sheet EC-C1700B-420 electric converter data sheet English Multiple 04 Dec, 2023 594.6 KB .pdf
Data sheet EC-C1700B-420 electric converter data sheet Chinese (CN) Multiple 29 Aug, 2023 835.0 KB .pdf
User guide EC-C1700B-420 electric converter user guide English Multiple 19 Aug, 2024 19.4 MB .pdf
Data sheet EC-LCL1200B-350 heavy duty LCL-filter data sheet English Multiple 30 Sep, 2024 545.3 KB .pdf
User guide EC-LCL1200B-350 heavy duty LCL-filter user guide English Multiple 30 Sep, 2024 13.8 MB .pdf

Related products

  • if (isSmallPicture) { High voltage multipurpose motors; } else if (isBigColumns) { High voltage multipurpose motors } else { High voltage multipurpose motors }
    High voltage multipurpose motors

    A wide range of electric machines allows to select the exact machine type to fit the required torque, speed or power. Highest efficiency enabling higher operating ranges in hybrid- or full-electric applications. All electric machines are designed for the harsh operating conditions in work machines, commercial vehicles and marine applications.

  • if (isSmallPicture) { ePowerpack; } else if (isBigColumns) { ePowerpack } else { ePowerpack }
    ePowerpack

    ePowerpack consists of a high-performance, interior permanent magnet motor and a high-power, air-cooled converter with a full-featured digital signal processor.

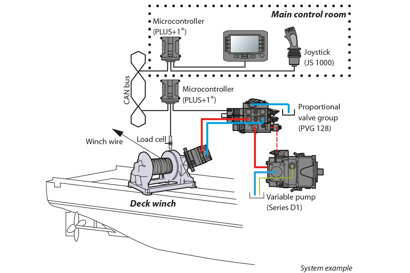

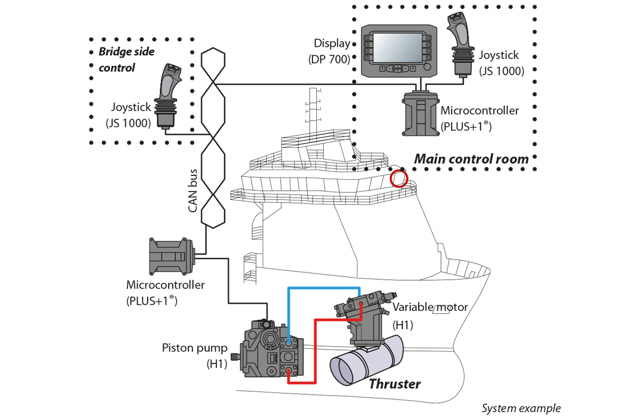

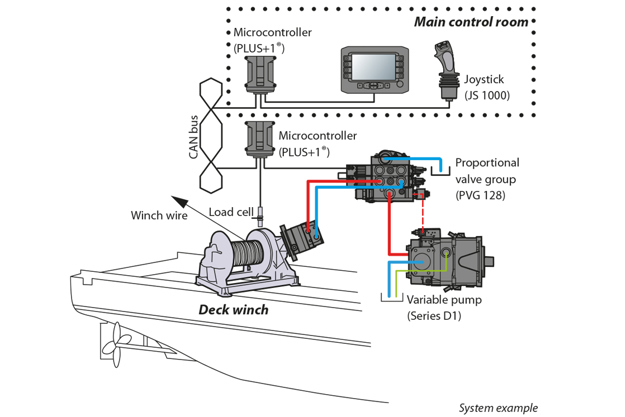

Related applications

Case stories

News

  • if (isSmallPicture) { ; } else if (isBigColumns) { } else { }
    Danfoss Power Solutions launches Editron EM-PMI375 690-volt electric motor, creating a mobile-grade solution for higher voltage applications
    Tuesday, December 3, 2024

    Based on synchronous reluctance assisted permanent magnet technology, the EM-PMI375 electric motor is designed to work with the Editron EC-C1700B inverter, offering a system solution for 690-V AC and 1,050-V DC applications such as winches, cranes, marine vessels, and mining and material handling machinery.

  • if (isSmallPicture) { ; } else if (isBigColumns) { } else { }

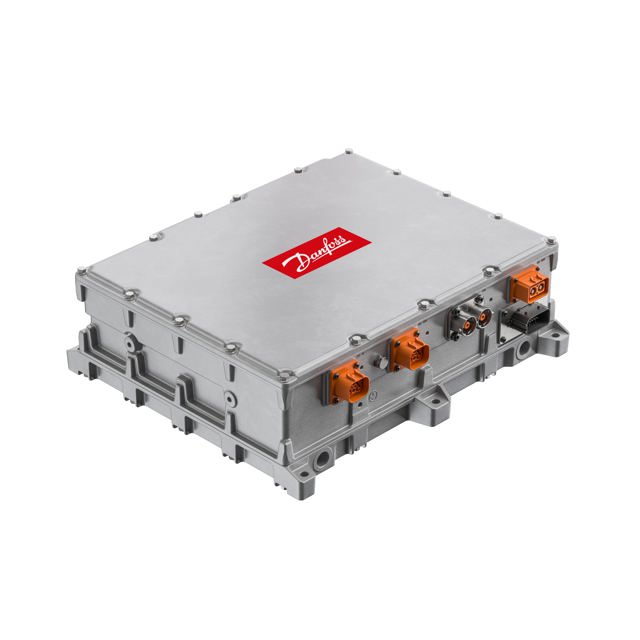

    Danfoss Power Solutions’ ED3 onboard charger and DVG 60/100 awarded Top New Products recognition
