Danfoss editron specializes in hybrid and electric powertrain systems for off-highway and marine markets. A business division of Danfoss, it develops and manufactures high-performance, EDITRON power systems for heavy duty vehicles, machines and marine vessels, based on its unique synchronous reluctance assisted permanent magnet (SRPM) technology.
Learn more about Danfoss editron
Product range

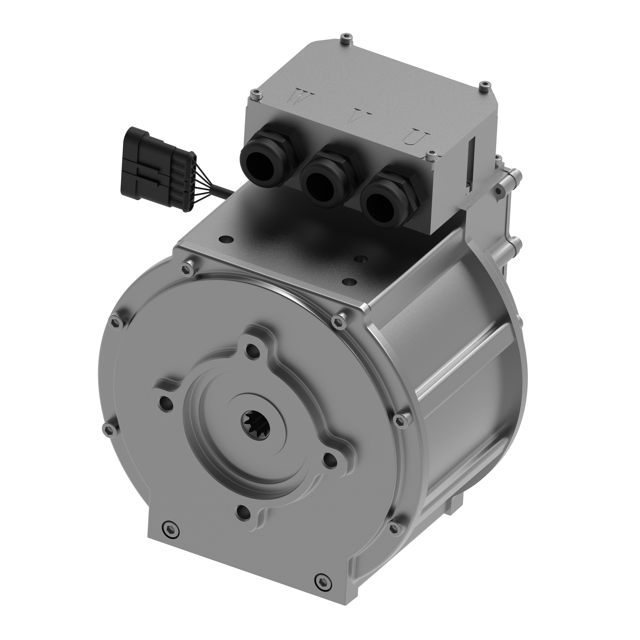

EM-PMI180-T90-4000
Power range from 7 kW to 12 kW, nominal voltage 48 VDC, and maximum speed up to 4000 rpm.
Our electric machines have been specifically developed for electric or hybrid drive trains in mobile work machines. Designed for demanding applications, our machines are smaller, lighter and more efficient than conventional products on the market.
Â
Features and benefits
- Extremely compact and robust structure: motor platform dimension 180mm
- Hairpin motor inside
- Highest efficiency on the market
- SIN/COS speed sensor
- IP67 enclosure class
- The motor is designed to meet pump drive applications

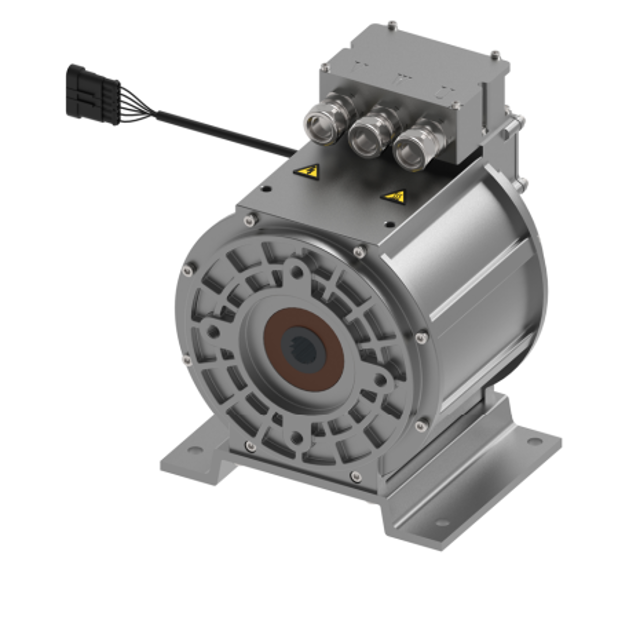

EM-PMI200-T20070
Coming soon!
Rated Power range from 16 kW to 30 kW, nominal voltage 80 VDC, and maximum speed up to 4000 rpm.
Our electric machines have been specifically developed for electric or hybrid drive trains in mobile work machines. Designed for demanding applications, our machines are smaller, lighter and more efficient than conventional products on the market.
Features and benefits
- Permanent Magnet Synchronous Motor (PMSM) with Flat Wire
- Winding
- Hairpin motor technology
- Motor is designed to meet the pump drive applications
- Extremely compact and robust structure: motor platform dimension 200 mm
- IP67 enclosure class
- Complies with CE requirements

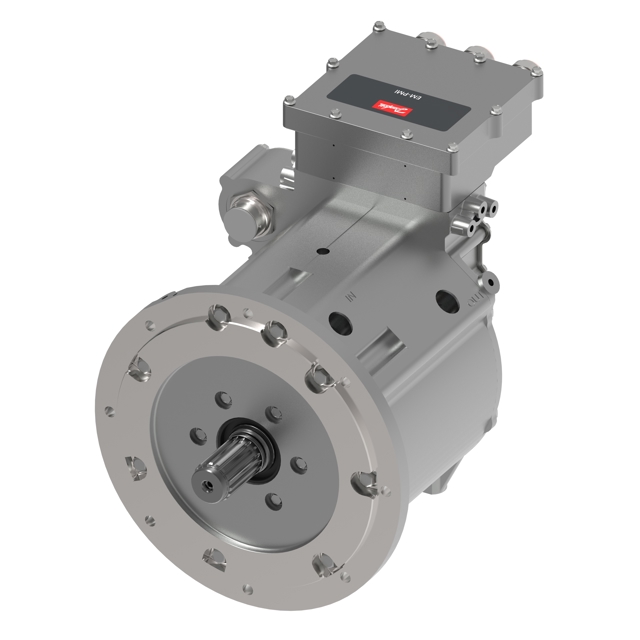

EM-PMI220-T130
Coming soon!
Rated power is 61.3 kW and Peak 100 kW, nominal voltage 700 V, and maximum speed up to 9000 rpm.
Our electric machines have been specifically developed for electric or hybrid drive trains in mobile work machines. Designed for demanding applications, our machines are smaller, lighter and more efficient than conventional products on the market.
Features and benefits
- Extremely compact and robust structure: motor platform dimension 220mm
- Highest efficiency on the market max 96%
- IP6K9K enclosure class
- The motor functions as traction motor, ePump motor, or generator

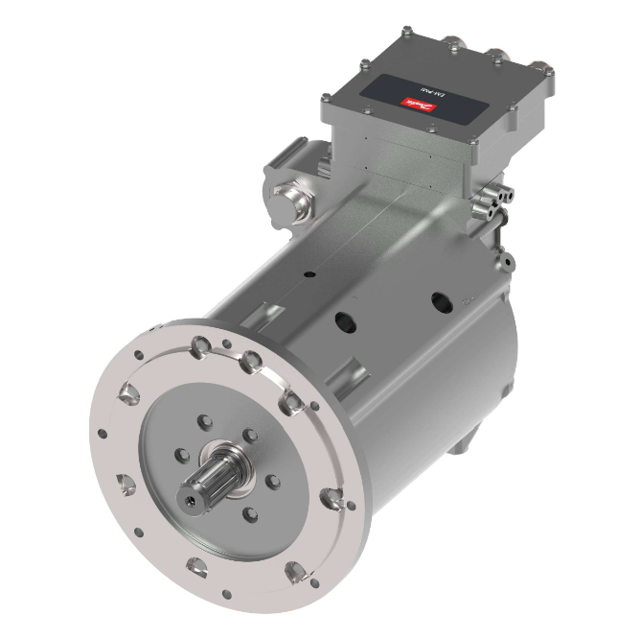

EM-PMI220-T300
Coming soon!
Rated power is 131.9 kW and Peak is 190 kW, nominal voltage 700 V, and maximum speed up to 8000 rpm.
Our electric machines have been specifically developed for electric or hybrid drive trains in mobile work machines. Designed for demanding applications, our machines are smaller, lighter and more efficient than conventional products on the market.
Features and benefits
- Extremely compact and robust structure: motor platform dimension 268mm
- Highest efficiency on the market max. 96%
- IP6K9K enclosure class
- The motor functions as traction motor, ePump motor, or generator

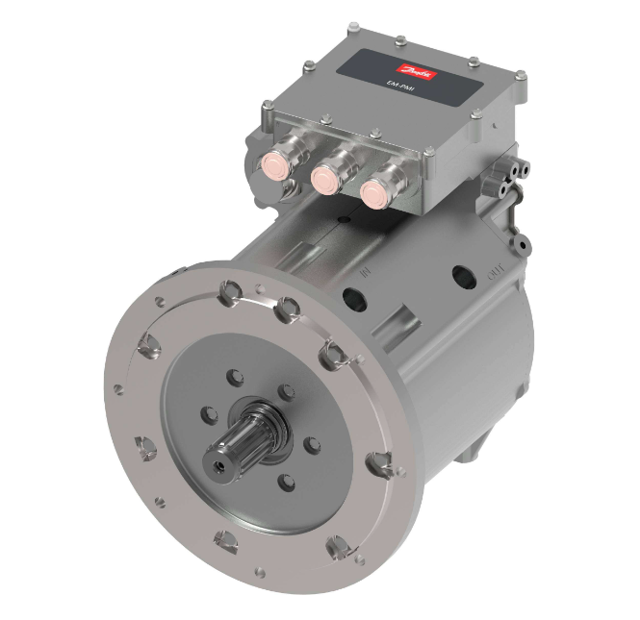

EM-PMI220-T180
Coming soon!
Rated power is 85.2 kW and Peak is 142 kW, nominal voltage 700 V, and maximum speed up to 8800 rpm.
Our electric machines have been specifically developed for electric or hybrid drive trains in mobile work machines. Designed for demanding applications, our machines are smaller, lighter and more efficient than conventional products on the market.
Features and benefits
- Extremely compact and robust structure: motor platform dimension 220mm
- Highest efficiency on the market max. 96%
- IP6K9K enclosure class
- The motor functions as traction motor, ePump motor or generator

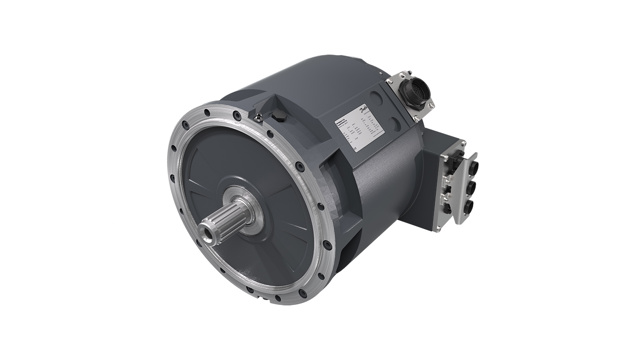

EM-PMI240-T180
Power range from 48 kW to 114 kW, nominal speed range from 2200 rpm to 8800 rpm and maximum speed up to 9200 rpm.
Our electric machines have been specifically developed for electric or hybrid drive trains in mobile work machines, buses or marine vessels. Designed for demanding applications, our machines are smaller, lighter and more efficient than conventional products on the market.Â
Features and benefitsÂ
- Extremely compact and robust structure: weight 85kg
- Highest efficiency (throughout the operating range) on the market
- Low coolant flow requirements
- Coolant temperature up to +65°C
- IP65 enclosure class (IP67 option)
- The most common connection interface for S45 series open circuit hydraulic pumps
- Grease lubricated bearings as a standard
- HV cable interface done with connectorÂ

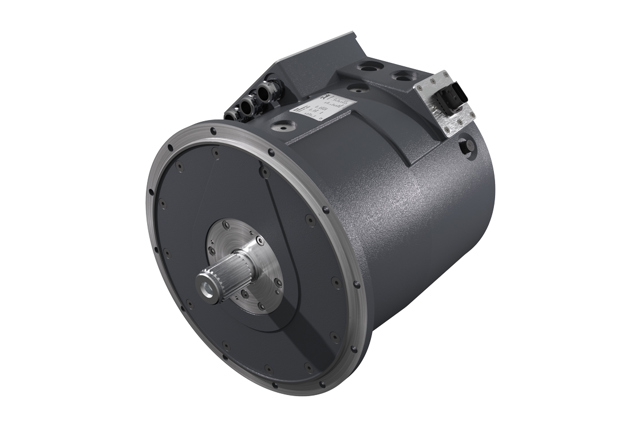

EM-PMI300-T310
Power range from 41 kW to 94 kW, speed range from 1100 rpm up to 4000 rpm.
Our electric machines have been specifically developed for electric or hybrid drive trains in mobile work machines, buses or marine vessels. Designed for demanding applications, our machines are smaller, lighter and more efficient than conventional products on the market.
Features and benefits
- Extremely compact and robust structure
- Highest efficiency (throughout the operating range) on the market
- Low coolant flow requirements
- Coolant temperature up to +65°C
- IP65Â enclosure class

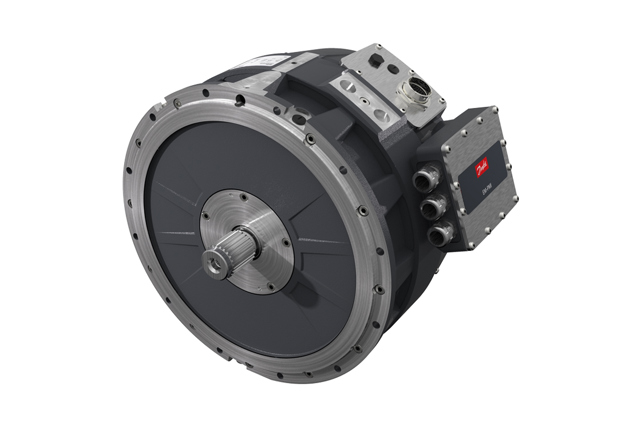

EM-PMI375-T200
Power range up to 63 kW and speed range up to 4000 rpm.
Our electric machines have been specifically developed for electric or hybrid drive trains in mobile work machines, buses or marine vessels. Designed for demanding applications, our machines are smaller, lighter and more efficient than conventional products on the market.
Features and benefits
- Extremely compact and robust structure
- Highest efficiency (throughout the operating range) on the market
- Low coolant flow requirements
- Coolant temperature up to +65°C
- Up to IP67 enclosure class
NOW available also in 690VAC

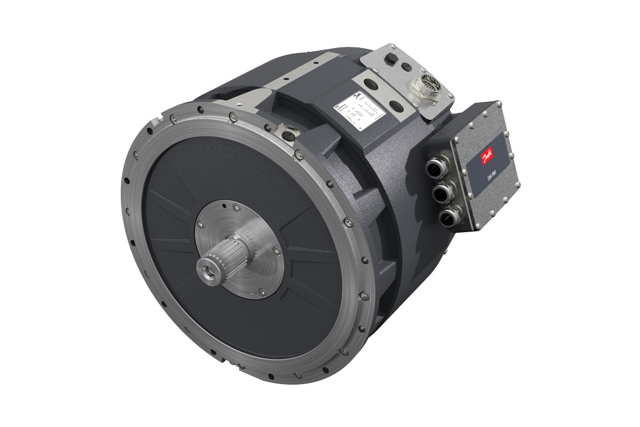

EM-PMI375-T500
Power range from 66 kW to 158 kW, speed range from 1100 rpm up to 4000 rpm.
Our electric machines have been specifically developed for electric or hybrid drive trains in mobile work machines, buses or marine vessels. Designed for demanding applications, our machines are smaller, lighter and more efficient than conventional products on the market.
Features and benefits
- Extremely compact and robust structure
- Highest efficiency (throughout the operating range) on the market
- Low coolant flow requirements
- Coolant temperature up to +65°C
- Up to IP67 enclosure class
NOW available also in 690VAC

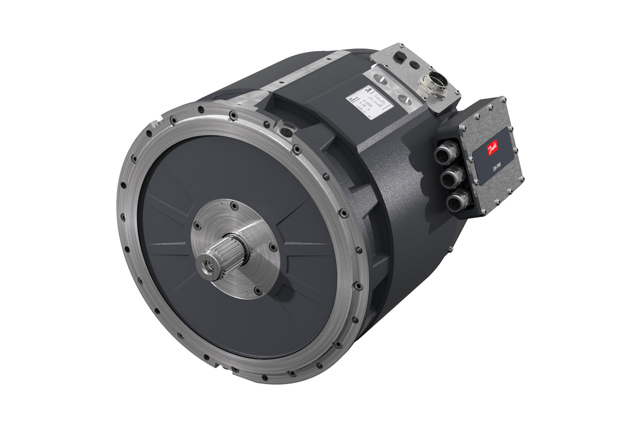

EM-PMI375-T800
Power range from 85 kW to 251 kW, speed range from 900 rpm up to 4000 rpm.
Our electric machines have been specifically developed for electric or hybrid drive trains in mobile work machines, buses or marine vessels. Designed for demanding applications, our machines are smaller, lighter and more efficient than conventional products on the market.
Features and benefits
- Extremely compact and robust structure
- Highest efficiency (throughout the operating range) on the market
- Low coolant flow requirements
- Coolant temperature up to +65°C
- Up to IP67 enclosure class
NOW available also in 690VAC

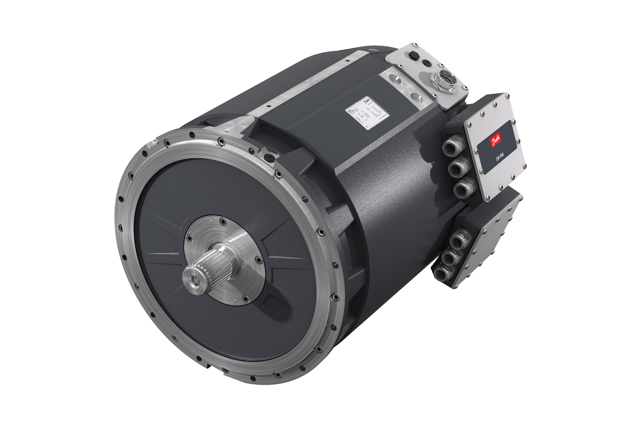

EM-PMI375-T1100
Power ranges from 177 kW to 296 kW, speed range from 1200 rpm up to 4000 rpm.
Our electric machines have been specifically developed for electric or hybrid drive trains in mobile work machines, buses or marine vessels. Designed for demanding applications, our machines are smaller, lighter and more efficient than conventional products on the market.
Features and benefits
- Extremely compact and robust structure
- Highest efficiency (throughout the operating range) on the market
- Low coolant flow requirements
- Coolant temperature up to +65°C
- Up to IP67 enclosure class
NOW available also in 690VAC

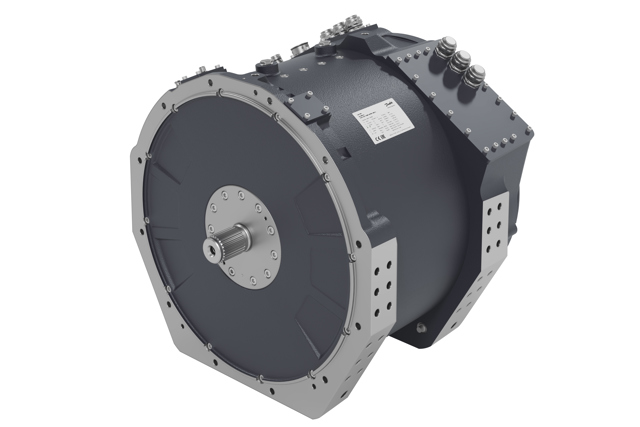

EM-PMI540B-T1500
Power range from 119 kW to 332 kW, speed range from 0 to 4000 rpm.
Our electric machines have been specifically developed for electric or hybrid drive trains in mobile work machines, buses or marine vessels. Designed for demanding applications, our machines are smaller, lighter and more efficient than conventional products on the market.
Features and benefits
- Extremely compact and robust structure
- Highest efficiency (throughout the operating range) on the market
- Low coolant flow requirements
- Coolant temperature up to +65°C
- IP67 enclosure class
- Altitude up to 4000 m
- Through-shaft option available

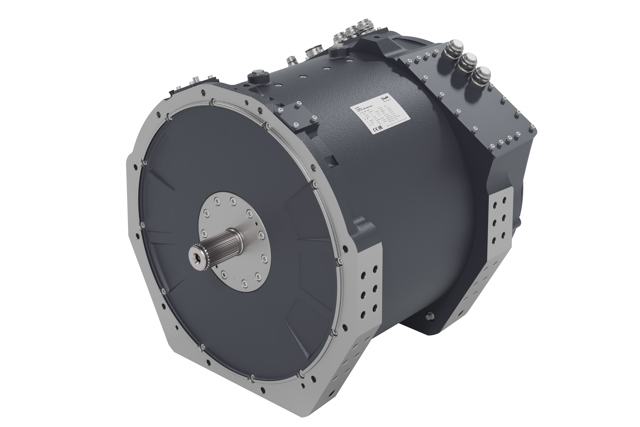

EM-PMI540B-T2000
Power range from 180 kW to 422 kW, speed range from 0 to 4000 rpm.
Our electric machines have been specifically developed for electric or hybrid drive trains in mobile work machines, buses or marine vessels. Designed for demanding applications, our machines are smaller, lighter and more efficient than conventional products on the market.
Features and benefits
- Extremely compact and robust structure
- Highest efficiency (throughout the operating range) on the market
- Low coolant flow requirements
- Coolant temperature up to +65°C
- IP67 enclosure class
- Altitude up to 4000 m
- Through-shaft option available

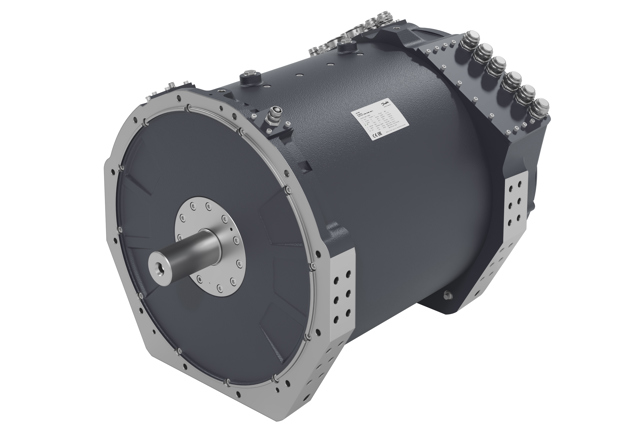

EM-PMI540B-T3000
Power range from 395 kW to 480 kW, speed range from 0 to 4000 rpm.
Our electric machines have been specifically developed for electric or hybrid drive trains in mobile work machines, buses or marine vessels. Designed for demanding applications, our machines are smaller, lighter and more efficient than conventional products on the market.
Features and benefits
- Extremely compact and robust structure
- Highest efficiency (throughout the operating range) on the market
- Low coolant flow requirements
- Coolant temperature up to +65°C
- IP67 enclosure class
- Altitude up to 4000 m
- Spline and through-shaft options available

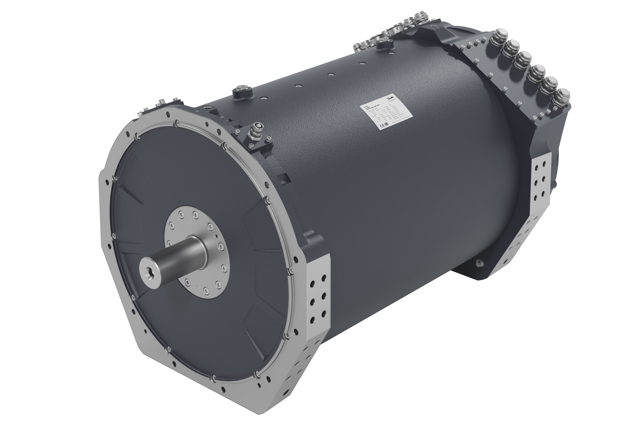

EM-PMI540B- T4000
Power range from 284 kW to 896 kW, speed range from 0 to 3100 rpm.
Our electric machines have been specifically developed for electric or hybrid drive trains in mobile work machines, buses or marine vessels. Designed for demanding applications, our machines are smaller, lighter and more efficient than conventional products on the market.
Features and benefits
- Extremely compact and robust structure
- Highest efficiency (throughout the operating range) on the market
- Low coolant flow requirements
- Coolant temperature up to +65°C
- IP67 enclosure class
- Altitude up to 4000 m
- Spline and through-shaft options available

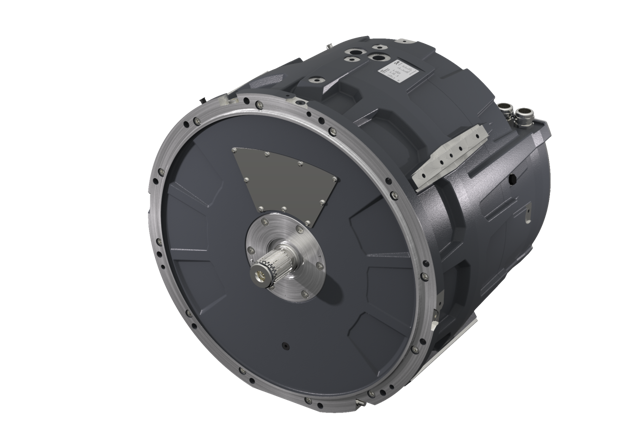

EM-PMI540-T1500
Power range from 228 kW to 332 kW, speed range from 0 to 4000 rpm.
Designed for demanding applications, our machines are smaller, lighter and more efficient than conventional products on the market.Â
Features and benefits
- Extremely compact and robust structure
- Highest efficiency (throughout the operating range) on the market
- Low coolant flow requirements
- Coolant temperature up to +65°C
- IP67 enclosure class
- Multiple mounting possibilities

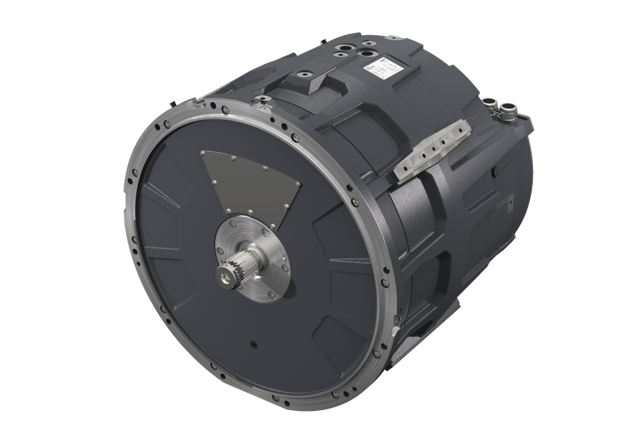

EM-PMI540-T2000
Power range from 180 kW to 422 kW, speed range from 0 to 4000 rpm.
Designed for demanding applications, our machines are smaller, lighter and more efficient than conventional products on the market.
Features and benefits
- Extremely compact and robust structure
- Highest efficiency (throughout the operating range) on the market
- Low coolant flow requirements
- Coolant temperature up to +65°C
- IP67 enclosure class
- Multiple mounting possibilities

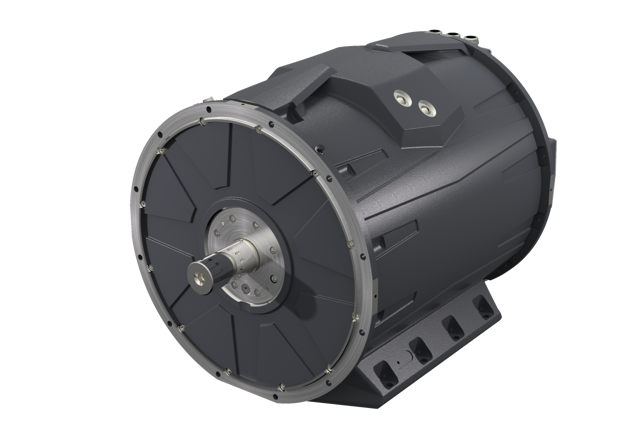

EM-PMI540-T3000
Power range from 395 kW to 480 kW, speed range from 0 to 4000 rpm.
Designed for demanding applications, our machines are smaller, lighter and more efficient than conventional products on the market.
Features and benefits
- Extremely compact and robust structure
- Highest efficiency (throughout the operating range) on the market
- Low coolant flow requirements
- Coolant temperature up to +65°C
- IP67 enclosure class
- Multiple mounting possibilities

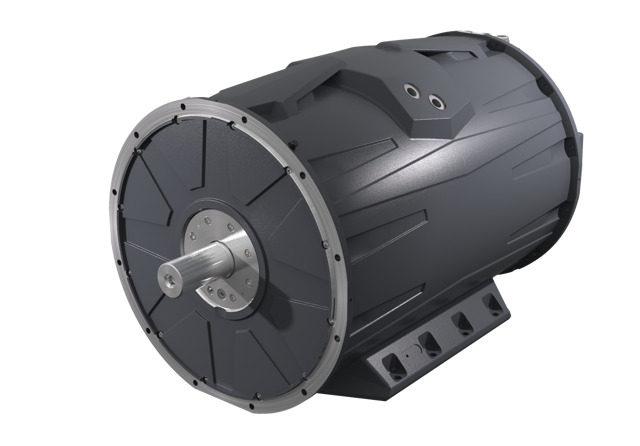

EM-PMI540-T4000
Power range from 531 kW to 701 kW, speed range from 0 to 2000 rpm.
Designed for demanding applications, our machines are smaller, lighter and more efficient than conventional products on the market.
Features and benefits
- Extremely compact and robust structure
- Highest efficiency (throughout the operating range) on the market
- Low coolant flow requirements
- Coolant temperature up to +65°C
- IP67 enclosure class
- Multiple mounting possibilities
