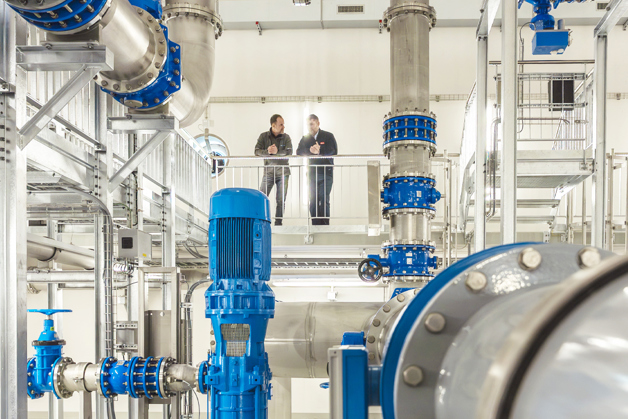

Achieve peak performance in water management
In the world of water management, control and efficiency are paramount. The iC7-Aqua drive is engineered to provide precise control over your pump systems, leading to significant energy savings, reduced mechanical stress, and improved system performance. Whether you are managing municipal water distribution, treating wastewater, performing desalination or handling industrial water purification, the iC7-Aqua is your trusted partner for optimized operations. Your ambition. Our drive.
How does a VFD work on a pump?
A variable frequency drive (VFD) works by controlling the speed of a pump. Instead of running the pump at a constant full speed, the VFD adjusts the speed of the pump to maintain flow or pressure. By meeting actual system demand, VFDs for pumps can:
- Save significant energy: Reducing pump speed by just 20% can lead to energy savings of up to 50%
- Reduce mechanical wear: Soft starting and stopping reduces water hammer and mechanical stress on pipes, valves, and the pump itself
- Improve process control: Maintain constant pressure, flow, or water level with high precision
Supply voltage and power range
- Standard drives: 3 x 380-480 V AC…0.37-710 kW (0.5-1000 hp)
- ULH drives: 380-480 V AC.... 22-160 kW (30-250 hp)
Find the drive to fit your application

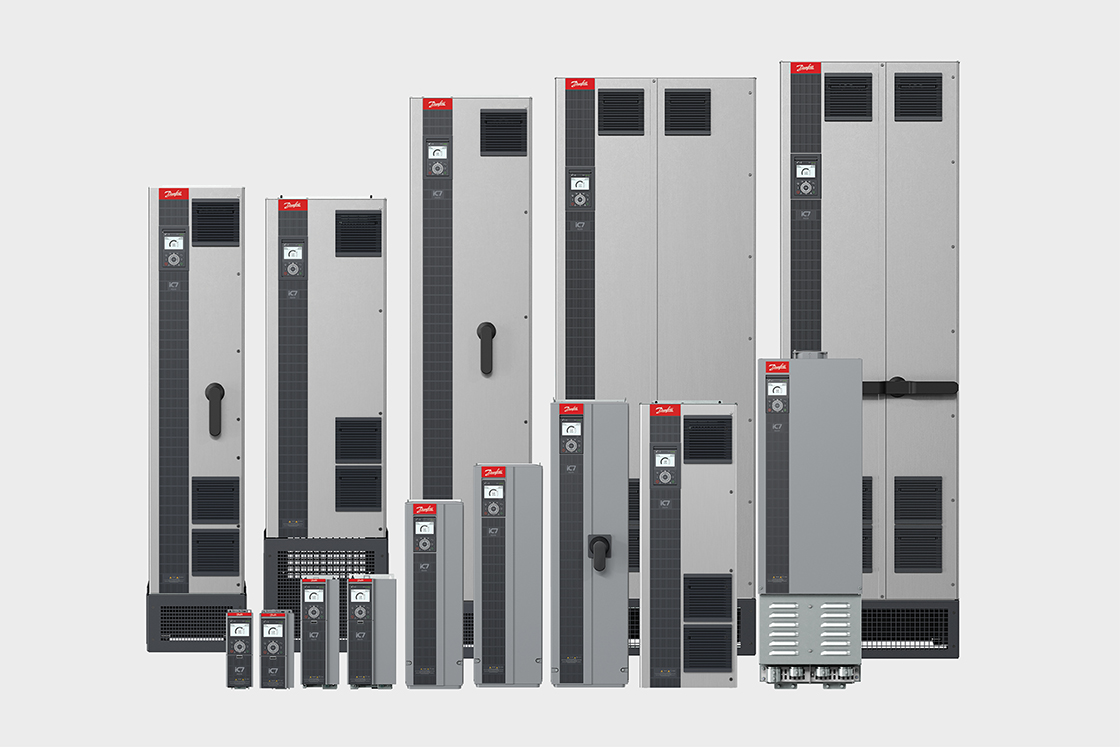

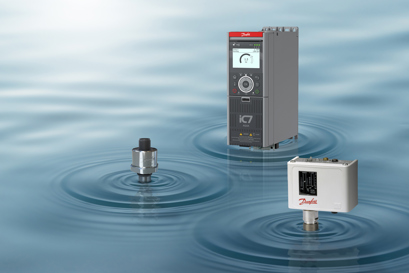

The standard iC7-Aqua frequency converter is packed with features designed to protect your equipment, save energy, and simplify commissioning and maintenance.
For applications with sensitive power grids or strict harmonic distortion limits, the iC7-Aqua ULH (ultra low harmonic) variant is the ultimate solution. These ultra low-harmonic drives ensure a clean power supply without compromising on performance.

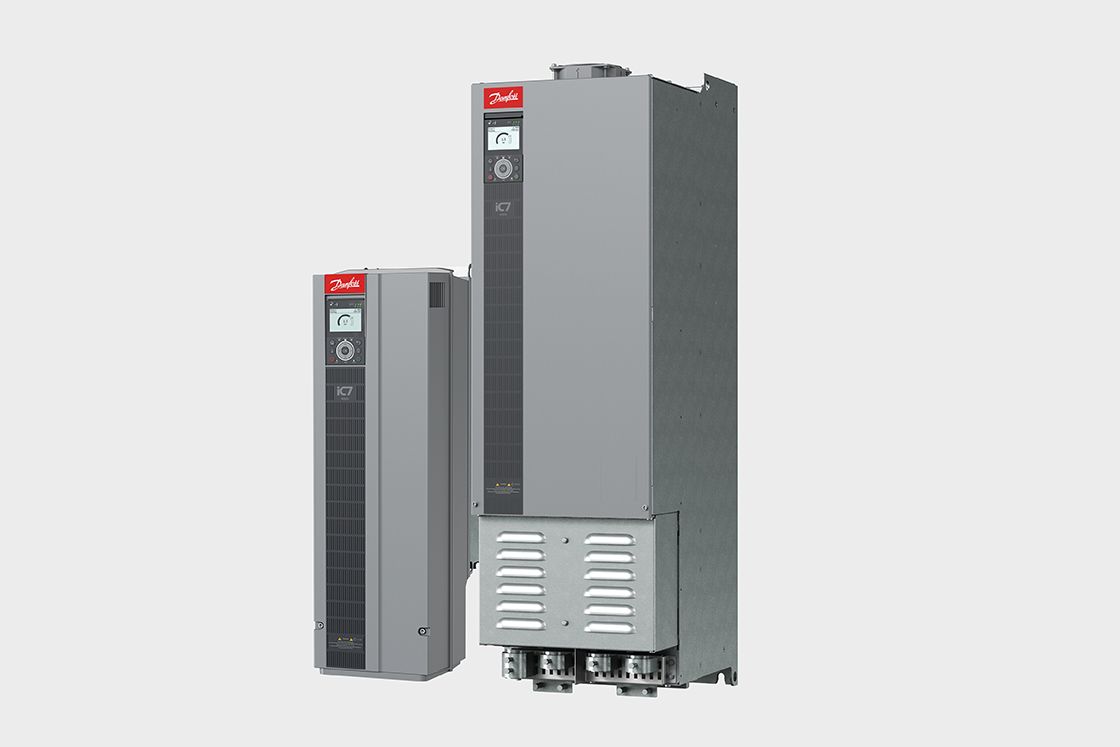

Manage harmonics with ULH drives
Discover how our ultra low-harmonic variants can help you stay compliant, cost effectively.
Read the fact sheet
Features and benefits
The iC7-Aqua ULH variant is a leading ultra low-harmonic drive, ensuring compliance and minimizing electrical disturbances. This makes it one of the most effective harmonic mitigation VFDs for water applications available.
With market-leading hardware-based protection, your VFD for pumps is safe from unauthorized access. A crypto chip ensures end-to-end encrypted data transfer.
Dedicated pump and application protection
-
Dry run detection: Protects your pump from damage by detecting when it is running without water
-
End-of-curve detection: Prevents the pump from operating outside its recommended range, protecting against leakage
-
Pipe fill mode and check valve ramp: Eliminates water hammer and pressure surges, protecting pipes and reducing the need for external soft-close valves
-
Condition monitoring: An integrated protection function continuously monitors motor stator winding, vibration, and load envelope to give you early warning of issues. Early warning facilitates timely action to prevent downtime
Energy and cost savings
-
Flow compensation and sleep mode: Intelligently adjusts operation during periods of low or no demand, to save energy
-
Multi-pump controller: Manages multi-pump systems for optimal efficiency and uptime, reducing equipment costs
-
Automatic Energy Optimization (AEO) and Automatic Motor Adaptation (AMA): Enhanced efficiency at part load with improved algorithms
Intuitive and easy to use: Simplify commissioning and operation
-
The graphical control panel features a large display with intuitive menus and setup assistants for easy commissioning.
-
Easy installation with pluggable terminals and ample cable space simplifies the setup process.
-
MyDrive® Insight is part of a suite of engineering tools for easy monitoring, parameterization, and troubleshooting.
Seamless system integration: Connect with ease and security
-
Embedded fieldbus options support a wide range of protocols including EtherNet/IP, PROFINET, Modbus TCP, EtherCAT, and Modbus RTU for perfect system integration
-
Integrated cybersecurity with hardware-level security ensures your system is protected against unauthorized access
-
Integrated functional safety (STO) meets SIL3 Ple safety levels. Internal diagnostics with no mechanical moving parts ensure a longer, safer lifespan
Ultra low-harmonic (ULH) drives: For applications with sensitive power grids, the iC7-Aqua ULH variant provides an ultra-low harmonic solution
-
Maintains a total harmonic current distortion (THDi) of less than 3% at full load, 3-5% at partial loads, to protect sensitive electronic equipment
-
Achieves a power factor of 1.0, which can eliminate the need for external power factor correction equipment
-
Fully integrated and compact design simplifies installation with a simple 3-wire in, 3-wire out design
-
Significant cost gains due to smaller system components: The clean power profile helps you avoid oversizing system components, like supply transformers and switchgear.
-
High efficiency: Achieve lower energy losses compared to conventional ULH drives, contributing to lower operating costs
-
Future-proof compliance with current and future harmonic standards
Documents
| Type | Name | Language | Valid for | Updated | Download | File type |
|---|---|---|---|---|---|---|
| Installation guide | Cable kit for Ethernet port X1/X2, FA09-FA12 | English | Multiple | 25 Apr, 2024 | 3.0 MB | |
| Installation guide | Common-mode Filter Kit for FK09a/FB09a and FK10a/FB10a | English | Multiple | 23 Mar, 2023 | 830.8 KB | |
| Installation guide | Common-mode Filter Kit for FK11/FB11 and FK12/FB12 | English | Multiple | 23 Mar, 2023 | 1.1 MB | |
| Application guide | Connecting to iC7 Series Remotely via Mobile Network | English | Multiple | 21 Jun, 2024 | 3.9 MB | |
| Installation guide | Fieldbus EMC Plate for FA09-FA12 | English | Multiple | 17 Apr, 2024 | 528.1 KB | |
| Operating guide | Functional Extension Options | English | Multiple | 11 Feb, 2026 | 4.5 MB | |
| Installation guide | Functional Extension Options - Installation | English | Multiple | 03 May, 2023 | 19.2 MB | |
| Installation guide | Ground Bar Kit for FK09/FB09 and FK10/FB10 | English | Multiple | 04 Aug, 2025 | 1.1 MB | |
| Installation guide | Ground Bar Kit for FK11/FB11 and FK12/FB12 | English | Multiple | 26 Mar, 2023 | 327.1 KB | |
| Installation guide | iC7 AQUA and HVACR, 206-1260 A | English | Multiple | 26 Mar, 2026 | 12.8 MB | |
| Application guide | iC7 Integration into Rockwell Automation Studio 5000 | English | Multiple | 17 Dec, 2024 | 8.4 MB | |
| Application guide | iC7 integration into Siemens TIA Portal | English | Multiple | 10 Jul, 2024 | 7.5 MB | |
| Application guide | iC7 MyDrive Insight | English | Multiple | 06 Oct, 2023 | 3.2 MB | |
| Application guide | iC7 Series Aqua SW 2.0.0 | English | Multiple | 27 Mar, 2026 | 5.0 MB | |
| Installation guide | iC7 Series Control Panel Mounting Kit | English | Multiple | 24 Jul, 2024 | 328.0 KB | |
| Operating guide | iC7 Series Ethernet-IP | English | Multiple | 28 Sep, 2023 | 8.2 MB | |
| Safety guide | iC7 Series Frequency Converters Installation safety | Arabic; Czech; German; Greek (modern); English; Spanish, Castilian; French; Hungarian; Italian; Polish; Portuguese; Romanian, Moldavian, Moldovan; Chinese | Multiple | 26 May, 2025 | 4.9 MB | |
| Operating guide | iC7 Series Modbus | English | Multiple | 20 Sep, 2023 | 7.8 MB | |
| Operating guide | iC7 Series PROFINET | German | Multiple | 09 Oct, 2023 | 15.2 MB | |
| Operating guide | iC7 Series PROFINET | English | Multiple | 09 Oct, 2023 | 15.7 MB | |
| Installation guide | iC7 Series ULH (Ultra Low Harmonic) Frequency Converters FA10b (147-302 A) | English | Multiple | 26 Mar, 2026 | 6.4 MB | |
| Installation guide | iC7 Series ULH Frequency Converters, Ultra Low Harmonic FB07 | English | Multiple | 17 Mar, 2026 | 4.4 MB | |
| Installation guide | iC7-Aqua and HVACR Frequency Converters, FA02–FA08/FB06–FB08/FK06–FK08 (1.3–170 A) | English | Multiple | 17 Mar, 2026 | 19.3 MB | |
| Operating guide | iC7-Aqua and iC7-HVACR Functional Safety | English | Multiple | 20 Jan, 2026 | 1.2 MB | |
| Design guide | iC7-Aqua Frequency Converters | English | Multiple | 27 Mar, 2026 | 15.6 MB | |
| Operating guide | iC7-Automation EtherCAT | English | Multiple | 12 Jul, 2024 | 6.1 MB | |
| White paper | Impact of IEC 61800-5-1:2022 on variable frequency drives (VFD) | English | Multiple | 20 Mar, 2026 | 4.6 MB | |
| Installation guide | In-back/Out-back Cooling Kit for FA09-FA10 | English | Multiple | 09 Oct, 2023 | 1.1 MB | |
| Installation guide | In-back/Out-back Cooling Kit for FA11-FA12 | English | Multiple | 15 Oct, 2024 | 847.5 KB | |
| Installation guide | In-back/Out-back Cooling Kit for FK09a/FB09a and FK10a/FB10a | English | Multiple | 10 Oct, 2023 | 1.1 MB | |
| Installation guide | In-back/Out-back Cooling Kit for FK09c/FB09c and FK10c/FB10c | English | Multiple | 09 Oct, 2023 | 1.7 MB | |
| Installation guide | In-back/Out-back Cooling Kit for FK11/FB11 and FK12/FB12 | English | Multiple | 23 Mar, 2023 | 689.9 KB | |
| Installation guide | In-back/Out-top Cooling Kit for FA09-FA10 | English | Multiple | 09 Oct, 2023 | 1.1 MB | |
| Installation guide | In-back/Out-top Cooling Kit for FA11-FA12 | English | Multiple | 15 Oct, 2024 | 876.4 KB | |
| Installation guide | In-bottom/Out-back Cooling Kit for FA09-FA10 | English | Multiple | 09 Oct, 2023 | 1.3 MB | |
| Installation guide | In-bottom/Out-back Cooling Kit for FA11-FA12 | English | Multiple | 22 Mar, 2023 | 903.0 KB | |
| Installation guide | In-bottom/Out-top Cooling Kit for FA09-FA10 | English | Multiple | 09 Oct, 2023 | 1.1 MB | |
| Installation guide | In-bottom/Out-top Cooling Kit for FA11-FA12 | English | Multiple | 23 Mar, 2023 | 953.5 KB | |
| Installation guide | Multiwire Kit for Fx09-Fx10 | English | Multiple | 26 Mar, 2023 | 445.2 KB | |
| Application guide | MyDrive Insight Logic Feature | English | Multiple | 08 Jul, 2025 | 1.7 MB | |
| Fact sheet | MyDrive Suite - digital tools for iC7 series | English | Multiple | 30 Apr, 2025 | 2.8 MB | |
| Installation guide | Pedestal Kit for FK09/FB09 and FK10/FB10 | English | Multiple | 03 Sep, 2025 | 462.0 KB | |
| Installation guide | Tall Pedestal Kit for FK11/FB11 and FK12/FB12 | English | Multiple | 10 Dec, 2025 | 419.3 KB | |
| Installation guide | Touch Protection Kit for FK09/FB09 and FK10/FB10 | English | Multiple | 17 Jan, 2024 | 1.5 MB | |
| Installation guide | Touch Protection Kit for FK11/FB11 and FK12/FB12 | English | Multiple | 17 Jan, 2024 | 750.9 KB |
Drawings
| Type | Name | Language | Updated | Download | File type |
|---|---|---|---|---|---|
| Dimensional drawing | MCAD Control Panel 2.8 OPX20 | 25 Feb, 2026 | 13.1 MB | .stp | |
| Dimensional drawing | MCAD Control Panel 2.8 OPX20 | 25 Feb, 2026 | 482.7 KB | .dxf | |
| Dimensional drawing | MCAD Control Panel 2.8 OPX20 | 25 Feb, 2026 | 164.1 KB | ||
| Dimensional drawing | MCAD Control Panel Flush Mounting Kit | 25 Feb, 2026 | 254.3 KB | ||
| Dimensional drawing | MCAD Control Panel Flush Mounting Kit | 25 Feb, 2026 | 5.7 MB | .stp | |
| Dimensional drawing | MCAD Control Panel Flush Mounting Kit | 25 Feb, 2026 | 1.3 MB | .dxf | |
| Dimensional drawing | MCAD Control Panel Surface Mounting Kit | 25 Feb, 2026 | 187.8 KB | ||
| Dimensional drawing | MCAD Control Panel Surface Mounting Kit | 25 Feb, 2026 | 5.2 MB | .stp | |
| Dimensional drawing | MCAD Control Panel Surface Mounting Kit | 25 Feb, 2026 | 660.3 KB | .dxf | |
| Dimensional drawing | MCAD_Blind_Panel | 25 Feb, 2026 | 401.9 KB | .dxf | |
| Dimensional drawing | MCAD_Blind_Panel | 25 Feb, 2026 | 2.3 MB | .stp | |
| Dimensional drawing | MCAD_Blind_Panel | 25 Feb, 2026 | 128.0 KB | ||
| Dimensional drawing | MCAD_IC7FC_FA02a | 25 Feb, 2026 | 1.5 MB | ||
| Dimensional drawing | MCAD_IC7FC_FA02a | 25 Feb, 2026 | 1.7 MB | .dxf | |
| Dimensional drawing | MCAD_IC7FC_FA02a | 25 Feb, 2026 | 4.1 MB | .stp | |
| Dimensional drawing | MCAD_IC7FC_FA02b | 16 Dec, 2025 | 1.7 MB | .dxf | |
| Dimensional drawing | MCAD_IC7FC_FA02b | 25 Feb, 2026 | 1.6 MB | ||
| Dimensional drawing | MCAD_IC7FC_FA02b | 25 Feb, 2026 | 4.2 MB | .stp | |
| Dimensional drawing | MCAD_IC7FC_FA03a | 16 Dec, 2025 | 4.0 MB | .stp | |
| Dimensional drawing | MCAD_IC7FC_FA03a | 25 Feb, 2026 | 1.9 MB | .dxf | |
| Dimensional drawing | MCAD_IC7FC_FA03a | 25 Feb, 2026 | 1.5 MB | ||
| Dimensional drawing | MCAD_IC7FC_FA03b | 25 Feb, 2026 | 1.6 MB | ||
| Dimensional drawing | MCAD_IC7FC_FA03b | 25 Feb, 2026 | 1.9 MB | .dxf | |
| Dimensional drawing | MCAD_IC7FC_FA03b | 25 Feb, 2026 | 4.2 MB | .stp | |
| Dimensional drawing | MCAD_IC7FC_FA04a | 25 Feb, 2026 | 1.5 MB | ||
| Dimensional drawing | MCAD_IC7FC_FA04a | 25 Feb, 2026 | 1.5 MB | .dxf | |
| Dimensional drawing | MCAD_IC7FC_FA04a | 25 Feb, 2026 | 3.7 MB | .stp | |
| Dimensional drawing | MCAD_IC7FC_FA04b | 25 Feb, 2026 | 1.6 MB | ||
| Dimensional drawing | MCAD_IC7FC_FA04b | 25 Feb, 2026 | 3.8 MB | .stp | |
| Dimensional drawing | MCAD_IC7FC_FA04b | 25 Feb, 2026 | 1.5 MB | .dxf | |
| Dimensional drawing | MCAD_IC7FC_FA05a | 25 Feb, 2026 | 1.4 MB | ||
| Dimensional drawing | MCAD_IC7FC_FA05a | 25 Feb, 2026 | 3.4 MB | .stp | |
| Dimensional drawing | MCAD_IC7FC_FA05a | 25 Feb, 2026 | 1.5 MB | .dxf | |
| Dimensional drawing | MCAD_IC7FC_FA05b | 25 Feb, 2026 | 1.5 MB | .dxf | |
| Dimensional drawing | MCAD_IC7FC_FA05b | 25 Feb, 2026 | 1.5 MB | ||
| Dimensional drawing | MCAD_IC7FC_FA05b | 25 Feb, 2026 | 3.4 MB | .stp | |
| Dimensional drawing | MCAD_IC7FC_FA06 | 25 Feb, 2026 | 5.7 MB | .stp | |
| Dimensional drawing | MCAD_IC7FC_FA06 | 25 Feb, 2026 | 2.4 MB | .dxf | |
| Dimensional drawing | MCAD_IC7FC_FA06 | 25 Feb, 2026 | 456.7 KB | ||
| Dimensional drawing | MCAD_IC7FC_FA07 | 25 Feb, 2026 | 5.1 MB | .stp | |
| Dimensional drawing | MCAD_IC7FC_FA07 | 25 Feb, 2026 | 2.3 MB | .dxf | |
| Dimensional drawing | MCAD_IC7FC_FA07 | 25 Feb, 2026 | 437.7 KB | ||
| Dimensional drawing | MCAD_IC7FC_FA08 | 25 Feb, 2026 | 250.5 KB | ||
| Dimensional drawing | MCAD_IC7FC_FA08 | 25 Feb, 2026 | 2.4 MB | .dxf | |
| Dimensional drawing | MCAD_IC7FC_FA08 | 25 Feb, 2026 | 4.9 MB | .stp | |
| Dimensional drawing | MCAD_IC7FC_FA09 | 25 Feb, 2026 | 1.2 MB | ||
| Dimensional drawing | MCAD_IC7FC_FA09 | 25 Feb, 2026 | 88.1 MB | .stp | |
| Dimensional drawing | MCAD_IC7FC_FA09 | 25 Feb, 2026 | 3.1 MB | .dxf | |
| Dimensional drawing | MCAD_IC7FC_FA10 | 25 Feb, 2026 | 1.2 MB | ||
| Dimensional drawing | MCAD_IC7FC_FA10 | 25 Feb, 2026 | 93.7 MB | .stp | |
| Dimensional drawing | MCAD_IC7FC_FA10 | 25 Feb, 2026 | 4.2 MB | .dxf | |
| Dimensional drawing | MCAD_IC7FC_FA10b | 25 Feb, 2026 | 4.0 MB | ||
| Dimensional drawing | MCAD_IC7FC_FA10b | 25 Feb, 2026 | 5.1 MB | .stp | |
| Dimensional drawing | MCAD_IC7FC_FA11 | 25 Feb, 2026 | 433.5 KB | ||
| Dimensional drawing | MCAD_IC7FC_FA11 | 25 Feb, 2026 | 89.6 MB | .stp | |
| Dimensional drawing | MCAD_IC7FC_FA11 | 25 Feb, 2026 | 2.6 MB | .dxf | |
| Dimensional drawing | MCAD_IC7FC_FA12 | 25 Feb, 2026 | 433.8 KB | ||
| Dimensional drawing | MCAD_IC7FC_FA12 | 25 Feb, 2026 | 2.7 MB | .dxf | |
| Dimensional drawing | MCAD_IC7FC_FA12 | 25 Feb, 2026 | 43.9 MB | .stp | |
| Dimensional drawing | MCAD_IC7FC_FB09a | 25 Feb, 2026 | 1.4 MB | ||
| Dimensional drawing | MCAD_IC7FC_FB09a | 25 Feb, 2026 | 8.6 MB | .dxf | |
| Dimensional drawing | MCAD_IC7FC_FB09a | 25 Feb, 2026 | 83.2 MB | .stp | |
| Dimensional drawing | MCAD_IC7FC_FB09c | 25 Feb, 2026 | 7.8 MB | .dxf | |
| Dimensional drawing | MCAD_IC7FC_FB09c | 25 Feb, 2026 | 71.3 MB | .stp | |
| Dimensional drawing | MCAD_IC7FC_FB09c | 25 Feb, 2026 | 1.0 MB | ||
| Dimensional drawing | MCAD_IC7FC_FB10a | 25 Feb, 2026 | 1.3 MB | ||
| Dimensional drawing | MCAD_IC7FC_FB10a | 25 Feb, 2026 | 10.1 MB | .dxf | |
| Dimensional drawing | MCAD_IC7FC_FB10a | 25 Feb, 2026 | 98.0 MB | .stp | |
| Dimensional drawing | MCAD_IC7FC_FB10c | 25 Feb, 2026 | 798.1 KB | ||
| Dimensional drawing | MCAD_IC7FC_FB10c | 08 Mar, 2026 | 83.0 MB | .stp | |
| Dimensional drawing | MCAD_IC7FC_FB10c | 25 Feb, 2026 | 2.3 MB | .dxf | |
| Dimensional drawing | MCAD_IC7FC_FB11 | 25 Feb, 2026 | 93.3 MB | .stp | |
| Dimensional drawing | MCAD_IC7FC_FB11 | 25 Feb, 2026 | 9.5 MB | .dxf | |
| Dimensional drawing | MCAD_IC7FC_FB11 | 25 Feb, 2026 | 1.2 MB | ||
| Dimensional drawing | MCAD_IC7FC_FB12 | 25 Feb, 2026 | 893.1 KB | ||
| Dimensional drawing | MCAD_IC7FC_FB12 | 25 Feb, 2026 | 7.0 MB | .dxf | |
| Dimensional drawing | MCAD_IC7FC_FB12 | 25 Feb, 2026 | 85.0 MB | .stp | |
| Dimensional drawing | MCAD_IC7FC_FK06 | 25 Feb, 2026 | 3.1 MB | .dxf | |
| Dimensional drawing | MCAD_IC7FC_FK06 | 25 Feb, 2026 | 536.0 KB | ||
| Dimensional drawing | MCAD_IC7FC_FK06 | 25 Feb, 2026 | 4.9 MB | .stp | |
| Dimensional drawing | MCAD_IC7FC_FK06 WITH DISCONNECT | 25 Feb, 2026 | 4.8 MB | .stp | |
| Dimensional drawing | MCAD_IC7FC_FK06 WITH DISCONNECT | 25 Feb, 2026 | 3.3 MB | .dxf | |
| Dimensional drawing | MCAD_IC7FC_FK06 WITH DISCONNECT | 25 Feb, 2026 | 585.6 KB | ||
| Dimensional drawing | MCAD_IC7FC_FK07 | 25 Feb, 2026 | 544.0 KB | ||
| Dimensional drawing | MCAD_IC7FC_FK07 | 25 Feb, 2026 | 3.1 MB | .dxf | |
| Dimensional drawing | MCAD_IC7FC_FK07 | 25 Feb, 2026 | 4.9 MB | .stp | |
| Dimensional drawing | MCAD_IC7FC_FK07 WITH DISCONNECT | 25 Feb, 2026 | 3.2 MB | .dxf | |
| Dimensional drawing | MCAD_IC7FC_FK07 WITH DISCONNECT | 25 Feb, 2026 | 579.1 KB | ||
| Dimensional drawing | MCAD_IC7FC_FK07 WITH DISCONNECT | 25 Feb, 2026 | 4.8 MB | .stp | |
| Dimensional drawing | MCAD_IC7FC_FK08 | 25 Feb, 2026 | 1.9 MB | ||
| Dimensional drawing | MCAD_IC7FC_FK08 | 25 Feb, 2026 | 3.6 MB | .stp | |
| Dimensional drawing | MCAD_IC7FC_FK08 | 25 Feb, 2026 | 4.0 MB | .dxf | |
| Dimensional drawing | MCAD_IC7FC_FK08 WITH DISCONNECT | 25 Feb, 2026 | 1.7 MB | ||
| Dimensional drawing | MCAD_IC7FC_FK08 WITH DISCONNECT | 25 Feb, 2026 | 3.6 MB | .stp | |
| Dimensional drawing | MCAD_IC7FC_FK08 WITH DISCONNECT | 25 Feb, 2026 | 3.9 MB | .dxf | |
| Dimensional drawing | MCAD_IC7FC_FK09a | 25 Feb, 2026 | 1.4 MB | ||
| Dimensional drawing | MCAD_IC7FC_FK09a | 25 Feb, 2026 | 83.0 MB | .stp | |
| Dimensional drawing | MCAD_IC7FC_FK09a | 25 Feb, 2026 | 8.6 MB | .dxf | |
| Dimensional drawing | MCAD_IC7FC_FK09c | 25 Feb, 2026 | 7.8 MB | .dxf | |
| Dimensional drawing | MCAD_IC7FC_FK09c | 25 Feb, 2026 | 1.0 MB | ||
| Dimensional drawing | MCAD_IC7FC_FK09c | 25 Feb, 2026 | 71.2 MB | .stp | |
| Dimensional drawing | MCAD_IC7FC_FK10a | 25 Feb, 2026 | 369.8 MB | .stp | |
| Dimensional drawing | MCAD_IC7FC_FK10a | 25 Feb, 2026 | 10.1 MB | .dxf | |
| Dimensional drawing | MCAD_IC7FC_FK10a | 25 Feb, 2026 | 1.3 MB | ||
| Dimensional drawing | MCAD_IC7FC_FK10c | 25 Feb, 2026 | 82.9 MB | .stp | |
| Dimensional drawing | MCAD_IC7FC_FK10c | 25 Feb, 2026 | 797.7 KB | ||
| Dimensional drawing | MCAD_IC7FC_FK10c | 25 Feb, 2026 | 2.3 MB | .dxf | |
| Dimensional drawing | MCAD_IC7FC_FK11 | 25 Feb, 2026 | 9.9 MB | .dxf | |
| Dimensional drawing | MCAD_IC7FC_FK11 | 25 Feb, 2026 | 93.3 MB | .stp | |
| Dimensional drawing | MCAD_IC7FC_FK11 | 25 Feb, 2026 | 1.2 MB | ||
| Dimensional drawing | MCAD_IC7FC_FK12 | 25 Feb, 2026 | 892.9 KB | ||
| Dimensional drawing | MCAD_IC7FC_FK12 | 25 Feb, 2026 | 84.9 MB | .stp | |
| Dimensional drawing | MCAD_IC7FC_FK12 | 25 Feb, 2026 | 7.0 MB | .dxf | |
| Dimensional drawing | MCAD-FB07-IP55 | 17 Dec, 2025 | 3.7 MB | ||
| Dimensional drawing | MCAD-FB07-IP55 | 17 Dec, 2025 | 5.6 MB | .stp | |
| Dimensional drawing | MCAD-FB10b-IP54 | 25 Feb, 2026 | 3.1 MB | ||
| Dimensional drawing | MCAD-FB10b-IP54 | 25 Feb, 2026 | 2.7 MB | .stp |
Software
| Type | Software Characteristic | Name | Version | Language | Released | Status | Download | File type |
|---|---|---|---|---|---|---|---|---|
| System software | Library | iC7 Series Library for Siemens TIA Portal | 01 | Arabic; Bulgarian; Czech; Danish; German; Greek (modern); English; Spanish, Castilian; Estonian; Persian; Finnish; French; Irish; Hebrew (modern); Hindi; Croatian; Hungarian; Indonesian; Icelandic; Italian; Japanese; Kazakh; Korean; Lithuanian; Latvian; Macedonian; Norwegian Bokmål; Dutch, Flemish; Polish; Portuguese; Romanian, Moldavian, Moldovan; Russian; Slovak; Slovenian; Serbian; Swedish; Tamil; Thai; Turkish; Ukrainian; Vietnamese; Chinese | 10 Jul, 2024 | Released | 12.5 MB | .zip |
| System software | Drive software | iC7-Automation Drive Software | 2025.11.121904-GR6.2 | Arabic; Bulgarian; Czech; Danish; German; Greek (modern); English; Spanish, Castilian; Estonian; Persian; Finnish; French; Irish; Hebrew (modern); Hindi; Croatian; Hungarian; Indonesian; Icelandic; Italian; Japanese; Kazakh; Korean; Lithuanian; Latvian; Macedonian; Norwegian Bokmål; Dutch, Flemish; Polish; Portuguese; Romanian, Moldavian, Moldovan; Russian; Slovak; Slovenian; Serbian; Swedish; Tamil; Thai; Turkish; Ukrainian; Vietnamese; Chinese | 24 Feb, 2026 | Released | 27.2 MB | .zip |
| System software | Fieldbus configuration file | iC7-Automation EtherCAT ESI file | 2025.11.121904-GR6.1 | Arabic; Bulgarian; Czech; Danish; German; Greek (modern); English; Spanish, Castilian; Estonian; Persian; Finnish; French; Irish; Hebrew (modern); Hindi; Croatian; Hungarian; Indonesian; Icelandic; Italian; Japanese; Kazakh; Korean; Lithuanian; Latvian; Macedonian; Norwegian Bokmål; Dutch, Flemish; Polish; Portuguese; Romanian, Moldavian, Moldovan; Russian; Slovak; Slovenian; Serbian; Swedish; Tamil; Thai; Turkish; Ukrainian; Vietnamese; Chinese | 24 Feb, 2026 | Released | 307.3 KB | .zip |
| System software | Fieldbus configuration file | iC7-Automation EtherNet/IP EDS | 2025.11.121904-GR6.1 | Arabic; Bulgarian; Czech; Danish; German; Greek (modern); English; Spanish, Castilian; Estonian; Persian; Finnish; French; Irish; Hebrew (modern); Hindi; Croatian; Hungarian; Indonesian; Icelandic; Italian; Japanese; Kazakh; Korean; Lithuanian; Latvian; Macedonian; Norwegian Bokmål; Dutch, Flemish; Polish; Portuguese; Romanian, Moldavian, Moldovan; Russian; Slovak; Slovenian; Serbian; Swedish; Tamil; Thai; Turkish; Ukrainian; Vietnamese; Chinese | 24 Feb, 2026 | Released | 138.2 KB | .zip |
| System software | Fieldbus configuration file | iC7-Automation PROFINET GSDML | 2025.11.121904-GR6.1 | Arabic; Bulgarian; Czech; Danish; German; Greek (modern); English; Spanish, Castilian; Estonian; Persian; Finnish; French; Irish; Hebrew (modern); Hindi; Croatian; Hungarian; Indonesian; Icelandic; Italian; Japanese; Kazakh; Korean; Lithuanian; Latvian; Macedonian; Norwegian Bokmål; Dutch, Flemish; Polish; Portuguese; Romanian, Moldavian, Moldovan; Russian; Slovak; Slovenian; Serbian; Swedish; Tamil; Thai; Turkish; Ukrainian; Vietnamese; Chinese | 24 Feb, 2026 | Released | 848.7 KB | .zip |
| System software | Drive software | iC7-Automation_SM System Software | 2026.2.5 | English | 24 Feb, 2026 | Released | 48.8 MB | .zip |
| System software | Library | Rockwell Studio 5000 AOI and AOG for iC7 integration | 1.0 | English | 15 Dec, 2024 | Released | 13.2 MB | .zip |
Tools and apps
Related solutions
Close to one third of the world’s population currently lives in water stressed and scarcity areas. Danfoss has solutions that can help communities reduce their water loss, save energy and reduced investment in pipe replacement.
By reducing energy consumption and optimizing energy production from wastewater treatment, we can fuel the entire water cycle for urban municipalities. In industrial wastewater treatment, Danfoss solutions ensure sustainability of zero liquid discharge (ZLD) processes.
Due to high energy efficiency and reliability, Sea Water Reverse Osmosis (SWRO) is one of the most sustainable and cost effective solutions for converting sea water to potable fresh water. Danfoss is committed to supporting the desalination industry with energy efficient SWRO solutions.
Efficient and sustainable irrigation is vital for the global security of food supply. Danfoss offers solutions to reduce energy consumption, increase water efficiency and protect infrastructure.
As global demand for lithium, magnesium, and food-grade salt surges, brine mining is emerging as a less environmentally disruptive alternative to conventional mining. But brine valorization is only economically viable if energy use and system complexity are kept in check.
Related applications
For water supply based on surface water or groundwater, Danfoss VFDs can help optimize the production process whilst reducing energy and maintenance costs.

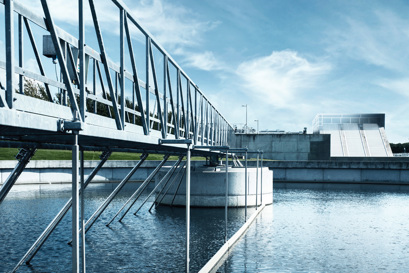

Use VFDs to control the speed of motors in a wide range of pump, blower, mixer and dewatering applications to help enhance performance and value while saving energy and costs in wastewater treatment.
In water and wastewater applications, activating a condition monitoring system integrated into your VFDs optimizes the overall performance. Edge computing means there is no need to connect to the cloud.

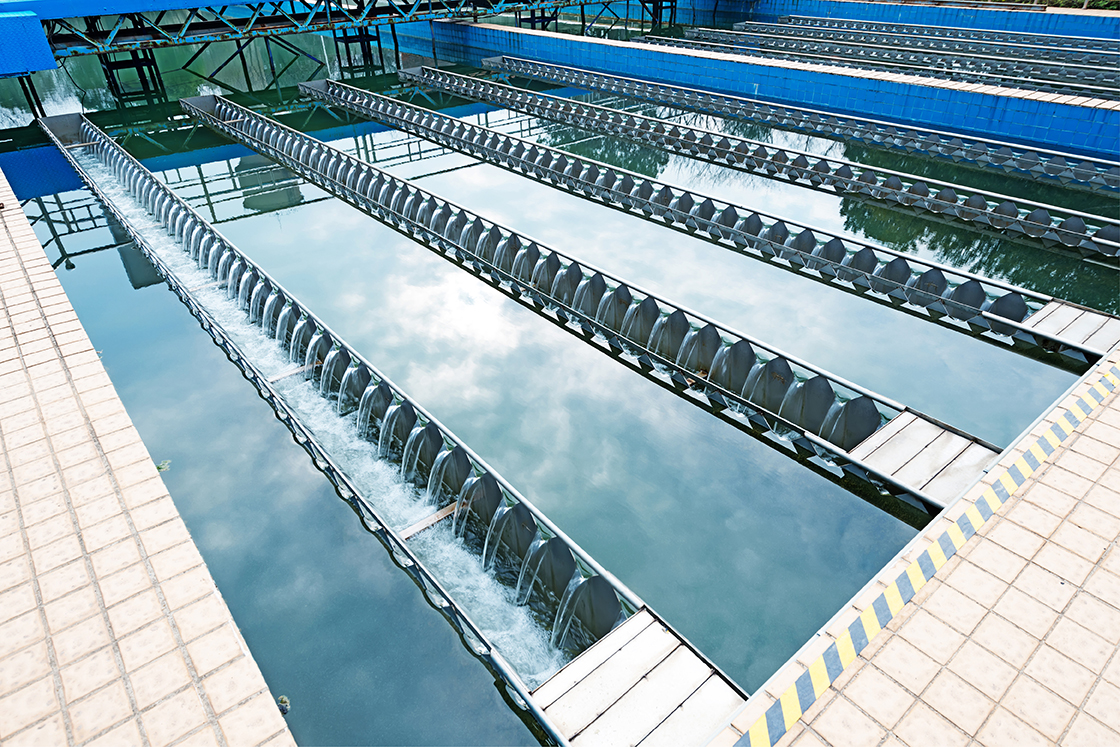

Achieve peak performance in water management with VFDs for pumps
The Danfoss iC7-Aqua is the next-generation variable frequency drive for pumps, meticulously designed for water supply, wastewater, desalination, irrigation, and industrial pumping applications. It’s built on a new, modular platform that ensures robust performance, advanced process control, and a future-proof design to meet the evolving demands of the water industry. With the iC7-Aqua, you get a dedicated VFD for water applications that delivers unparalleled reliability, efficiency, and ease of use: significantly reduce operating costs for utilities
iC7 series: Rethinking drives
With more than 1,000 researchers and developers focusing every effort on breaking new ground, we’ve been able to create VFDs that are smaller and better performing than anything you’ve ever seen — and packed with even more power, quality, and reliability. The iC7-Aqua is a testament to this, offering the most energy-efficient pump drives for a sustainable future.
Discover our approach
