Möchten Sie hochdynamische Lastzyklen unter rauen Bedingungen erreichen?
Der iC7-Automation bietet Ihnen in jeder Umgebung die erforderliche Zuverlässigkeit und Leistung. Dank Vernetzung, Sicherheit und Intelligenz profitieren Sie mit diesem Frequenzumrichter von den neuesten Entwicklungen im Industrial IoT.
Der iC7-Automation eröffnet Ihnen ganz neue Möglichkeiten, um Ihr System mit wählbaren Kommunikationsprotokollen und serienmäßigem Safe Torque Off (STO) SIL3 zu optimieren. Dank der modularen Steuerungsplattform können Sie die Funktionalität nach Ihren Anforderungen erweitern.
Versorgungsspannungs- und Leistungsbereich
- Frequenzumrichter: 3 × 380–500 V AC ... 0,37–710 kW
- Luftgekühlte Systemmodule: 3 × 380–500 V AC ... 200–1400 kW
Finden Sie den Frequenzumrichter, der zu Ihrer Anwendung passt
Frequenzumrichter

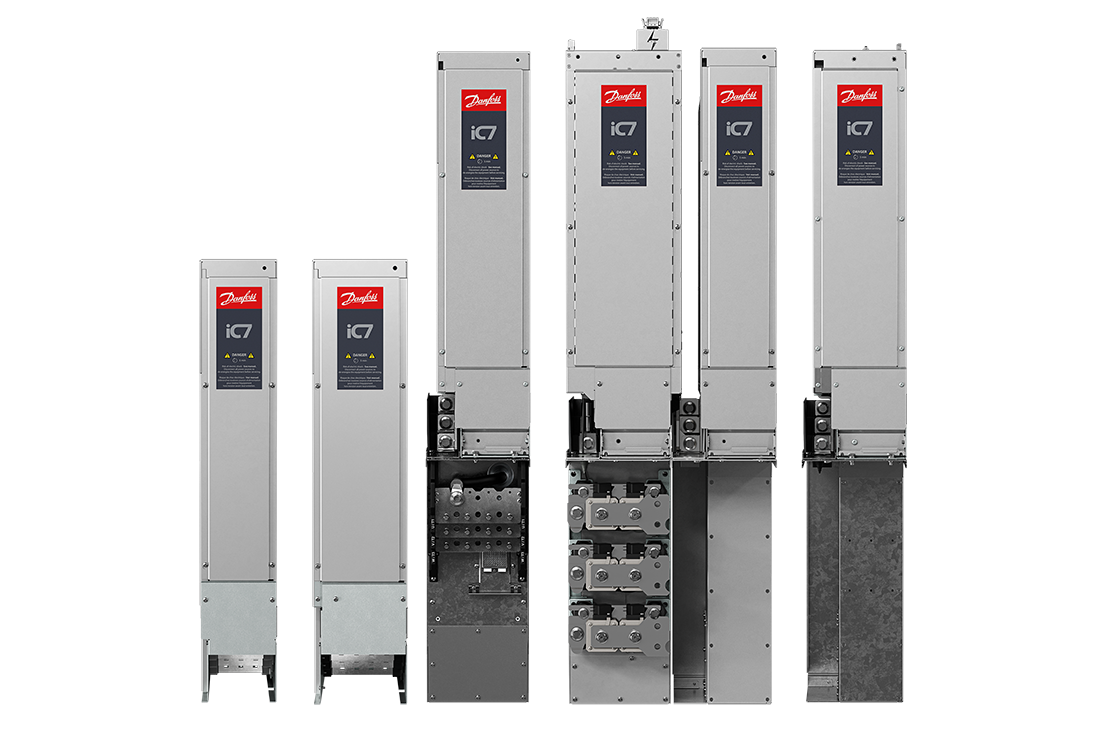

Luftgekühltes Systemmodul
Funktionen und Vorteile
Beispiellose Präzision
Secure by Design
Sehr kompakte Bauweise spart Platz und senkt Kühlkosten
Integrierter Dual-Ethernet-Anschluss mit mehreren Feldbus-Protokollen für flexibles Arbeiten, ohne zusätzliche Lagerhaltungskosten und Vorlaufzeiten
STO SIL 3, Ple serienmäßig, zur vereinfachten Zertifizierung
Verbesserte Leistung und Genauigkeit der Steuerung dank zahlreicher integrierter Sensoren
Verwenden Sie unsere virtuellen Modelle, um die Entwicklung Ihres Projekts zu beschleunigen und Risiken zu minimieren
Integrationseinheit mit eingebauten Filtern senkt die Integrationskosten
Erhöhen Sie die Leistung durch Parallelschaltung von Leistungseinheiten, ohne dass Ausgleichsfilter erforderlich sind
Schneller Austausch der Leistungseinheit, ohne das Motorkabel entfernen zu müssen
Modulares und skalierbares Steuerungskonzept
Effizientes Wärmemanagement mit rückseitigem Kühlluftkanal
Bahnbrechende Abfülllinie bei Brasserie Caulier
Brasserie Caulier holt mit iC7-Automation das volle Potenzial aus seinen Legendre-Fördersystemen heraus.
