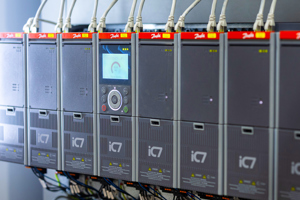

Want to manage highly dynamic load cycles in harsh conditions?
Whatever the environment, the iC7-Automation delivers the reliability and performance you need. With connectivity, security and intelligence, this drive lets you take advantage of the latest in Industrial IoT.
iC7-Automation gives you a whole new way to optimize your system with selectable communication protocols and Safe Torque Off (STO) SIL3 as standard. The modular control platform allows you to expand functionality to meet your needs.
Supply voltage and power range
- Frequency converters: 3 x 380-500 V AC ... 0.37 – 710 kW
- Air-cooled system modules: 3 x 380-500 V AC ... 200 – 2700 kW
- Enclosed drives: 3 x 380-500 V AC … 200 – 900 kW
Find the drive to fit your application
Features and benefits
More precise than ever
Secure-by-design
Highly compact design saves space and reduces cooling costs
Integrated dual Ethernet port with multiple fieldbus protocols enables you to operate flexibly, free of stock costs and lead time
Switch fieldbus in the field, without changing boards. These protocols are available for activation by license key: PROFIsafe, PROFINET RT, Modbus TCP, EtherNet/IP, EtherCAT, and OPC UA
Safe Torque-Off (STO) up to SIL3 / Performance Level e (PLe) as standard, for highest reliability and easier certification. Optional STO button on door, for enclosed drives
Functional safety via fieldbus: PROFIsafe
Safe Torque-Off up to SIL3 / Performance Level e (PLe) as standard, for highest reliability and easier certification
Numerous integrated sensors improve performance and control accuracy
Use our virtual models to speed up and de-risk your development project
Integration unit with built-in filters reduces integration cost
Increase power by paralleling power units with no need for balancing filters
Fast power unit replacement with no need to remove motor cables
Modular and scalable control concept
Efficient heat management with back-channel cooling
Connect to any motor and the drive will adapt: induction motor (IM), permanent magnet motor (PM) , or high-efficiency synchronous reluctance motor (SynRM)
Application software – for a perfect match
The integrated Industry application delivers high-performance speed and torque control with advanced auto-tuning. For optimal performance in single-axis linear or rotary positioning and synchronization tasks, you can activate the Motion application, simply using a license key.
Both of these iC7-Automation applications give you high-performance open- and closed loop motor control with advanced automatic motor adaptation.
