TMT/TMV/TMK series, for tough applications
With pressure capability up to 350 bar [5,080 psi] and high starting torque, the TMT/TMV/TMK series is the energy-efficient choice for the toughest working environments.
Leading performance with a long lifetime makes light work of the heaviest duties. Up against high pressures, thin oil or frequent reversals, our motors are guaranteed to perform smoothly and efficiently - even at low speed.
TMT/TMV/TMK series characteristics
-
Motors with speed sensor
-
Ultra short motorsĀ
-
Motors with integrated brakeĀ
-
Motors with integrated flushing valveĀ
-
Special dust seal ring for additional shaft seal protection
Features and benefits
-
High bearing capacity and robust cardan shaft design for longer lifeĀ
-
Outstanding motor efficiency for reduced fuel consumptionĀ
-
Low leakage, securing energy savingsĀ
-
Short motors without bearings for compact integration in gear boxes and other flexible design optionsĀ
-
Integrated flushing valve for continuous oil renewal and cooling in a closed circuitĀ
-
Special mounting flange on wheel motors for optimal utilization of bearing capacityĀ
Product range
Our large orbital motors are an excellent choice for the propel and work functions on many applications ā including skid steer loaders, trench compactors, forestry harvester heads, and beet harvesters.

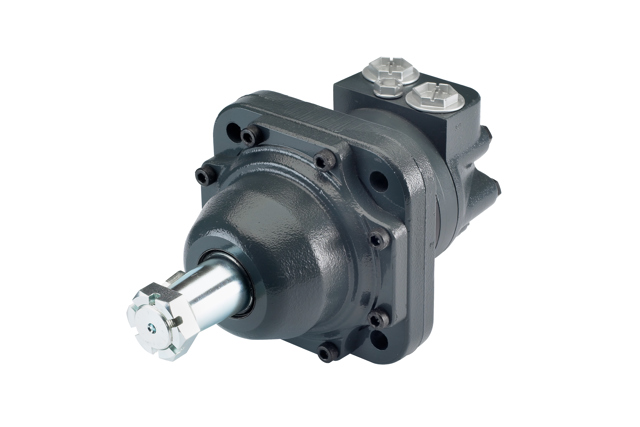

TMK
|
Type |
TMK |
|
Displacement [cm³/rev] [Min] Displacement [cm³/rev] [Max] Displacement [in³/rev] [Min] Displacement [in³/rev] [Max] Continuous oil flow [L/min] [Max] Continuous oil flow [gal/min] [Max] Intermediate output [hp] [Max] Intermediate output [kW] [Max] Intermediate pressure drop [bar] [Max] Intermediate pressure drop [psi] [Max]  |
160 470 9.77 28.68 80 21.1 36 27 325 4715 |
Ā

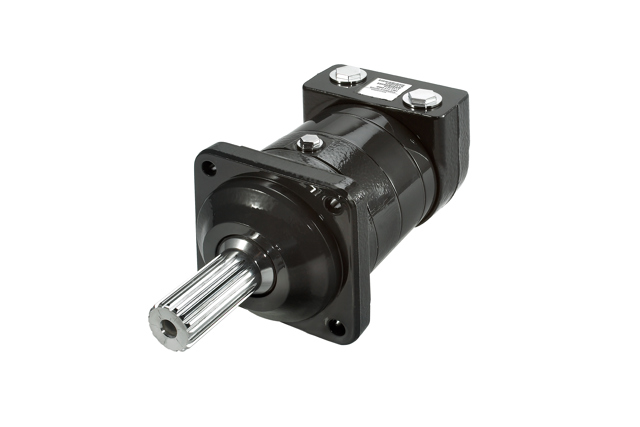

TMT
|
Type |
TMT |
|
Displacement [cm³/rev] [Min] Displacement [cm³/rev] [Max] Displacement [in³/rev] [Min] Displacement [in³/rev] [Max] Continuous oil flow [L/min] [Max] Continuous oil flow [gal/min] [Max] Intermediate output [hp] [Max] Intermediate output [kW] [Max] Intermediate pressure drop [bar] [Max] Intermediate pressure drop [psi] [Max] |
250 630 15.37 38.39 125 33 68 51 350 5080Ā |

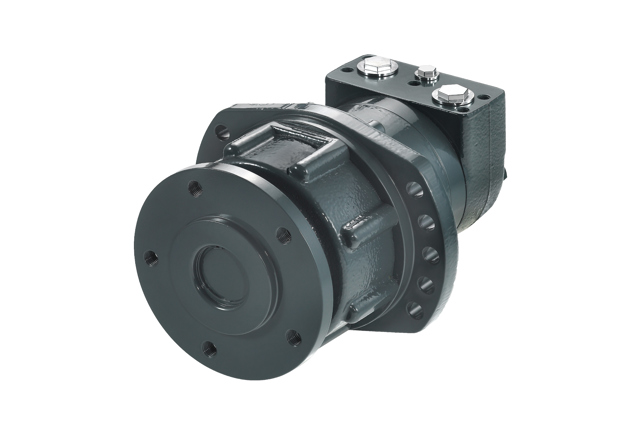

TMTHW
|
Type |
TMTHW |
|
Displacement [cm³/rev] [Min] Displacement [cm³/rev] [Max] Displacement [in³/rev] [Min] Displacement [in³/rev] [Max] Continuous oil flow [L/min] [Max] Continuous oil flow [gal/min] [Max] Intermediate output [hp] [Max] Intermediate output [kW] [Max] Intermediate pressure drop [bar] [Max] Intermediate pressure drop [psi] [Max]  |
315 800 18.5 48.82 200 52.8 87 65 350 5080 |

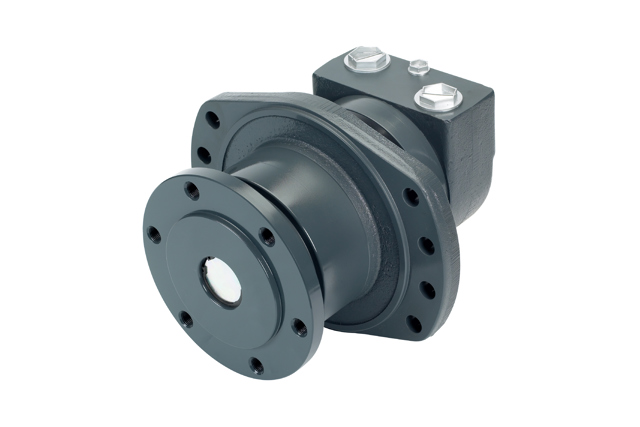

TMV
|
Type |
Ā TMV |
|
Displacement [cm³/rev] [Min] Displacement [cm³/rev] [Max] Displacement [in³/rev] [Min] Displacement [in³/rev] [Max] Continuous oil flow [L/min] [Max] Continuous oil flow [gal/min] [Max] Intermediate output [hp] [Max] Intermediate output [kW] [Max] Intermediate pressure drop [bar] [Max] Intermediate pressure drop [psi] [Max] |
400 800 24.41 48.82 200 52.8 150 112 350 5080 |
Ā

Documents
| Type | Name | Language | Valid for | Updated | Download | File type |
|---|---|---|---|---|---|---|
| User guide | TMK/TMKW/TMK FL Orbital Motors Technical Information | English | Multiple | 08 Mar, 2015 | 3.9 MB | |
| User guide | TMT TMTU TMTW TMT FL Orbital Motors Technical Information | Japanese | Japan | 27 Nov, 2024 | 10.9 MB | |
| User guide | TMT TMTU TMTW TMT FL Orbital Motors Technical Information | English | Multiple | 08 Mar, 2015 | 7.7 MB | |
| Data sheet | TMTHW Orbital Motor Data Sheet | English | Multiple | 09 Mar, 2015 | 500.7 KB | |
| User guide | TMTHW Orbital Motor Technical Information Manual | English | Multiple | 09 Mar, 2015 | 1.3 MB | |
| User guide | TMVW Orbital motor Technical Information Manual | English | Multiple | 08 Mar, 2015 | 1.6 MB |
