OMT/OMV series characteristics
-
Motors with corrosion resistant parts
-
Wheel motors with recessed mounting flange
-
Motors with needle bearings
-
Motors in low leakage version
-
Motors with integrated brake
-
Motors with speed sensor
Features and benefits
-
Corrosion-resistant to withstand the most challenging conditions
-
Dust seal cap for resistance to high dust concentrations
-
Robust cardan shaft for longer life in demanding applications
-
Low leakage version for energy savings
-
Recessed mounting flange on wheel motors, giving optimal utilization of bearing capacity
Application opportunities
Our medium-size motors are easily installed in, for example, forklift trucks, turf care machinery, aerial lifts, winches, harvesting and planting equipment, sweepers and spreaders.
Product range

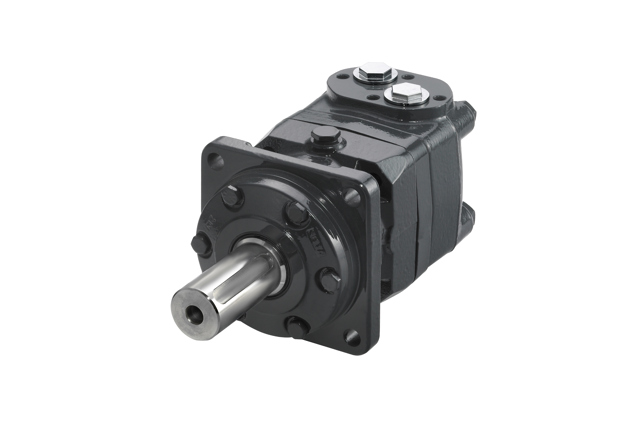

OMT
- Displacement [cm³/rev] [Min] 160
- Displacement [cm³/rev] [Max] 500
- Displacement [in³/rev] [Min] 9.77
- Displacement [in³/rev] [Max] 30.51
- Continuous oil flow [L/min] [Max] 125
- Continuous oil flow [gal/min] [Max] 33
- Intermediate output [hp] [Max] 54
- Intermediate output [kW] [Max] 40
- Intermediate pressure drop [bar] [Max] 240
- Intermediate pressure drop [psi] [Max] 3480

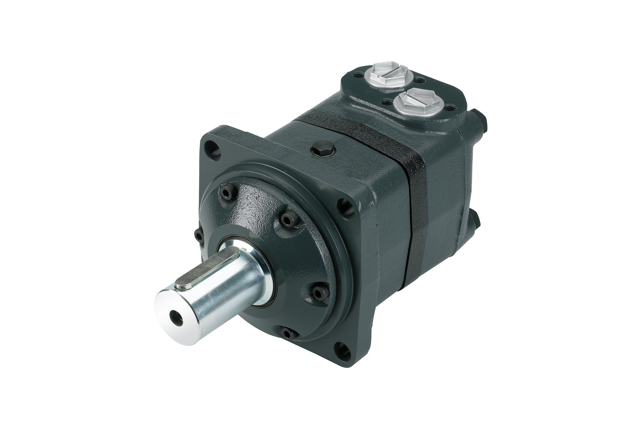

OMV
- Displacement [cm³/rev] [Min] 315
- Displacement [cm³/rev] [Max] 800
- Displacement [in³/rev] [Min] 19.22
- Displacement [in³/rev] [Max] 48.82
- Continuous oil flow [L/min] [Max] 200
- Continuous oil flow [gal/min] [Max] 53
- Intermediate output [hp] [Max] 86
- Intermediate output [kW] [Max] 64
- Intermediate pressure drop [bar] [Max] 240
- Intermediate pressure drop [psi] [Max] 3480
