Certified CAN bus actuators
Get fast, accurate and intelligent operation with our plug and perform PVE actuators – under any operating and environmental conditions.
The portfolio includes more than 50 different versions of our PVE actuators. These are from simple on/off actuators to SIL 2 certified CAN bus actuators. Our PVED CAN bus actuators are designed for J1939/ISOBUS Protocol and CANopen systems.
Machine benefits
Speed up time to market with SIL 2 certified products
A build-in surveillance monitors both the PVEs and the valve performance
Plug and perform capability
Easy setup and installation speeds up time to market
User selectable, progressive flow characteristics in our digital PVED CAN bus actuators
Advanced built-in diagnostic functions
Product features
PVED-CX is SIL 2 certified according to IEC 61508
PVED-CC is PLUS+1® compliant, which enables OEMs to change PVED-CC parameters in the PLUS+1® GUIDE service tool
CANopen protocol (CiA 3.01 and CiA 4.08)
J1939/ISOBUS CAN control
Advanced performance settings
Environmental robustness identical to analog PVE
Power consumption <9W
Documents
Type | Name | Language | Valid for | Updated | Download | File type |
---|---|---|---|---|---|---|
Data sheet | PVED-CC Electrohydraulic Actuator Data Sheet | English | Multiple | 09 Mar, 2015 | 1.8 MB | |
User guide | PVED-CC Series 4 Electrohydraulic Actuator Technical Information Manual | English | Multiple | 09 Mar, 2015 | 6.2 MB | |
User guide | PVED-CC Series 4 Electrohydraulic Actuator Technical Information Manual | Chinese (CN) | China | 12 Sep, 2018 | 8.3 MB |
Related products
-
if (isSmallPicture) { ; } else if (isBigColumns) { } else { }PLUS+1® GUIDE
PLUS+1® GUIDE is your gateway to the Danfoss world of advanced mobile machine control.
-
if (isSmallPicture) { ; } else if (isBigColumns) { } else { }PLUS+1® Service Tool
The PLUS+1® Service Tool is a free application for flashing PLUS+1® hardware, adjusting parameters, and running machine diagnostic applications.
-

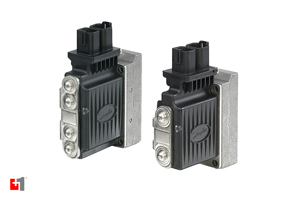

if (isSmallPicture) { ; } else if (isBigColumns) { } else { }PVE S7 electrohydraulic actuators
