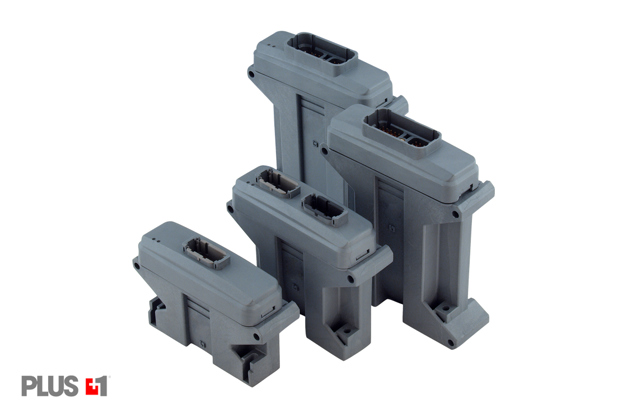

PLUS+1® MC microcontrollers

Withstand the toughest conditions

CAN-based PLUS+1^® microcontrollers are the brains behind intelligent vehicle control. Swiftly programmable to your specific requirements. Our powerful PLUS+1^® microcontrollers bring intelligence to every node of a distributed control system. And they are equally effective for stand-alone control in smaller machines.

Thanks to their rugged design, they’ll withstand the toughest conditions your vehicle comes up against. Programming our microcontrollers requires minimum effort with our easy-to-learn PLUS+1^® GUIDE software.

Features and benefits

High speed DSP technology to process even the most complex applications
Stackable microcontrollers for high mounting flexibility
6 I/O configurations in 4 housing sizes and nine total I/O configurations for multiple control options – the building blocks for almost every function
CAN-based communications for state-of-the art control performance

CG150 CAN/USB gateway interface communicator

Application programs are quick to download to the PLUS+1^® CAN network via our compact and cost-effective communicator.

And application tuning parameters can be uploaded and downloaded.
Serving as the gateway interface between PLUS+1^® modules on the CAN network and a computer USB port, the CG150 is compatible with Bosch CAN standard 2.0 A and B (standard and extended data frames) and USB standard 1.1 and 2.0.

Features and benefits

Equipped with a 110cm (44in) USB cable and a 30cm (12in) CAN cable.
Interfaces the CAN bus with a 9-pin D-SUB connector.
Plug and Perform® installation.
Works with the CanKing CAN bus monitor.

Documents

Documents
Type	Name	Language	Valid for	Updated	Download	File type

Downloads

PLUS+1 MC microcontrollers

Download 2D/3D drawings and certificates on PowerSource. Select the required product and then click on the respective tabs to access available drawing files and certificates.
