ICS cartridge accessories

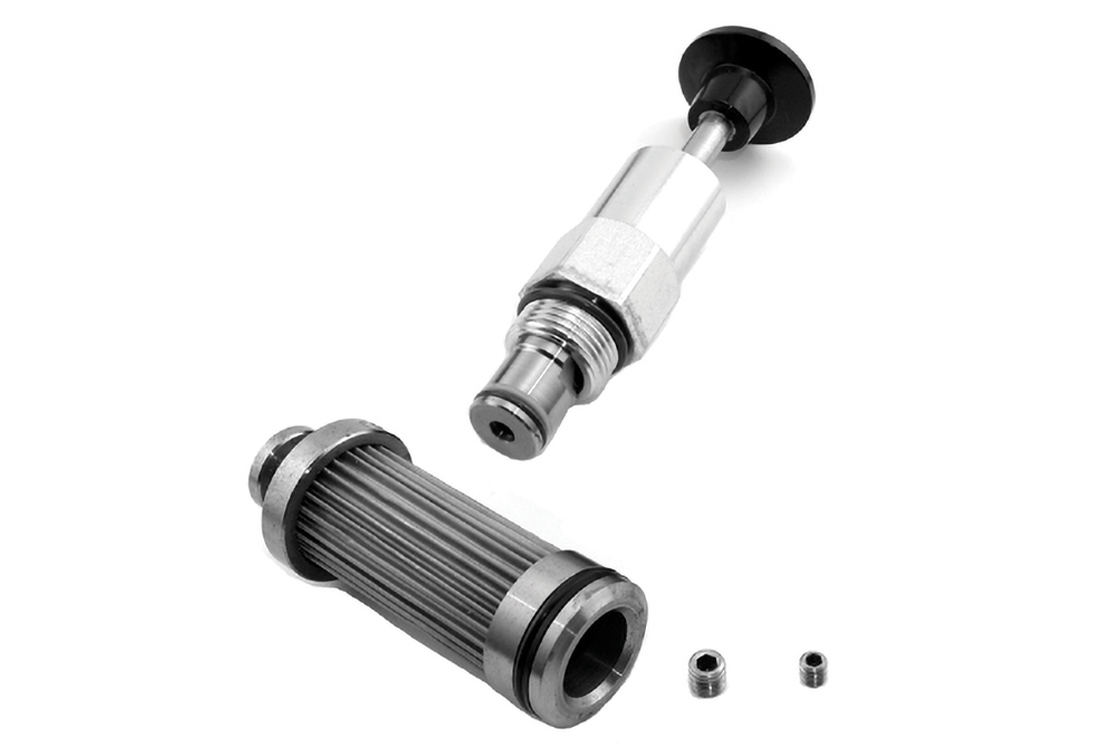

Our accessories help you complete an HIC circuit to meet your application needs. From hand pumps, cavity filters, to orifice plugs you can find all items needed for a complete schematic.

Features and benefits

Hand pumps provide manually actuated flow in the event of power loss on your machine
Orifice plugs control flow to your function, ensuring proper speed
Cavity plugs allow for easy troubleshooting or removing optional parts of your HIC circuit

Product range

Filter (cavity style)

Model code

Cavity

Rated pressure

Rated flow

3D model

CPF20-3

SDC20-3

210 bar

(3000 psi)

38 lpm

(10 gpm)

Search for 3D models on PowerSource

Hand pump (manually operated)

Model code	Cavity	Rated pressure	Rated flow	3D model
CP600-5	SDC10-2	210 bar (3000 psi)	1.2 cm³ (0.07 in³) / stroke	Search for 3D models on PowerSource
CP602-5	SDC16-2	210 bar (3000 psi)	9.2 cm³ (0.56 in³) / stroke	Search for 3D models on PowerSource
MP 06	NCS06/2	315 bar (4570 psi)	0.94 cm³ (0.057 in³) / stroke	Search for 3D models on PowerSource
MP 12	NCS12/2	315 bar (4570 psi)	5 cm³ (0.305 in³) / stroke	Search for 3D models on PowerSource

Cavity plugs

Description	Model code	3D model
4 Series	CP04	Search for 3D models on PowerSource
8 Series	CP08	Search for 3D models on PowerSource
10 Series	CP10	Search for 3D models on PowerSource
12 Series	CP12	Search for 3D models on PowerSource
16 Series	CP16	Search for 3D models on PowerSource
20 Series	CP20	Search for 3D models on PowerSource

Other accessories (pilot pistons)

Cavity	3D model
Various	Search for 3D models on PowerSource

Load shuttle valves - cartridge

Product Code	Cavity	Flow	Pressure
CP124-1	CP04-3	3.7 l/min [1 US gpm]	350 bar [5000 psi]
SV 04	NCS04/3	15 l/min [4 US gpm]	315 bar [4600 psi]
CP128-1	SDC08-3	22 l/min [5.8 US gpm]	315 bar [4600 psi]
CP120-4	SDC10-3	25 l/min [7 US gpm]	330 bar [4800 psi]
SV 06	NCS06/3	48 l/min [13 US gpm]	350 bar [5000 psi]
1SH10	A16927	20 l/min [5 US gpm]	350 bar [5000 psi]

Load shuttle valves - in-line

Product Code	Cavity	Flow	Pressure
VS 06	N/A	35 l/min [9 US gpm]	350 bar [5000 psi]
VS 10	N/A	45 l/min [12 US gpm]	350 bar [5000 psi]

Hot oil shuttle valves

Product Code	Cavity	Flow	Pressure
CP720-3	SDC10-4	25 l/min [7 US gpm]	350 bar [5000 psi]
CP721-3	CP12-3M	90 l/min [24 US gpm]	350 bar [5000 psi]
HS12	CP12-3M	80 l/min [21 US gpm]	450 bar [6500 psi]

Accessories

Product Code	Cavity	Flow	Pressure
BXP18712	SDC08-2	1.9cucm/stroke	250 bar [3625 psi] generated
CP600-5	SDC10-2	1.2cu,cm0.07cu,in/stroke	210 bar [3000 psi]
1HP7	A12370	1.3cucm/stroke	50 bar [750 psi] generated
CP602-5	SDC16-2	9.2cucm/stroke	210 bar [3000 psi] generated

Documents

Documents
Type	Name	Language	Updated	Download	File type

Related products

HICs

Danfoss ICS specializes in Hydraulic Integrated Circuits (HICs) allowing customers to use our broad portfolio of cartridge valves to create innovative solutions for optimal machine control and performance.

ICS cartridge accessories
