Caliper disc brakes

Danfoss has developed a range of Airflex hydraulic caliper brakes and has also partnered with Coremo Ocmea to deliver safe, reliable braking solutions. Together, we offer a broad portfolio of hydraulic and pneumatic caliper disc brakes and design services for mining, oil and gas, marine and metals industries.

• Safe - Fast response time for maximum safety​
• Durable - Longer lifetime​
• Sustainable - Simplified maintenance​

​

Introducing the new Airflex® ACB-F3 Failsafe Caliper Brake. Designed for holding and emergency stopping applications in heavy-duty equipment across mining, oil & gas, marine, and metals industries. The ACB-F3 enhances safety, reliability, and reduces downtime. Simple to install and maintain, with options for organic/sintered friction pads and anti-corrosion protection.

Ideal for: Oil & Gas (drilling drawworks, oil rig cranes), Marine (deck machinery), Mining (conveyors, grinding mills, hoists).

The ACB-F3 Failsafe Caliper Brake: Protecting lives, the environment, and your equipment.

The Airflex ACB-F3 is a spring-applied, hydraulically released brake for park-and-hold and emergency stop applications. Its robust, compact design provides reliable, stable braking torque, and its symmetrical opposed piston caliper is well-suited for high-torque, high-energy stopping. With approximately 50% longer friction pad life, the ACB-F3 ensures safe, stable torque over an extended duration.

• Clamping force range of 20kN-120kN*
• Large pad surface enables high thermal dissipation
• Additional frame sizes coming soon to meet the needs of a range of applications
• Designed for simplified service and repair
• Optional wear and engagement sensor
• Organic and sintered friction available

Engineered for hydraulic actuation, the DPA brake’s robust design is able to withstand the tough operating conditions associated with industrial applications. Additionally, it boasts a long lining life, making it a cost-effective and reliable choice for top drive brakes, conveyors, parking brakes and more.

Now available in two sizes - 200DPA and 250DPA!

• Large friction area for long life and reduced maintenance​
• Guide pins transmit torque away from friction shoes to prevent piston seal leakage ​
• Specified on TDS-11 Top Drives
• Two sizes available

• Offer both air-actuated and failsafe brakes​
• Lever mechanism ensures simple but effective operation​
• Maximum braking force: 32,000 N – 36,600 N​
• Maximum pressure: 6 bar

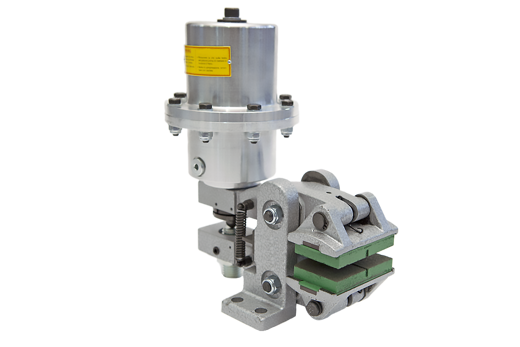

• Available with levered or direct thruster, either oil or spring applied​
• Available on/off and friction wear indicators for maximum safety​
• Configurations for extreme environmental conditions offered​
• Maximum braking force: 15,987 N – 42,000 N​
• Maximum pressure: 100 bar
