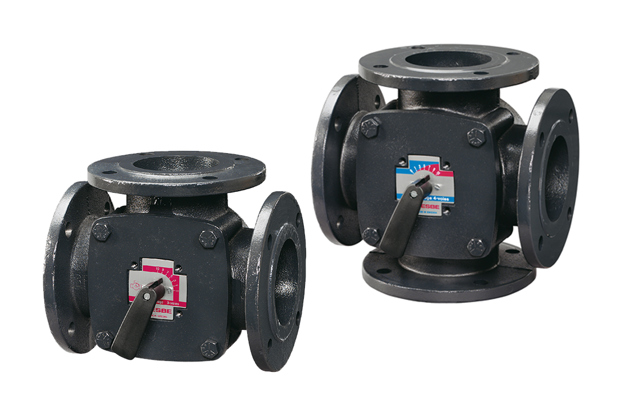

ESBE Type F Mixing Valves

3-Way and 4-Way Mixing Valves

ESBE Type F valves are ideal for mixing or diverting applications in heating and cooling systems. The mixing proportions are adjusted manually or controlled by the means of a motorized actuator that receives an input signal from a reset controller or DDC system. The scale is graduated on both sides and can be turned, allowing a choice of mounting positions.

Features and benefits

Rotary design allows for flexibility in field piping layouts.

Double mixing function for 4-way valve, reduces the risk of condensation within the heat source.

Valve position face plate is printed on both sides and can be rotated allowing a choice of valve mounting positions.

Easily adaptable with the following ESBE motorized actuators:

90 Series (electronic)
ARC/ARD Series.

Suitable fluid of 100% water or glycol mixture (maximum 50% glycol) for heating or cooling closed loop systems.

Products

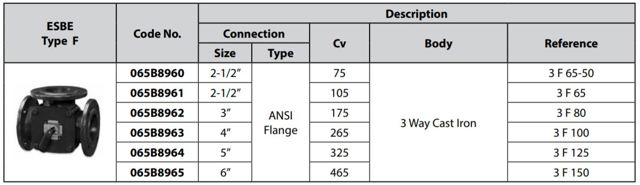

3-Way Valves

Ideal for mixing or diverting applications in heating and cooling systems. The required system temperature is obtained by adding a suitable portion of return water to the boiler flow. The mixing proportions are adjusted manually or, in automatically controlled applications, by means of an actuator (driven from a reset controller or DDC system). The scale is graduated on both sides and can be turned, allowing a choice of mounting positions.

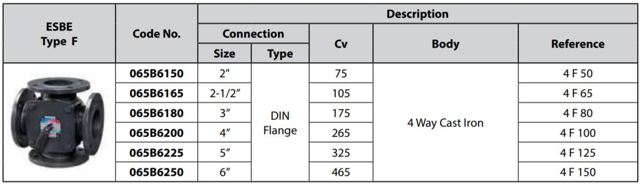

4-Way Valves

Designed for use in commercial or residential heating and cooling systems, to control and distribute water or non-corrosive liquids to different zones. The ESBE four-way valve features a double mixing function. When hot water from the boiler is mixed with the return water, the temperature of the returned water rises (higher than can be achieved with a 3- way valve), reducing the risk of condensation and assuring a longer boiler life. The mixing proportions can be adjusted manually, or in automatically controlled applications, by means of a control actuator. The scale is graduated on both sides and can be turned, allowing a choice of mounting positions.

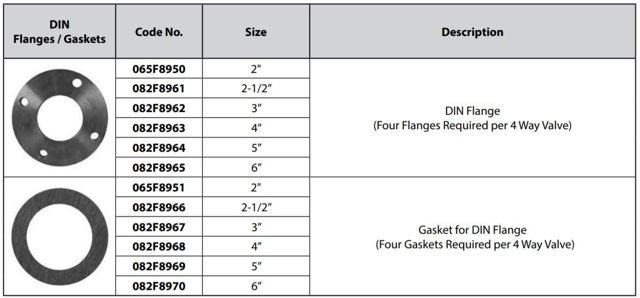

DIN Flange & Gaskets

Sets for use with ESBE F Series 4-way mixing valves.

Dimensions

Applications

3 Way Mixing with Setpoint Control

Typical piping schematic for electronic temperature control provides a fixed temperature for radiant floor circuits or snow/ice melt.
_{*CRA 112/122 can control up to two unique temperature setpoints based on external input signal.}

3 Way Diverting with Setpoint Control

Typical piping schematic for electronic temperature control provides a fixed space or discharge temperature for a variety of uses such as air handlers. Alternate sensor location allows for return temperature protection to heat source.
_{*CRA 112/122 can control up to two unique temperature setpoints based on external input signal.}

3 Way Mixing or Diverting

Typical primary/secondary piping schematic.

4 Way Mixing with Setpoint Control

Typical 4-way motorized valve for use with radiant floor heating. ARA600 or 90 Series actuators used with outdoor reset.

Snow & Ice Melt - 1 Zone Regulated

Automatic control of supply temperature regulated snow and ice melt systems with many advanced features.
