ESBE ARC/ARD Series High Torque Actuators

High torque rotary actuators

The ESBE ARC/ ARD series of high torque rotary low voltage motorized actuators provide a 90° operating range of rotation. This series of actuators is suitable for assembly to ESBE series 3F and 4F valves that range from 2” to 6” in size and alternatively applied as damper actuators. The appropriate mounting kit to assemble the motorized actuator to either an ESBE valve or a damper are included. For the ARD actuator series, incorporated into its design is a spring return, i.e. safety function, to rotate the valve to a close position in the event of power failure or removal of signal.

Features and benefits

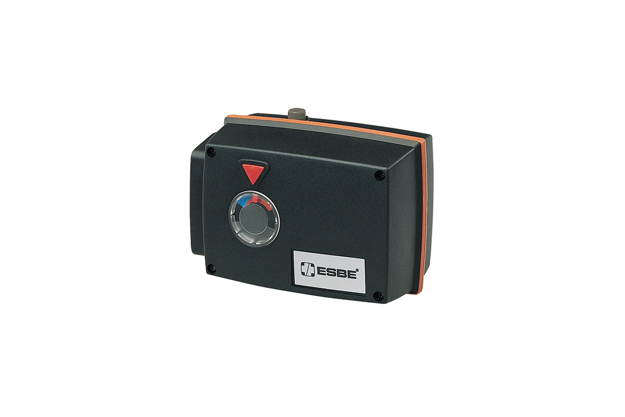

Increased torque ability (in comparison to 90 Series motorized actuators), to overcome a high differential pressure across the valve.

  • ARC: 265.5 in-lb (30 Nm)
  • ARD: 177 in-lb (20 Nm)

Included mounting kits specific for ESBE Type F valves and damper square or round shafts.

Safety spring close function feature: ARD269.

2-point spring close function: ARD257.

Direct mount actuator design with included mounting kit.

Easy manual override of motorized actuator.

Adjustable limitation of 90° rotation on opening or closing.

Low voltage power supply 24VAC or 24VDC, pre-wired with wire whip.

Documents

Documents
Type Name Language Valid for Updated Download File type
Installation guide ESBE ARC Actuator Instructions - Damper Assembly English United States 04 Feb, 2019 1.8 MB .pdf
Installation guide ESBE ARC Actuator Instructions - Electric Settings English Multiple 04 Feb, 2019 1.1 MB .pdf
Installation guide ESBE ARC Actuator Instructions - Valve Assembly English Multiple 04 Feb, 2019 5.4 MB .pdf
Data sheet ESBE ARC/ARD Series Actuator Datasheet English United States 05 Feb, 2019 1.6 MB .pdf
Installation guide ESBE ARD Actuator Instructions - Damper Assembly English Multiple 04 Feb, 2019 2.2 MB .pdf
Installation guide ESBE ARD Actuator Instructions - Electric Settings English United States 05 Feb, 2019 414.8 KB .pdf
Installation guide ESBE ARD Actuator Instructions - Valve Assembly English Multiple 05 Feb, 2019 1.4 MB .pdf
Catalog Hydronic Specialties Controls Catalog and Application Guide English Multiple 25 Mar, 2022 2.4 MB .pdf

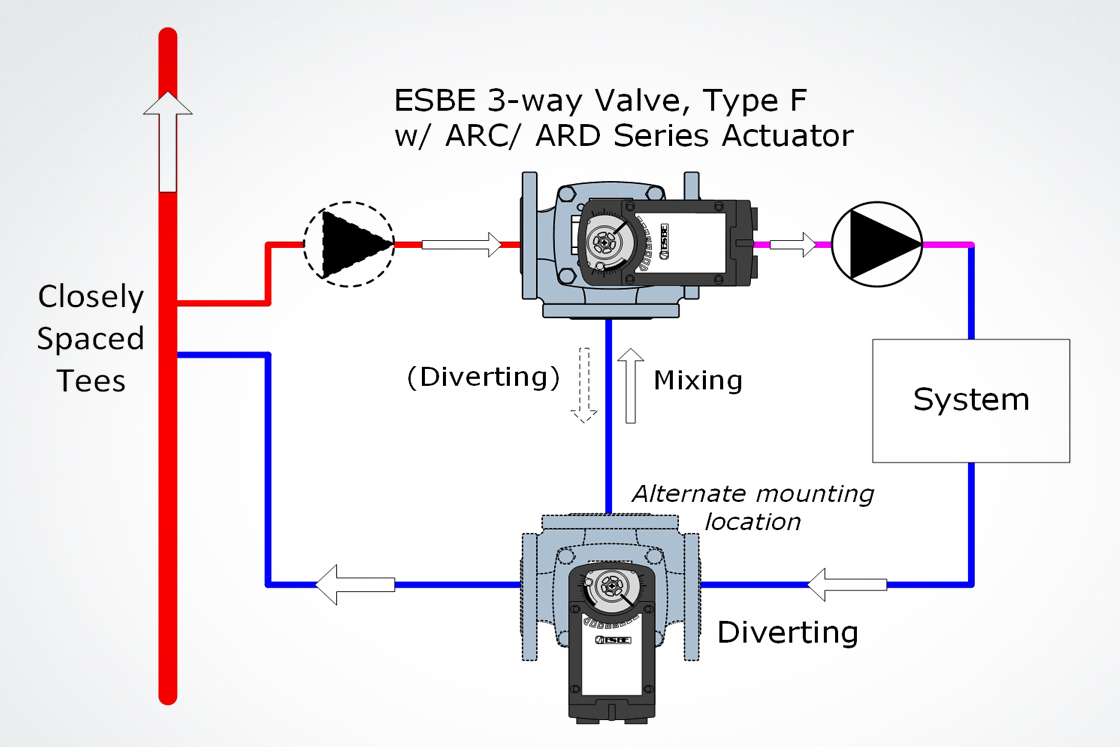

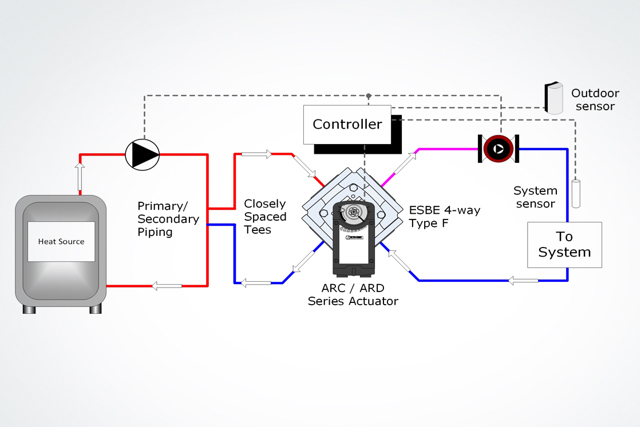

Applications

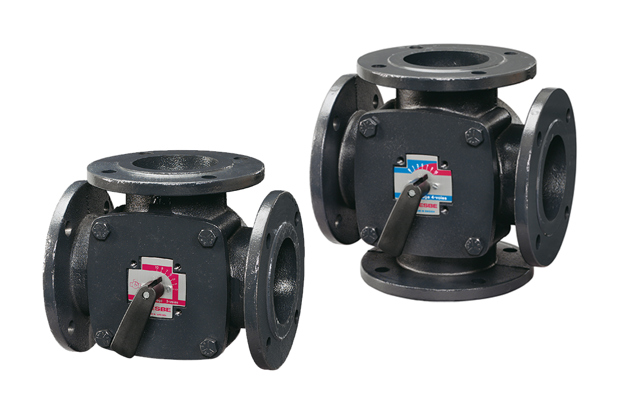

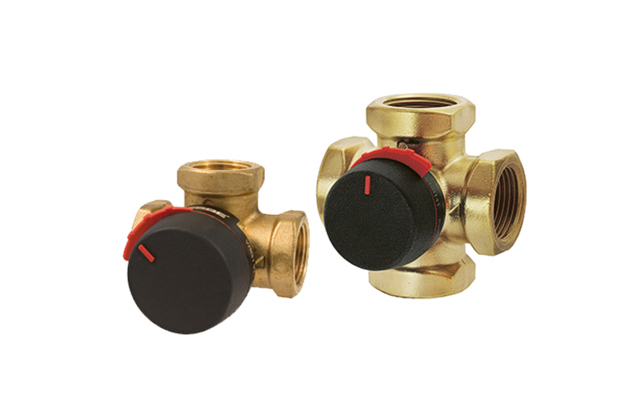

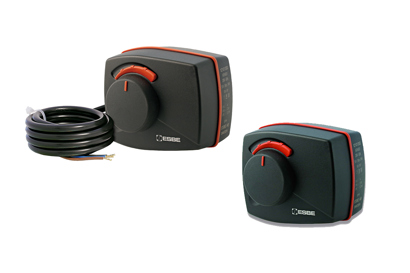

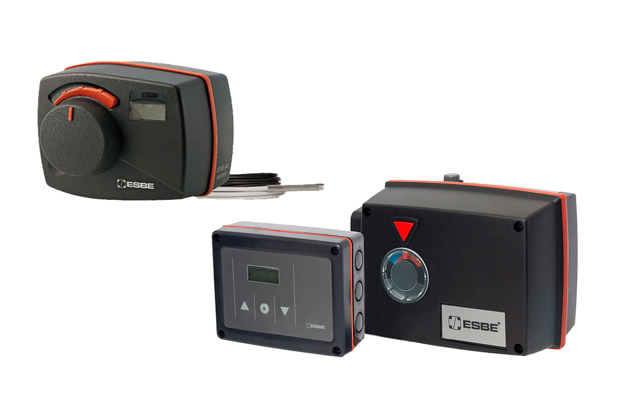

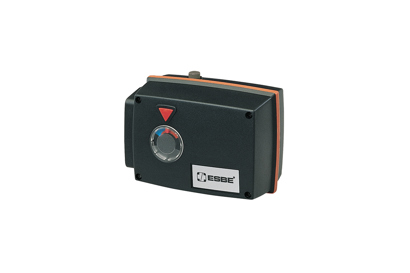

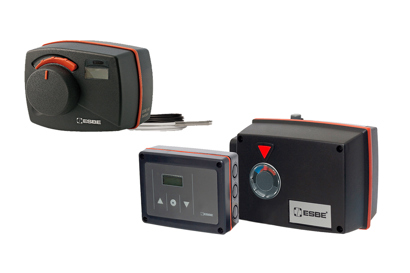

Related products
