ESBE 90 Series Actuators

  • Overview
  • Products
  • Applications
  • Documents
  • Related products
  • Support

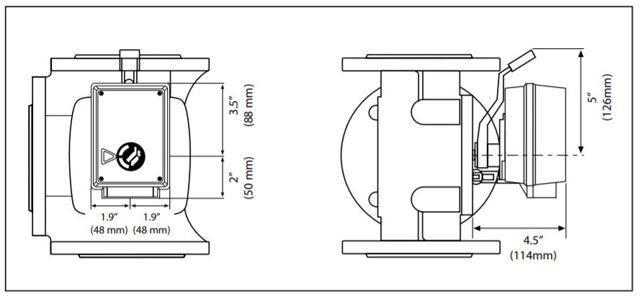

Direct mount, 24V motorized actuator

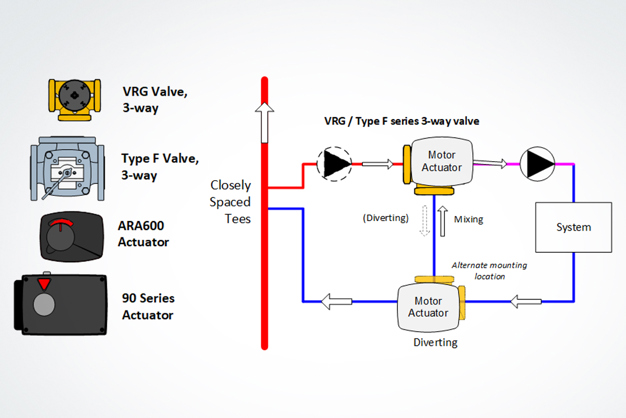

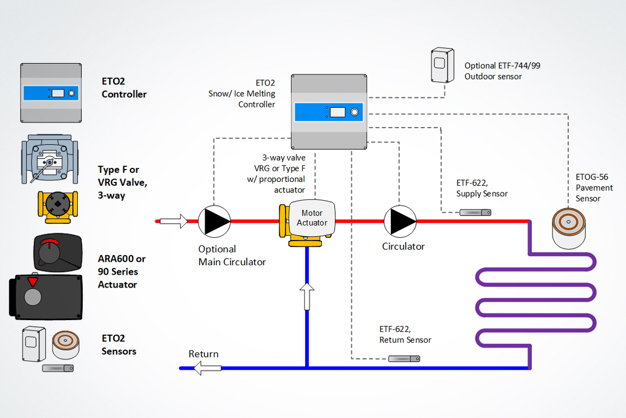

The ESBE 90 Series of 24V electronic motorized actuators are direct mount to rotate ESBE 3 & 4-way rotary valves in hydronic heating and cooling applications.

The 90 Series motorized actuator provides additional torque compared to the ARA series, and can be installed on all ESBE 3 & 4-way rotary valves, in sizes from ½” to 6”.

90 Series linkage kits are also available capable of adapting the motorized actuator to Viessmann, Honeywell, Centra DR/ZR, Landis & Staefa and TA VTR styles of valves.

Features and benefits

Compact design to fit in any space.

Direct mount actuators are easily installed.

Easy manual override of motor actuator.

Adjustable rotation between 30° and 180°

Floating 3-point and proportional signal operation.

Several motors with an auxiliary contact switch activated through an adjustable cam.





Type Name Language Valid for Updated Download File type
Data sheet ESBE 90 Series Actuator Datasheet English Multiple 08 Jul, 2016 697.1 KB .pdf
Installation guide ESBE 90 Series Actuator Instructions_VIKID122 English United States 12 Feb, 2009 1.3 MB .pdf
Installation guide ESBE 90 Series Actuator to VRG Valve Mounting Kit Instructions (193B1616)_VIKIU122 English United States 06 Mar, 2014 9.7 MB .pdf
Catalog Hydronic Specialties Controls Catalog and Application Guide English Multiple 25 Mar, 2022 2.4 MB .pdf

Related products

  • if (isSmallPicture) { ARA Series Actuators; } else if (isBigColumns) { ARA Series Actuators } else { ARA Series Actuators }
    ESBE ARA Series Actuators

    ESBE ARA 600 Series actuators are compact, motorized actuators for operating ESBE mixing valves up to 2". The 24V actuators replace the 60 Series, have improved mounting and operating functions and can easily be manually operated.

  • if (isSmallPicture) { ESBE VRG Mixing Valves; } else if (isBigColumns) { ESBE VRG Mixing Valves } else { ESBE VRG Mixing Valves }

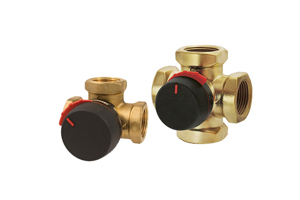

    ESBE VRG Mixing Valves

    The ESBE VRG series is a range of compact, low leakage brass valves. Available in either a 3-way or 4-way versions suitable in either mixing or diverting applications.

    When assembled with the ARA600 or 90 Series motorized actuator, and wired to a controller, the VRG assembly provides regulating accuracy.

  • if (isSmallPicture) { ESBE ARC/ARD High Torque Rotary Actuator Series; } else if (isBigColumns) { ESBE ARC/ARD High Torque Rotary Actuator Series } else { ESBE ARC/ARD High Torque Rotary Actuator Series }
    ESBE ARC/ARD Series High Torque Actuators

    The ESBE ARC/ ARD series of high torque rotary, low voltage, motorized actuators provide a 90°operating range of rotation. Suitable for assembly to ESBE Type F series, 3 and 4-way valves that range from 2” to 6” in size and alternatively applied as damper actuators.

  • if (isSmallPicture) { ESBE CRA Series Setpoint Controls; } else if (isBigColumns) { ESBE CRA Series Setpoint Controls } else { ESBE CRA Series Setpoint Controls }
    ESBE CRA Series Setpoint Controls

    The ESBE CRA Series of setpoint controls includes a combined motorized actuator and constant flow temperature control with an adjustable temperature setting.

    The easy to use CRA series includes an LCD backlit digital display and is available in two varieties; the CRA112 - for use with ESBE valves up to 2", and the CRA122 - for use with all sizes of ESBE valves.

  • if (isSmallPicture) { ESBE Type F Mixing Valves; } else if (isBigColumns) { ESBE Type F Mixing Valves } else { ESBE Type F Mixing Valves }
    ESBE Type F Mixing Valves

    ESBE Type F valves are flanged valves made of high-performing cast iron and available up to 6" in size and suitable for mixing or diverting applications in heating and cooling systems. Type F valves assemble to the 90 Series or ARC/ARD Series of motorized actuators.


Hydronic heating technical support

Technical Support

Find information on hydronic heating troubleshooting, including our top frequently asked questions, our video library, links to hydronic heating literature, a link to our newsletter, and more.
