Quick and easy installation, with a variety of selectable functions...

The ARA 600 Series of motorized actuators replaces the 60 Series of 24V motorized actuators mounted to ESBE 3 and 4-way rotary valves. The ARA Series have improved mounting and operating functions resulting in a simpler installation.

These direct-mounted motorized actuators are capable of mounting to the VRG styles of 3 and 4-way rotary valves. In addition, the ARA Series is backward compatible to the discontinued MG and G series of valves.

Available in 3-Point floating with or without an auxiliary switch and proportional, which cross over to the 60 Series actuators. However, there are additional varieties of motorized actuators to select from; a 2-point actuator to different run-time options. The variety of options provide flexibility in application selecting.

Features and benefits

Fewer parts and tools required for installation.

Increased stabilization between actuator and valve.

Backward compatible with ESBE MG and G series of 3 & 4-way rotary valves.

Reduced profile and size of motor actuator.

Easier mounting procedure.


Recommended for mixing and diverting applications.

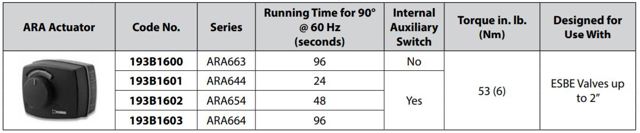

3 Point Floating 24VAC

Recommended for diverting applications & can also be wired as 3 Point.

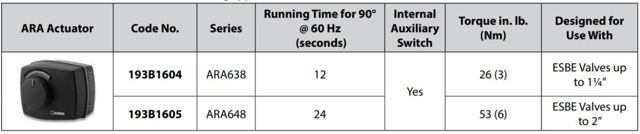

2 Point 24VAC

Recommended for mixing and diverting applications. Supplied with internal wiring terminal, cable is included with ARA639 however is not wired to the ARA actuator. The ARA659 wire whip is wired to the ARA actuator.

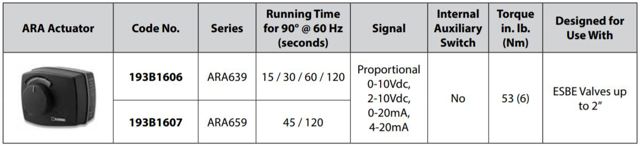

Proportional 24V AC/DC



Type Name Language Valid for Updated Download File type
Notification ESBE 60 Series to ARA 600 Series Actuator Cross-over_VEKIB122 English United States 18 Mar, 2010 386.2 KB .pdf
Installation guide ESBE ARA 600 2-Point Actuator Instructions_VIKIQ122 English United States 08 Mar, 2010 1.4 MB .pdf
Installation guide ESBE ARA 600 3-Point Actuator Instructions_VIKIR122 English United States 08 Mar, 2010 1.4 MB .pdf
Installation guide ESBE ARA 600 Proportional Actuator Instructions_VIKIS122 English United States 08 Mar, 2010 1.4 MB .pdf
Data sheet ESBE ARA 600 Series Actuator Datasheet_VDKII202 English United States 26 Sep, 2019 332.3 KB .pdf
Catalog Hydronic Specialties Catalog English Multiple 21 Mar, 2017 2.0 MB .pdf
