EKE 1 A,B,C,D and P controller FAQ

If you want precise control of superheat in your air conditioning system, choose a reliable and effective superheat controller - here the EKE product range is a good choice. Our controllers will help you achieve high energy efficiency and reliable operation at all times.

EKE 1 A,B,C and D

What do I do when EKE 1A,B,C and D controllers is reset itself?

The reason could be that EKE 1A,B,C and D controllers has reset its settings after 32000 hours of operation and a consequent power cut off. This can be corrected by the below methods.

If the software version is 2.04, use the patch provided to permanently patch the product.

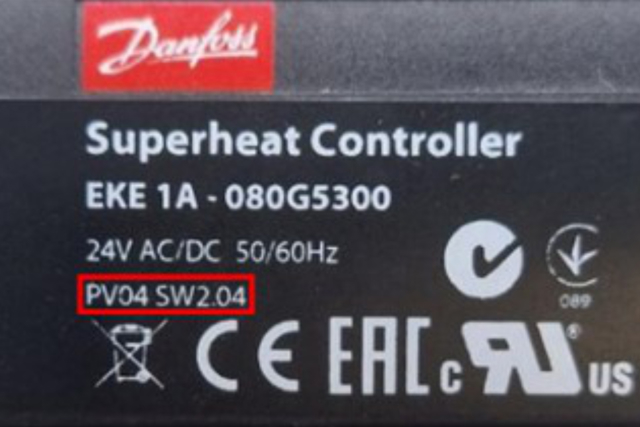

Check product label for identification of software version. Below is an example of where to find the information on the product label.

Link to download Patch for EKE 2.04
This video will assist you on how to do the patch.
If the software version is 2.02 or lower, check the video and instructions to reset and reconfigure the product.

What should I do to patch EKE 1A,B,C and D software version 2.04?

If the software version is 2.04, use the patch provided to permanently patch the product.

Link to download Patch for EKE 2.04

Below video will assist you on how to do the patch.

Should I patch EKE 1A,B,C and D software version 2.07?

This SW version already includes the patch. No action needed from your side.

Should I patch EKE 1A,B,C and D software version 2.02 and below?

No, these versions only have temporary solution of reset and reconfigure the product. The patch should not be used in this case.

Check the below video and instructions to reset and reconfigure the product.

EKE 1P controllers

What do I do when the EKE 1P controller resets itself?

The reason could be that the EKE 1P controller has reset its settings after 32.000 hours of operation and a consequent power cut off.

It can happen with EKE 1P controller software (SW) 2.14 or older and if the controller is used with Application 2 as standalone driver (for example as valve driver with AK-CC55) or with Application 1 as extension module for AK-PC 572 but with User Defined valve. In both cases the recommendation is to update the controller to SW 2.15 or newer.

If EKE 1P is used as extension module for AK-PC 572 with a standard Danfoss valve, no further action is needed.

Here you can find step-by-step instructions on how to update the EKE 1P software.

Here you can find SW version 2.15 for updating.

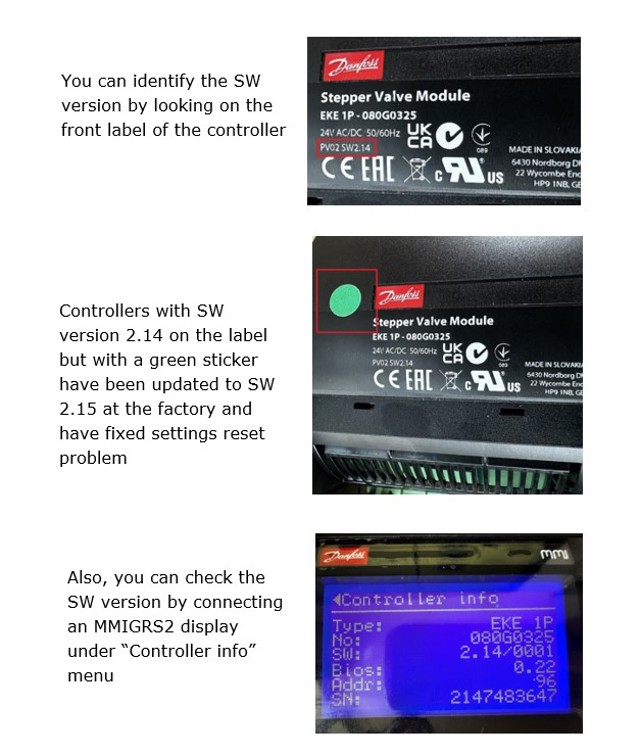

How to identify the EKE 1P software (SW) version?

Will the previous settings be preserved after the upgrade?

No. After the update, the settings will be reset to default values, so make sure you note down the controller settings before updating.

How can I save EKE 1P settings before update?

By reading the settings on the remote display.

Can I use EKE 1P software with EKE 1A/B/C/D and vice versa?

No. SW for the EKE 1P cannot be used with EKE 1A/B/C/D as well as EKE 1A/B/C/D SW cannot be used with the EKE 1P.
