An indirect substation is used when district heating network conditions, such as pressure and temperature, do not allow direct connection. When a substation is connected indirectly, a heat exchanger provides energy-efficient heat transfer. It also ensures that the primary network supply side and the secondary building installation side remain safely separated.
In this way, the building application works regardless of pressure or temperature variations in the district heating network (hydronic balancing) and is safe from pipe breaks or leaks.

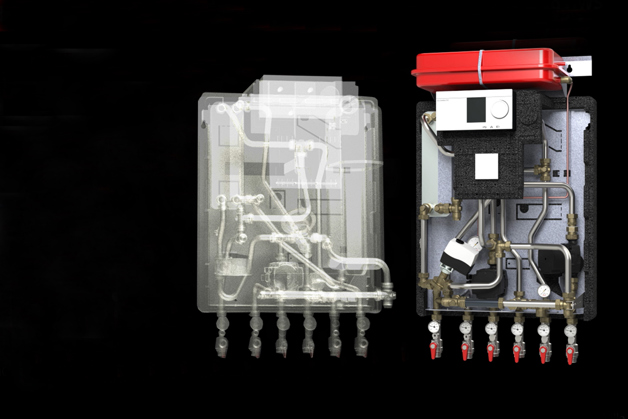

Danfoss indirect substations are self-contained units that are generally wall-mounted. They can support single or multiple heating circuits, with or without domestic hot water production on the primary or secondary side.
These advanced solutions are also available with an electronic controller for weather compensation. This ensures easy and energy-efficient operation while simultaneously allowing central monitoring and energy consumption transparency.
Features and benefits
Advanced solutions available also with an electronic controller for weather compensation
Indirect substations with Micro Plate™ heat exchangers provide energy efficient heat transfer
DSA - Danfoss Station Advanced Compact
Find more technical information about DSA - Danfoss Station Advanced Compact.
DSP - Danfoss Station Pre-engineered
Find more technical information about DSP - Danfoss Station Pre-engineered.
A substation for indirect heating has a heat exchanger separating the primary flow from the secondary flow. Indirect substations are recommended for PN16-networks and higher pressure classes. Substations in this category are normally supplied with connection pipes for a domestic hot water cylinder on the primary side for the fitted constructions, and on the secondary side for the welded constructions.
Indirect heating and domestic hot water
A substation for indirect heating has a heat exchanger separating the primary flow from the secondary flow. Indirect substations are recommended for PN16-networks and higher pressure classes.
Indirect or direct heating and domestic hot water cylinder
Substations for indirect heating have a heat exchanger separating the primary flow from the secondary flow. Indirect substations are recommended for PN16 networks and higher pressure classes. Substations for direct heating have no heat exchanger separating the primary flow from the secondary flow and are recommended for maximum PN10 or PN6 networks. The domestic hot water is heated in a cylinder by the district heating water flow in a coil within the cylinder.
Solar heating plant reduces CO2 emissions by 15,700 tonnes annually
The world’s largest solar heating plant in Silkeborg, Denmark harnesses energy to heat the homes and workplaces of 40,000 citizens. It supplies 18-20% of the annual heat consumption in the city of Silkeborg, Denmark, which has an ambitious target of CO2 neutrality in heat production by the year 2030.
District energy as the heating and cooling solution in Teknopark Istanbul, Turkey
Application: Production of heating, cooling and domestic hot water
Challenge: Design and construct customized district energy solutions for all buildings on the park
Solution: Danfoss designed and constructed 3 pre-assembled DSE substations containing control valves for the heating, cooling and domestic hot water, heat meters, self-acting controllers and electronic controllers connected to a central Building Management System.
District heating compact stations in Mikado House, Orestaden, Denmark
Application: Production of heating and domestic hot water
Challenge: Design and construct a customized compact district heating station
Solution: Danfoss designed and constructed a pre-assembled station according needs and helped save 14 days of construction work
Modernized district heating in a hospital, Belgrade, Serbia
Application: Heating + Domestic Hot Water production by district heating substations
Challenge: Modernize old and inefficient heat and hot water system
Solution: 58 fully equipped prefabricated substations
Renovation of an apartment building with flat stations, Hamburg, Germany
Until 2014, the apartments in this multi-family building located in the Hamburg suburb of Bergedorf were heated using electrical water heaters and supplied with domestic hot water using electrical instantaneous water heaters. Now, after the renovation, a block heating station in the basement of the building provides heating distributed via flat stations installed in the stairwell and used for decentralized domestic hot water. Tenants were able to stay in their apartments throughout the renovation process.
Flat stations in apartment building in Hamburg, Germany
Visitors to Hamburg’s Henriette-Herz-Ring who let their gaze drift upward will discover two shipping containers on the roof of the apartment building. They are the visible result of an innovative planning initiative to replace inefficient gas boilers with Danfoss flat stations. The highlight of this renovation: residents did not have to vacate their apartments.
