MBS 9200 milibar pressure transmitter for general purpose applications

MBS 9200 milibar pressure transmitter is designed for use for general purpose applications. It is designed for use in general purpose applications as well as applications within level measurement.

The 4 – 20 mA and ratiometric 10-90% signals cover from 40 – 400 mbar as well as bidirectional ranges.

The robust design has excellent vibration stability and a high degree of EMC/EMI protection.

View the 3D model

Features and benefits

Full scale span from 40 – 400 mbar

  • bidirectional ranges available, e.g. -40 – 70 mbar etc.
  • lowest zero point –150 mbar
  • max full scale 250 mbar

Digital temperature compensated

Output signals 4-20 mA and ratiometric 10-90%

Excellent shock and vibration robustness

Enclosure and wetted parts of stainless steel (AISI 316L)

For use in Zone 2 explosive atmosphere

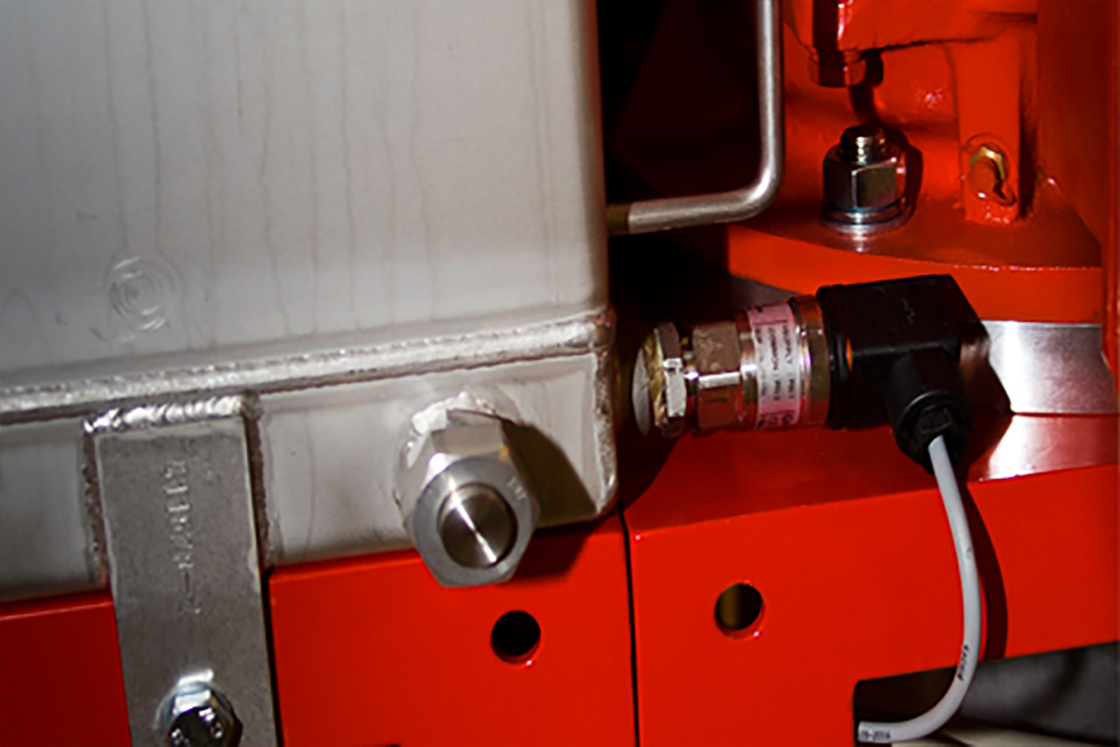

Danfoss MBS 9200 mounted

Substantial savings on firefighting systems at Danfoss Semco

Pressure sensors from Danfoss Sensing Solutions help Danfoss Semco control water level in vital firefighting systems delivered to customers around the world. The innovative use of MBS 9200 provides substantial savings in assembly costs.

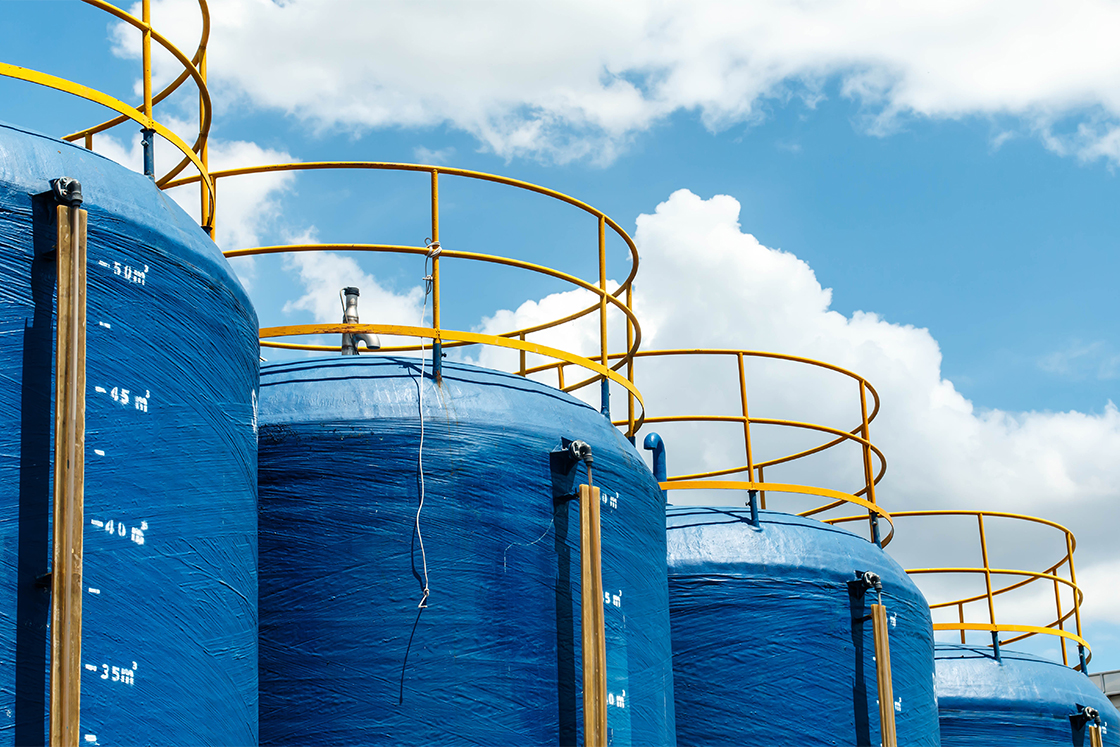

Water tanks

New solutions for precise and reliable level measurement

Vital systems such as firefighting and water utilities rely on access to water at any time. Buffer tanks are important components in these systems and serve as local water reservoirs, ensuring that the required amount of water is present when required.

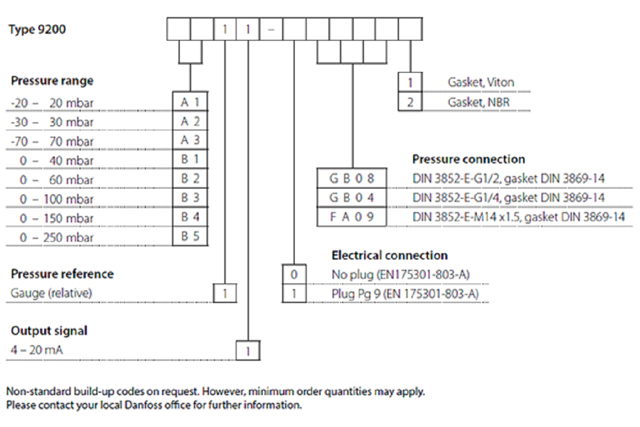

Product ordering key

Please contact your local Danfoss Office for further information.

Sensors key mbs 9200

Documents

Documents
Type Name Language Valid for Updated Download File type
Data sheet MBS 9200 Low Pressure Transmitter for Industrial Applications Spanish, Castilian Multiple 16 Mar, 2023 1.2 MB .pdf
Data sheet MBS 9200 Low Pressure Transmitter for Industrial Applications Polish Multiple 16 Mar, 2023 1.2 MB .pdf
Data sheet MBS 9200 Low Pressure Transmitter for Industrial Applications Chinese (CN) Multiple 16 Mar, 2023 1.3 MB .pdf
Data sheet MBS 9200 Low Pressure Transmitter for Industrial Applications French Multiple 16 Mar, 2023 1.2 MB .pdf
Data sheet MBS 9200 Low Pressure Transmitter for Industrial Applications German Multiple 16 Mar, 2023 1.2 MB .pdf
Data sheet Pressure transmitter, type MBS 9200 Russian Multiple 16 Mar, 2023 1.3 MB .pdf
Data sheet Pressure transmitter, type MBS 9200 English Multiple 03 Mar, 2021 1.0 MB .pdf
Data sheet Pressure transmitter, type MBS 9200 Italian Multiple 16 Mar, 2023 1.2 MB .pdf

Approvals

ATEX compliance

ROHS compliance

CE-marked

UL

Approval Certificates

Type Name Approval authority Language Valid for Download Expiration date File type
EU-UK Declaration Danfoss EU-UK 064G9615.11 English Multiple 2.8 MB .pdf
Explosive Safety Certificate UL E227388 English Multiple 68.7 KB .pdf
Electrical Safety Certificate UL E311982 English Multiple 804.3 KB .pdf
