High performance

Enjoy the flow-sharing functionality of the PVG 100 – more performance with less horsepower under any conditions.

The flow-sharing technology of the post-compensated, load-sensing PVG 100 is ideal in systems where flow demand regularly pushes supply to the limits.

The modular PVG range is designed for maximum flexibility.

New PVG 100 high flow options tackle the heaviest loads

The new PVG 100 high flow post-compensated valve raises port flows with less work - pump margin of 15 bar [217 psi] - and lowers the return pressures. PVG 100 high flow options meet the increased demands for high efficiency and high flow solutions.

Sharing the flow

The PVG 100 distributes flow to multiple machine functions proportional to their load and flow requirements. As such, when demand exceeds supply each function remains up and running – on proportionally less flow. In the face of tougher emissions laws, there really is no better way to improve performance with less power and reduced energy consumption.

Machine benefits

Flow sharing for optimum controllability and user-friendliness

Load-independent flow control for precise operation and improved productivity

Load-sensing technology for higher efficiency, safety, reduced energy consumption, and longer system lifetime

Product features

Modular design, which can be combined with PVG 32

Post compensated flow sharing valve

Open spool-ends for mechanical actuation

Optimized return flow characteristics, which minimizes pressure loss

PVG proportional valves portfolio

PVG proportional valves portfolio

Whether you’re moving the largest of loads or need the precise control that feels like an extension of the operator’s own hand, the family of Danfoss PVG proportional valves can address your unique challenges while delivering increased machine productivity and keeping pace with today’s shorter product cycles.

Contact us

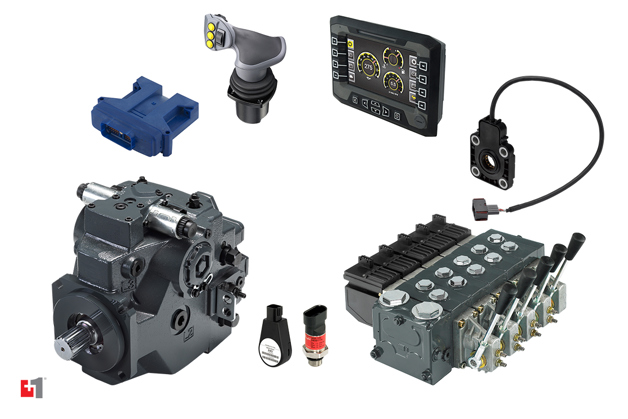

PLUS+1® programmable and compliant hardware

Maximized machine productivity − PLUS+1® programmable and compliant hardware secures simple integration in optimized systems.

Documents

Documents
Type Name Language Valid for Updated Download File type
Data sheet PVG 100 Load Independent Proportional Valve Data Sheet English Multiple 09 Mar, 2015 597.7 KB .pdf
User guide PVG 100 Load Independent Proportional Valve Technical Information Manual Japanese Japan 09 Mar, 2015 6.3 MB .pdf
User guide PVG 100 Load Independent Proportional Valve Technical Information Manual Chinese (CN) China 09 Mar, 2015 7.2 MB .pdf
User guide PVG 100 Proportional Valve Group Technical Information English Multiple 15 Apr, 2021 8.9 MB .pdf
Promotion material PVG Proportional Valve Brochure Chinese (CN) China 10 Mar, 2015 12.1 MB .pdf
Promotion material PVG Proportional Valve Brochure English Multiple 09 Mar, 2015 1.3 MB .pdf
