Motion control valves

Precision motion control valves for reliable performance

Elevate your machinery with our motion control valves, enhancing stability and efficiency while eliminating bothersome valve noise. Explore the market's most extensive selection of motion control valves, featuring standard, part-balanced, fully-balanced, and zero-differential designs, catering to all your hydraulic system needs.

Learn more

Features and benefits

Flow rating up to 300 l/min [80 US gal/min]

Pressure rating up to 430 bar [6200 psi]

Stability

Motion control valves are crucial components in hydraulic circuits designed to give static and dynamic control of loads. With multiple design types-available, Danfoss has the product available to ensure stable control of your load. In even the toughest applications where the machine framework introduces instability (telehandler, cranes, concrete pump trucks, etc) , we have a solution that will ensure safety, stability, and efficient operation of your hydraulic system.

Safety

Danfoss motion control valves are a critical piece of ensuring safety in your hydraulic system. Some benefits of our motion control valves include:

Preventing load runaway: Help prevent sudden and uncontrolled movements of loads, which could pose a safety hazard to operators or damage equipment.
Protecting against hose breaks: By controlling fluid flow during load reversal, our valves can help prevent pressure spikes that can damage components in the hydraulic system. If directly mounted to the actuator, they also prevent against uncontrolled motion in the case of a hose break.
Load-holding capability: Motion control valves can hold a load in position, even when the hydraulic system is turned off or the power source is disconnected, enhancing safety during maintenance or in the event of system failures.

Functionality

Motion control valves are primarily designed to control the flow of hydraulic fluid in one direction while allowing it to move freely in the opposite direction when certain conditions are met. This function is essential for maintaining load control, preventing unintended motion, and ensuring safe and stable operation.

Product range

Overcenter valves, standard

Product Code	Cavity	Flow	Pressure
CP448-1	CP08-3L	19 l/min [5 US gpm]	350 bar [5000 psi]
1CE30	A6610	30 l/min [8 US gpm]	350 bar [5000 psi]
1CEH30	A6610	30 l/min [8 US gpm]	430 bar [6200 psi]
1CE90	A12336	90 l/min [24 US gpm]	350 bar [5000 psi]
1CEH90	A12336	90 l/min [24 US gpm]	430 bar [6200 psi]
1CE120	A877	120 l/min [32 US gpm]	350 bar [5000 psi]
1CE140	A20081	140 l/min [37 US gpm]	420 bar [6100 psi]
1CE300	A6935	300 l/min [80 US gpm]	350 bar [5000 psi]
1SE30	A20090-T11A	30 l/min [8 US gpm]	350 bar [5000 psi]
1SE90	A20092-T2A	90 l/min [24 US gpm]	350 bar [5000 psi]
1SE140	A20094-T17A	140 l/min [37 US gpm]	420 bar [6100 psi]
VCB 06-EN	NCS06/3	60 l/min [16 US gpm]	350 bar [5000 psi]

Overcenter valves, part balanced

Product Code	Cavity	Flow	Pressure
1CER30	A6610	30 l/min [8 US gpm]	350 bar [5000 psi]
1CERH30	A6610	30 l/min [8 US gpm]	430 bar [6200 psi]
1CER90	A12336	90 l/min [24 US gpm]	350 bar [5000 psi]
1CERH90	A12336	90 l/min [24 US gpm]	430 bar [6200 psi]
1CER140	A20081	140 l/min [37 US gpm]	420 bar [6100 psi]
1SER30	A20090-T11A	30 l/min [8 US gpm]	350 bar [5000 psi]
1SER90	A20092-T2A	90 l/min [24 US gpm]	350 bar [5000 psi]
1SER140	A20094-T17A	140 l/min [37 US gpm]	420 bar [6100 psi]

Overcenter valves, fully balanced

Product Code	Cavity	Flow	Pressure
1CEB30	A6610	30 l/min [8 US gpm]	350 bar [5000 psi]
1CEB90	A12336	90 l/min [24 US gpm]	350 bar [5000 psi]
1CEB120	A877	120 l/min [32 US gpm]	350 bar [5000 psi]
1CEB300	A6935	300 l/min [80 US gpm]	350 bar [5000 psi]
1SEB30	A20090-T11A	30 l/min [8 US gpm]	350 bar [5000 psi]
1SEB90	A20092-T2A	90 l/min [24 US gpm]	350 bar [5000 psi]
1CEBD30	A20530	30 l/min [8 US gpm]	350 bar [5000 psi]
1CEBD90	A12196	90 l/min [24 US gpm]	350 bar [5000 psi]
1CEBD120	A6726	180 l/min [47 US gpm]	400 bar [5800 psi]
1CEBD300	A13098	300 l/min [80 US gpm]	350 bar [5000 psi]

Overcenter valves, two stage counterbalance

Product Code	Cavity	Flow	Pressure
1CEL30	A6610	30 l/min [8 US gpm]	380 bar [5500 psi]
1CEL90	A12336	90 l/min [24 US gpm]	380 bar [5500 psi]
1CEL140	A20081	140 l/min [37 US gpm]	380 bar [5500 psi]
1SEL30	A20090-T11A	30 l/min [8 US gpm]	380 bar [5500 psi]
1SEL90	A20092-T2A	90 l/min [24 US gpm]	380 bar [5500 psi]
1SEL140	A20094-T17A	140 l/min [37 US gpm]	380 bar [5500 psi]

Overcenter valves, zero differential

Product Code	Cavity	Flow	Pressure
1CPBD30	A20530	30 l/min [8 US gpm]	350 bar [5000 psi]
1CPBD90	A12196	90 l/min [24 US gpm]	350 bar [5000 psi]
1CPBD120	A6726	180 l/min [47 US gpm]	400 bar [5800 psi]
1CPBD300	A13098	300 l/min [80 US gpm]	400 bar [5800 psi]
1CPPD90	A12196	90 l/min [24 US gpm]	350 bar [5000 psi]

Overcenter valve assemblies

Product Code	Cavity	Flow	Pressure
1CEEC35	Catalog HIC	30 l/min [8 US gpm]	350 bar [5000 psi]
1CEEC95	Catalog HIC	90 l/min [24 US gpm]	350 bar [5000 psi]
1CEEC150	Catalog HIC	120 l/min [32 US gpm]	350 bar [5000 psi]
1CEEC350	Catalog HIC	300 l/min [80 US gpm]	350 bar [5000 psi]
1CEECSH35	Catalog HIC	30 l/min [8 US gpm]	350 bar [5000 psi]
1CEECSH95	Catalog HIC	90 l/min [24 US gpm]	350 bar [5000 psi]
1CEECSH150	Catalog HIC	120 l/min [32 US gpm]	350 bar [5000 psi]
1CEECSH350	Catalog HIC	300 l/min [80 US gpm]	350 bar [5000 psi]

Documents

Documents
Type	Name	Language	Valid for	Updated	Download	File type
User guide	ICS Motion Control Valves Technical Information	English	Multiple	15 Mar, 2024	8.6 MB	.pdf

Related products

HICs

Danfoss ICS specializes in Hydraulic Integrated Circuits (HICs) allowing customers to use our broad portfolio of cartridge valves to create innovative solutions for optimal machine control and performance.

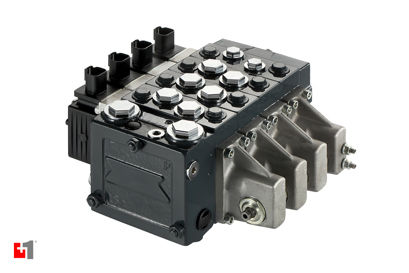

PVG 16 proportional valves
