Hydrokraft® heavy-duty closed-circuit piston pumps

Where to buy

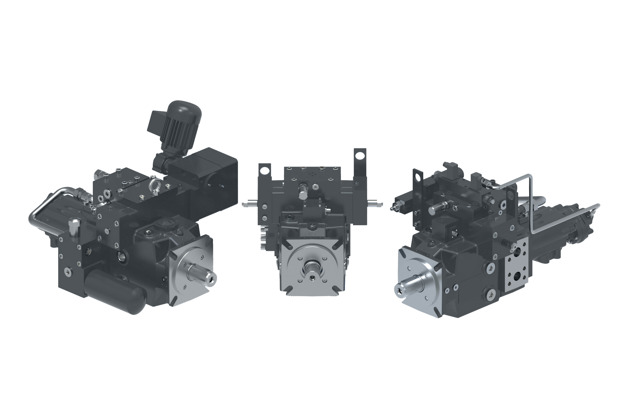

Tandem mounting

​Get maximum installation flexibility with the compact size and tandem mounting capability of TVW series heavy-duty variable closed-circuit piston pumps.​

Tandem Mounting

Expanded functionality

​Hydrokraft TVW series transmission pumps feature a through-drive design, an integrated FIST circuit, and a wide range of controls, which expands the pump’s application and functionality.​

Multiple combinations to meet your needs​

TVW series pumps come with a wide range of available integrated charge and pilot pressure pump combinations for single and combination units. Their through-drive design allows for multiple pump installations from a single shaft.​

​

Expanded functionality

Reliable operation and longer life​

TVW series pumps feature axial piston pumps with a swash plate design for reliable operation and a longer life. Plus, the pump’s rotating and pressure-loaded parts are pressure-balanced for greater efficiency and serviceability.​

Special design for closed-loop applications​

Build complete closed-loop systems for charge flow and flushing using our standard transmissions circuits with integrated valves and filters.​

Product range

Hydrokraft TVW series piston pumps

  • ​Oversize shaft and shaft bearings​
  • Large charge flow rates for low system temperature​
  • Fast response times​
  • Technology - Axial piston​
  • Displacement – 130 - 750 cc (8.0 to 45.0 cu in)​
  • Continuous pressure rating 350 bar (5,076 psi)​
  • Peak pressure up to 420 bar (6090psi). ​
  • Rated speed up to 1800 rpm​

​

Hydrokraft TVW
Applications
  • Marine cranes​
  • Thrusters​
  • Hydraulic power units​
  • Pulp and paper​
  • Turbine starters​
  • Tunnel boring machines​
  • Presses ​
  • Steel/Iron production​
  • Civil-hydro​
Designed to perform, built to last

A leader in hydraulics for over 100 years, the Vickers by Danfoss portfolio of industrial solutions deliver legendary performance, even under the most extreme conditions.
