Fan Drive Systems

MP1 motors can be used in different fan drive circuits along with other Danfoss products, offering great versatility and flexibility to fit your needs.

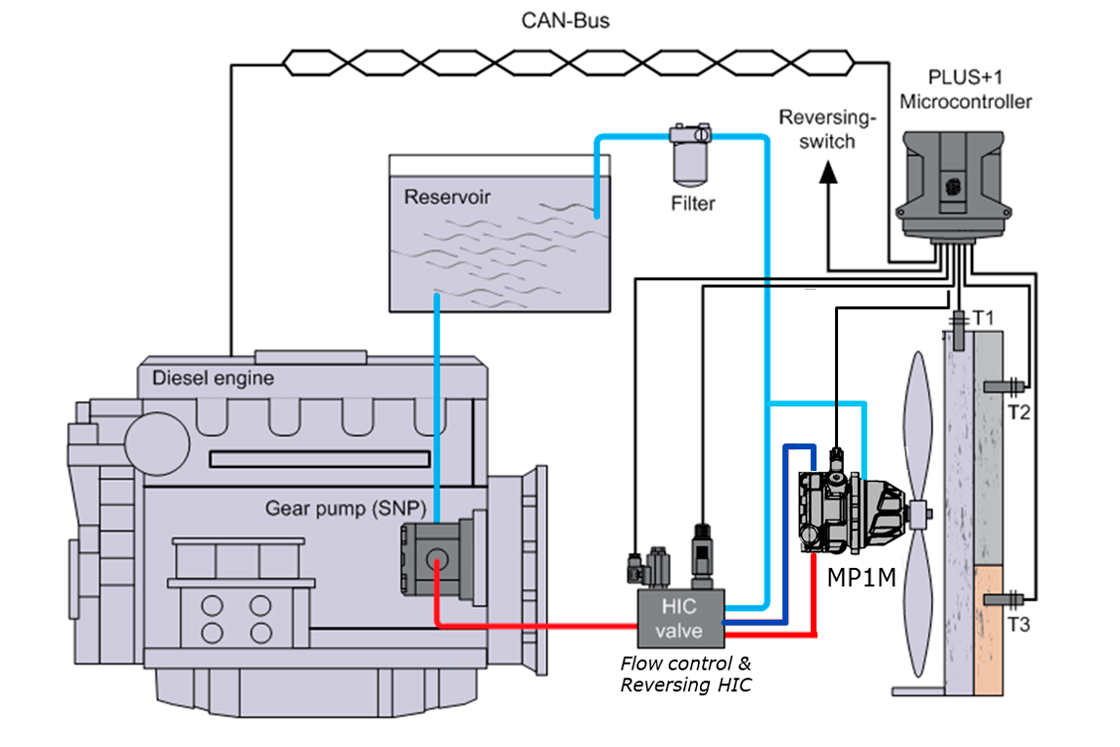

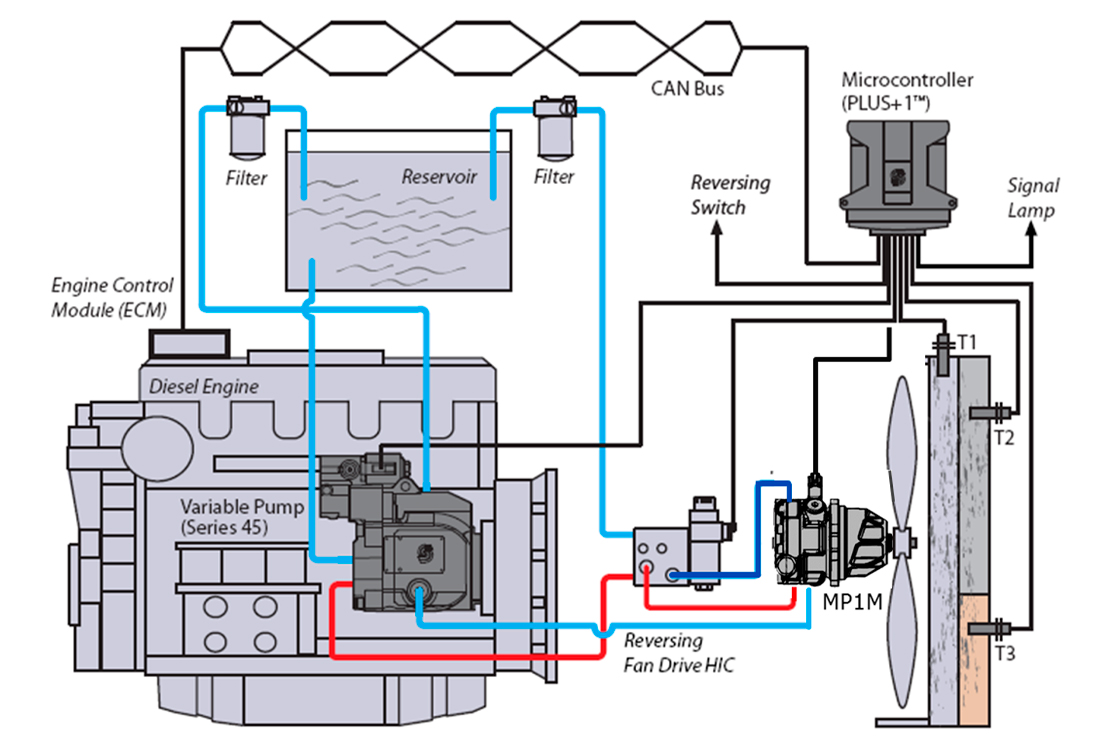

Examples of Fan Drive system solutions using MP1 motors:

Features and benefits

Easy installation: Lightweight aluminum housing, shortest length in the market, low volume occupation in tight spaces such as engine compartments

Easy integration: Compact package size, cartridge mounting for easy integration into fan shroud, system solution when combined with other Danfoss products (MP1P, DDC20, S45, PLUS+1)

High efficiency: Lower fuel cost, more productivity, allows for downsizing with equal or better machine performance

High pressure capability: Max working pressure of 350 bar, enables downsizing of the Fan Drive system, higher durability and longer life

Wide range of options:

  • PLUS+1 Compliant speed sensor
  • Integrated loop flushing valve option
  • Anti-cavitation and shock valve option
  • Two displacements in a single package
  • SAE A, B, and cartridge style two-bolt mounting configurations available
  • Tapered shaft with optional shaft seal dust protector for fan drive applications
Learn more about MP1 fixed motors
