Spreader HICs

ICS spreader valves

Danfoss spreader valves offer load-independent flow control for two functions. These products have served many markets for years, primarily being used for ice and snow control on sand/salt spreader vehicles.

Features and benefits

Detented hand knob with minimum and maximum stops and 11 positive positions provide easy adjustment

Dual control of two actuators, typically the auger and spinner

Pressure compensation for load-independent flow/speed control of motors

Manual or electrical control for unloading

Load sensing capability for open circuit piston pump circuits (SPR-2FFLC12)

Product range

Dual flow compensated spreader with manual dump valve (for gear pump)

Model code	Rated pressure	Rated flow	3D model
SPR-2FFL12	138 bar (2000 psi)	114 lpm (30 gpm)	STP files

Dual flow compensated spreader with manual dump valve (for piston pump)

Model code	Rated pressure	Rated flow	3D model
SPR-2FFLC12	207 bar (3000 psi)	114 lpm (30 gpm)	STP files

Dual flow compensated spreader with solenoid dump valve (for gear pump)

Model code	Rated pressure	Rated flow	3D model
SPR-2FFLW86	138 bar (2000 psi)	114 lpm (30 gpm)	STP files

Documents

Documents
Type (0)	Name	Language (0)	Valid for (0)	Updated	Download	File type (0)
User guide	ICS Spreader Valves Technical Information	English	Multiple	18 Sep, 2020	1.2 MB	.pdf

Related products

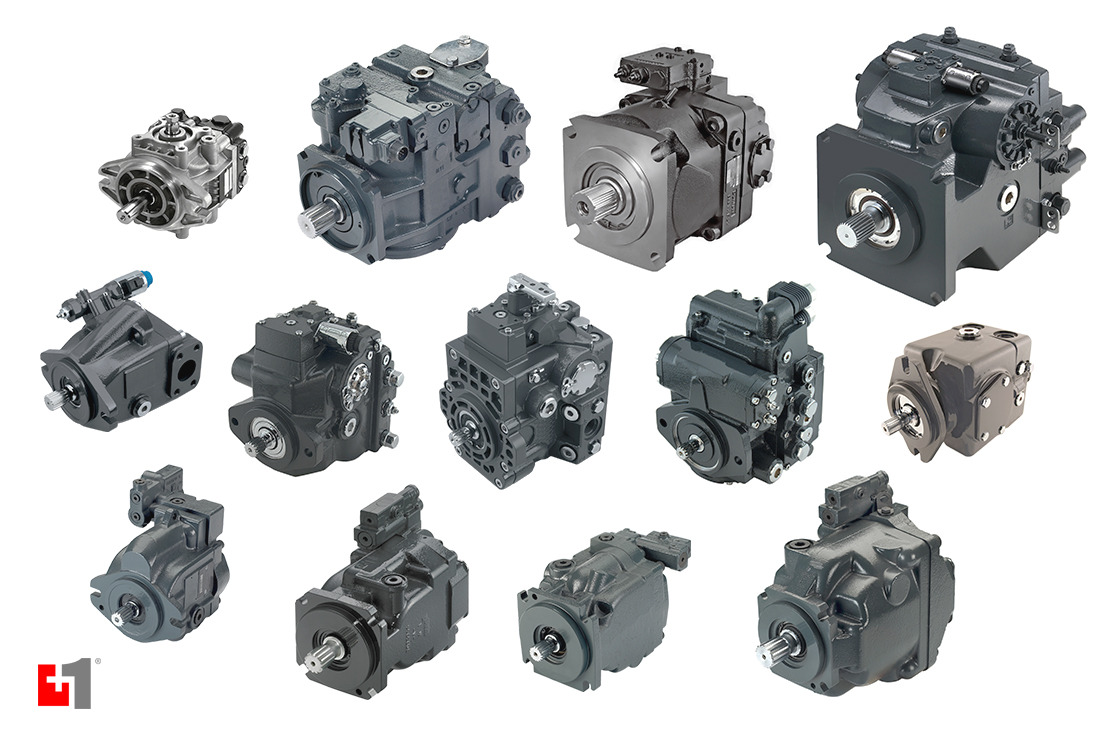

Pumps

Danfoss Power Solutions offers a wide range of hydraulic pumps for mobile and industrial applications including hydrostatic, gear, piston, vane and digital displacement pumps.

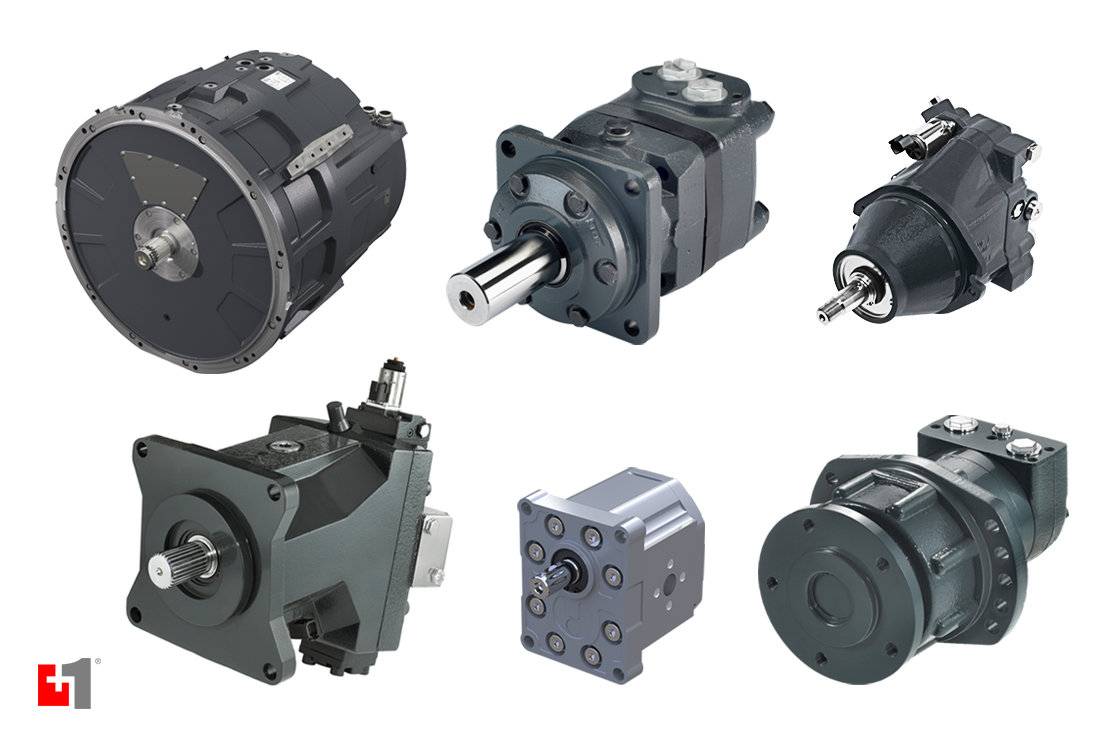

Motors
