Spiral fittings

Where to buy

Our 4S/6S non-skive, spiral-hose fittings use Dura-Seal™ technology to provide leak-free performance and Dura-Kote™ corrosion resistant plating to provide up to 1,000 hours of protection. Our 1W internal skive fittings extend assembly life in even the toughest, highest-pressure applications. Design features such as back-up hexes, slip-over nuts, and non-brazed nipples protect against failure and make assembly easy.

DURA-KOTE PLATING-Superior corrosion resistance
INNOVATIVE DESIGN-our multi-bended fittings up to 1 m length can withstand 500-bar pressure
SYSTEM ENGINEERED-Extend hose assembly life

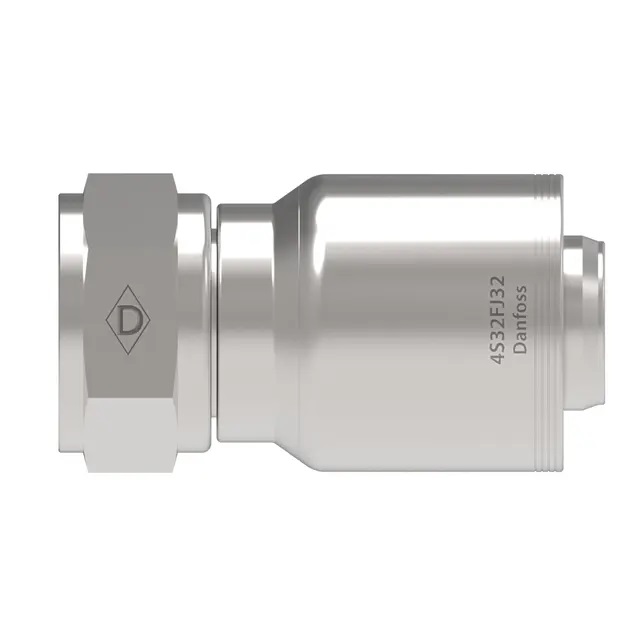

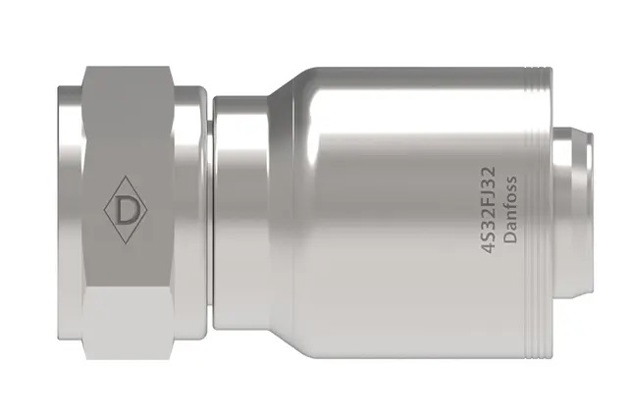

4S/6S spiral hose fittings features and benefits

Dura-Kote plating technology for up to 1,000 hours of corrosion resistance

Dura-Seal™technology eliminates hose assembly cool-down leakage
Class zero leakage SAE J1176 on approved hosestylesfor higher safety and environmental protection
Danfoss’MatchMatespiral-hose/fitting identification system program provides identification markings on the hose, hose fittings, and crimp dies for quick and easy assembly.

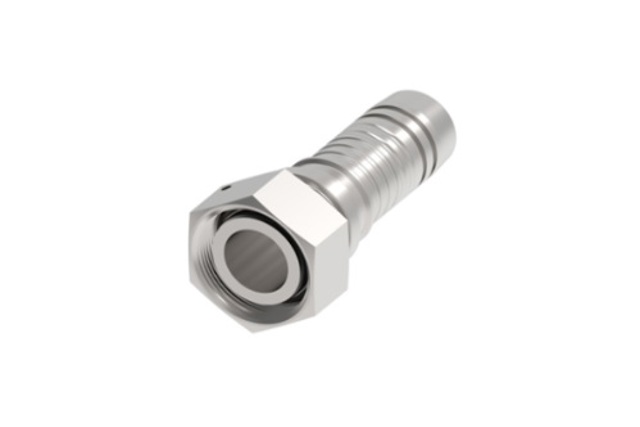

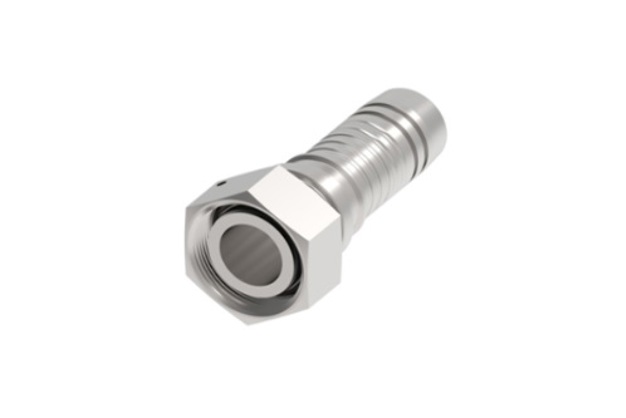

1W – Internal Skive spiral hose fittings features and benefits

Internal Skive Hi-Performance Spiral Fitting with design-related sockets
Blow-off prevention for critical applications
Designed to withstand high-pressure environments, with a capacity of up to working 500 bar (7250 psi).
Tested to two million flex impulse cycles, proving their durability and reliability over the long-term.
Class 0 Cool Down Leakage per SAE J1176
Double O-Ring DURA-SEAL™ for sizes -20 to -32 providing extra protection and durability for large size hoses.

Dura-seal technology

Class " 0 " leakage protection. This patent-pending innovation from Danfoss eliminates hose assembly cool-down leakage, while extending hose assembly life, reducing equipment down-time.

Dura-Kote plating advantage

Danfoss hose fittings now come with Dura-Kote plating, which gives you up to 1,000 hours of corrosion resistance. Dura-Kote is an innovative plating technology offers more corrosive protection for longer life, lower replacement costs, and improved appearance. This corrosion protection decreases the likelihood of leaking, which means less equipment downtime and greater productivity. Plus, there are no compatibility issues with Dura-Kote plating. The Danfoss hose fittings you rely on today will look, feel, and perform exactly the same.

Same form and functional capabilities
Same torque values and pressure ratings
Same silver appearance
Same procedures for assembly

Corrosion spreads- choose your components wisely! In a 650-hour salt spray test, Danfoss’ family of components showed no corrosion migration in comparison to an assembly that combined an Danfoss fitting with competitor components. This test illustrates why it is so important to choose Danfoss components for your entire hose assembly.
