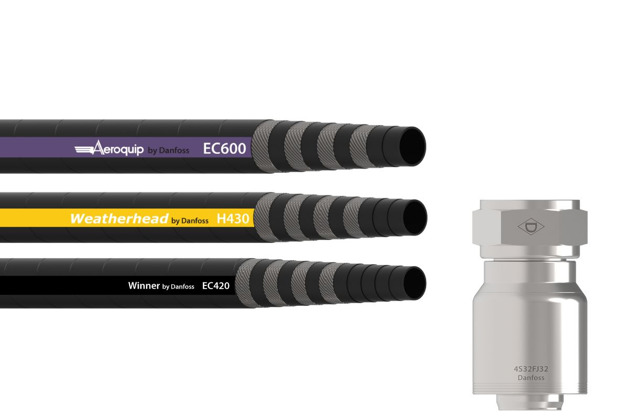

Danfoss’ spiral hoses and fittings offer a reliable solution for high-pressure, high-impulse, and high-performance applications. Designed for powerful equipment and heavy machinery, our hoses feature four or six layers of spiral wire reinforcement for durable and long-lasting performance under the toughest working conditions. Our standard models meet R12, R13, and R15 standards, while our premium models exceed these standards. We also offer extra-flexible, high-temperature, and low-temperature solutions to meet the diverse needs of our customers. Choose Danfoss for high-quality spiral hoses and fittings that provide reliable and leak-proof performance even in extreme pressure applications.

Product range

  • if (isSmallPicture) { ; } else if (isBigColumns) { } else { }
    Spiral hoses​

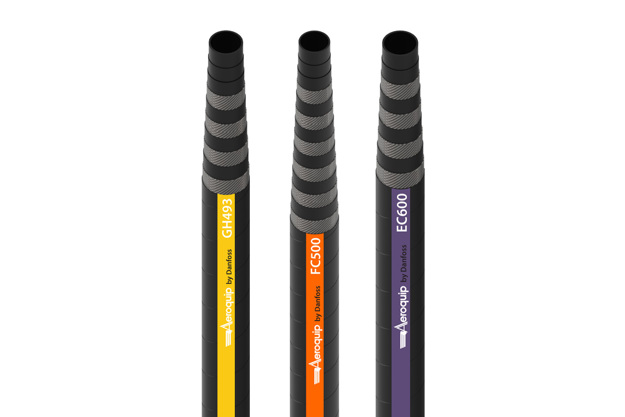

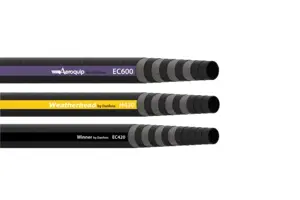

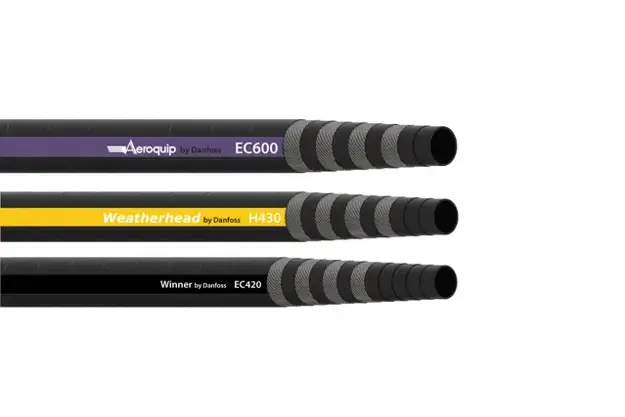

    For applications that require even higher pressure, Danfoss has the perfect solution with our range of four and six wire spiral high-pressure hoses. Our hoses go beyond industry standards and are designed to provide exceptional performance. Our portfolio includes models that cater to low- or high-temperature, high-abrasion, and suction applications, ensuring that we have the ideal solution for your hydraulic needs. With our two-tier strategy, customers can choose between premium Aeroquip and standard Winner brands, while our Americas premium brand, Weatherhead, offers top-of-the-line quality and performance. For the best four and six wire spiral high-pressure hoses for your hydraulic applications, trust Danfoss.

  • if (isSmallPicture) { Spiral fittings; } else if (isBigColumns) { Spiral fittings } else { Spiral fittings }
    Spiral fittings

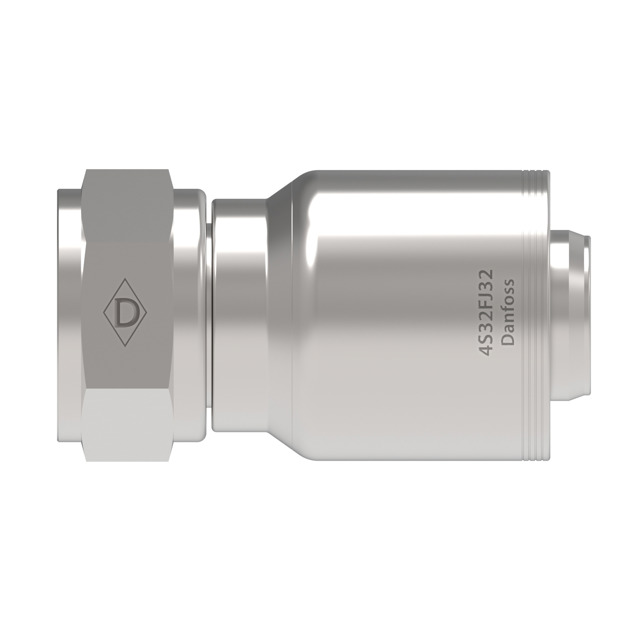

    Danfoss offers 4S/6S non-skive and 1W series internal skive spiral-hose fittings with Dura-Seal™ technology for leak-free performance and Dura-Kote™ corrosion-resistant plating for up to 1,000 hours of protection and are system-engineered to extend hose assembly life. Back-up hexes, slip-over nuts, and non-brazed nipples protect against failure and make assembly easy. The patented Dura-Seal™ technology eliminates hose assembly cool-down leakage, while the Dura-Kote™ plating offers superior corrosion resistance, decreasing the likelihood of leaking and reducing equipment downtime. Danfoss’ MatchMate spiral-hose/fitting identification system program provides error free selection. Choose Danfoss components for your entire hose assembly to ensure Class zero leakage SAE J1176 on approved hose styles for higher safety and environmental protection.

  • if (isSmallPicture) { Spiral assemblies; } else if (isBigColumns) { Spiral assemblies } else { Spiral assemblies }
    Spiral assemblies

    Danfoss offers a wide range of system-engineered braided assemblies that are designed to meet the demands of mobile and industrial hydraulic systems. These four and six wire spiral hose assemblies provide exceptional durability, reliable leak-free performance, and excellent resistance to corrosion. With comprehensive assembly sets that include all the necessary components for peak efficiency, Danfoss hose assemblies are ideal for transfer applications such hydrostatic systems.

Documents

Documents
Type Name Language Valid for Updated Download File type
Catalog Americas Aeroquip Rubber Hydraulic Hose and Fittings Catalog English Multiple 24 Jul, 2024 36.5 MB .pdf
Catalog Americas Aeroquip Rubber Hydraulic Hose and Fittings Catalog Portuguese Portuguese Multiple 04 Sep, 2024 39.0 MB .pdf
Catalog Americas Aeroquip Rubber Hydraulic Hose and Fittings Catalog Spanish Spanish, Castilian Multiple 04 Sep, 2024 39.2 MB .pdf
Catalog Americas Weatherhead Rubber Hydraulic Hose and Fittings Catalog English Multiple 01 Jul, 2024 34.6 MB .pdf
Catalog APAC Core Rubber Hydraulic Hose Products English Multiple 08 Apr, 2024 18.8 MB .pdf
Catalog APAC Winner hydraulic hoses catalog English Multiple 08 Apr, 2024 8.5 MB .pdf
Catalog China Core Rubber Hydraulic Hoses Catalog Chinese (CN) China 22 Aug, 2023 3.3 MB .pdf
Application guide Fluid Conveyance Application Guide EMEA English Multiple 05 Jan, 2023 17.8 MB .pdf
Brochure Fluid Conveyance Services Guide English Multiple 14 Apr, 2023 1.8 MB .pdf
Brochure North America Aeroquip Field Guide English Multiple 08 Oct, 2024 173.7 MB .pdf
Brochure North America Weatherhead Field Guide English Multiple 08 Oct, 2024 173.7 MB .pdf
Catalog Winner by Danfoss hose and fittings NAMER English United States 07 Nov, 2022 14.2 MB .pdf
