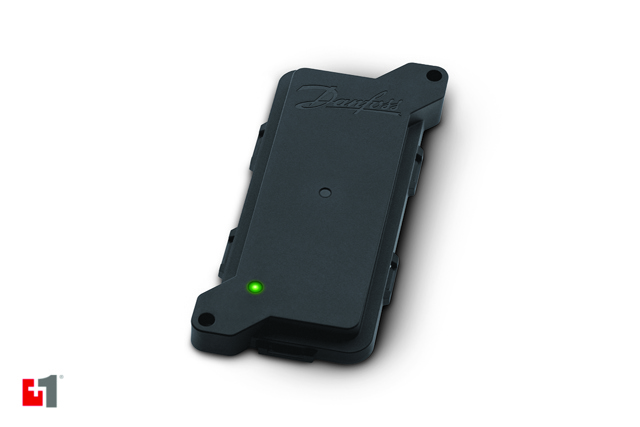

PLUS+1® CS100 cellular gateway

  • Overview
  • Documents
  • Downloads
  • Related products
  • Related applications
  • Related solutions

Flexible data and position logging

The CS100 provides high quality, plug and perform ease of installation, and cost effective solutions to fit the remote monitoring needs of today’s mobile machines.

Product highlights

The CS100 includes LTE Cat M1 and 2G cellular communications, GNSS positioning, 2 multifunction I/O, Power Management Port and 2 CAN bus ports. The CS100 is configured and managed from the PLUS+1® Connect portal.

Features and benefits

Easy to install enclosure

Plug and perform solution

LTE Cat M1 and 2G cellular

PLUS+1® Connect portal to configure logging of machine and position data

Firmware-over-the-air (FOTA) update

Internal cellular and GNSS antennas

Factory-installed SIM Card

2 CAN buses 2.0A/B

IP67 (with connector mated)

2 multifunction I/O

Power management driven by CL15 including low-power mode with cyclic configurable wake-up

Flexible mounting options

GNSS position tracking

Factory-installed security certificate

Internal non-volatile memory allows stored Data Logging for:

  • CAN messages
  • GNSS position

Documents

Documents
Type Name Language Valid for Updated Download File type
Data sheet PLUS+1® Connect CS100 Cellular Gateway Data Sheet English Multiple 14 Sep, 2023 415.5 KB .pdf
User guide PLUS+1® Connect CS100 IoT Gateway Technical Information English Multiple 15 Sep, 2023 3.1 MB .pdf

Related products

  • if (isSmallPicture) { PLUS+1® CS500 IoT gateway; } else if (isBigColumns) { PLUS+1® CS500 IoT gateway } else { PLUS+1® CS500 IoT gateway }
    PLUS+1® CS500 IoT gateway

    The PLUS+1®  Connect CS500 IoT Gateway offers machine operators, owners, service technicians, and fleet managers the ability to connect and interact with their machines and provides cost-effective solutions to fit the remote monitoring needs of today's mobile machines.

  • if (isSmallPicture) { PLUS+1® CS10 wireless gateway; } else if (isBigColumns) { PLUS+1® CS10 wireless gateway } else { PLUS+1® CS10 wireless gateway }

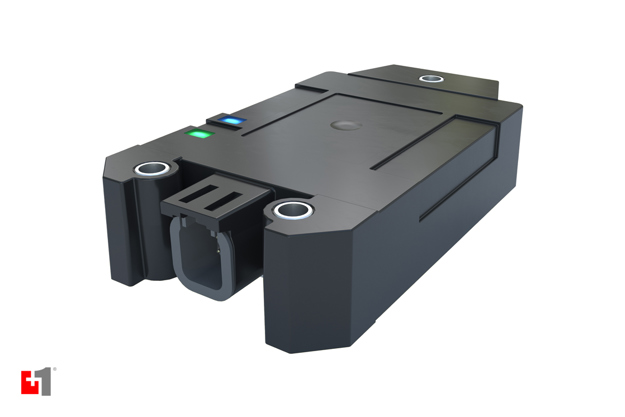

    PLUS+1® CS10 wireless gateway
