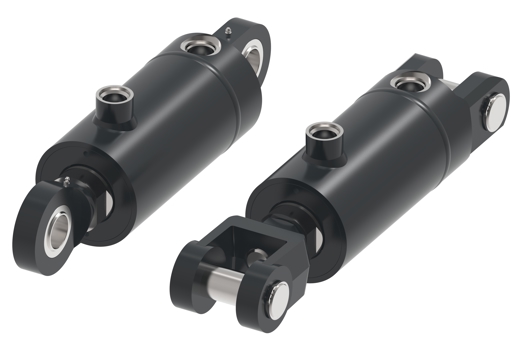

W series heavy-duty industrial welded cylinders

Configurable and competitive

New, improved design and manufacturing processes enable the industrial
welded cylinder series to be easily configured with a wide variety of
sizes, mounting options, coatings and more.

• Welded construction
• Industrial market focus
• Robust construction - 3000 PSI
• Configurable port in cap design
• Many bore and rod combinations
• Additional options (electronic switches, rod coatings, stop tubes, etc.)
• Engineer-to-order available

Performance you can count on

The piloted cast iron piston is one piece to ensure concentricity. A steel port boss creates a full-thread, pressure-tight porting connection and mechanically loaded piston seals and innovative rod seals prevent seal leakage.

Engineered for high-pressure applications

W series hydraulic cylinders have a pressure rating of up to 207 bar (3,000 psi). Need higher pressure capacity? Let us customize a solution for you.

Built to last

Our products are made with high-yield-strength steel, resulting in industrial-grade cylinders. The precision-machined ductile iron gland provides a long bearing surface for side-loading resistance, preventing seal failure

Comprehensive size options

Our W series cylinders are available in standard bore sizes of 1.5" (38 mm) - 8" (203 mm), and stroke length of up to 240 in (6096 mm).
NOTE: Custom bore/stroke sizes available for order - contact customer service for details.

Mounting options

A wide variety of mounting options make it easy to find the right fit for your application.

• Cap fixed clevis mount
• Cap spherical bearing mount
• No mount
• Cross tube mount
• Cap fixed eye mount
