Open up for intelligent power conversion

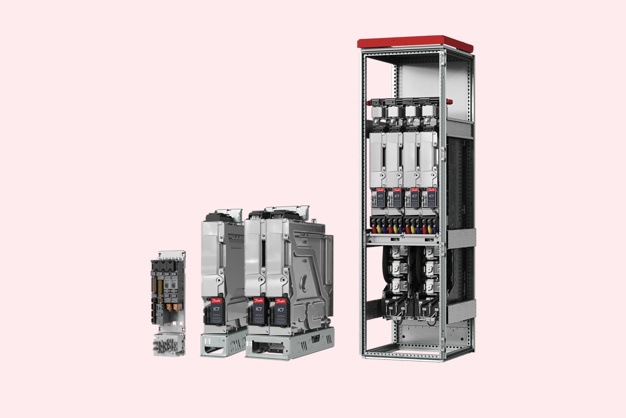

The iC7-Hybrid power converter is your ticket to join the energy transition. Tap into energy savings with hybrid and pure electric solutions in marine power conversion. Enhance smart grid applications such as energy storage, shore supply, charging and electrolysis.

Supply voltage and power range

  • Voltage rating:
    • 3 x 380-500 VAC, 460-800 VDC
    • 3 x 525-690 VAC, 640-1100 VDC
  • Current rating: 236-5750 A
  • Power range: 0.25-6.8 MVA and beyond



Power conversion applications surrounded by the iC7 halo

Need compact power conversion?

iC7-Hybrid is optimized for all power conversion applications and has an unrivaled power density with new filter technology.

Superior power conversion hardware

Intelligent power conversion for your industry

Join the energy transition

Features and benefits

Fit-for-purpose power conversion improves competitiveness and reduces engineering effort

Fast control loops meet the modern low-inertia network requirements

Highly compact design minimizes weight, space, and cooling costs

Reliable in difficult installation and operating conditions

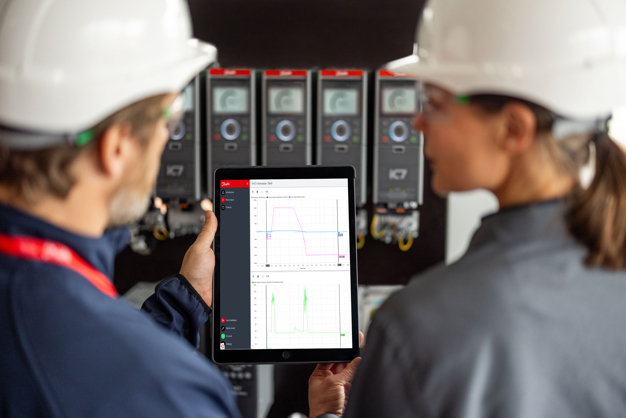

True digital twin simulation models are always up-to-date and accurate, ready to use in your system simulation

Access and transfer data securely via cloud. Tamper-proof hardware protects your intellectual property

Modular concept scales to any application, with power range up to 6.8 MVA and beyond

One common iC7 platform serves both power conversion and AC drives in your applications, for shorter time to market and lower lifecycle costs
