Semi Plug-in systems

Danfoss offers highly efficient components optimized for semi plug-in refrigeration systems. The components are designed to provide the lowest total cost of ownership, while at the same time reducing the carbon footprint of your supermarket refrigeration system.

Semi Plug-in application description

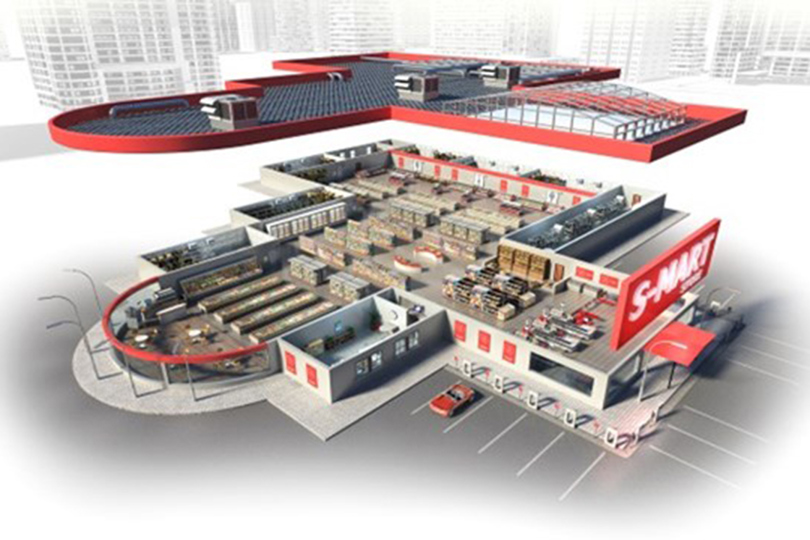

Semi plug-in or water loop systems have individual refrigeration units installed in each cabinet. The heat rejection in the semi plug-in system does not happen in a traditional air-cooled condenser. This has been replaced with a water-cooled condenser.The central part of the system is the water loop that supplies each cabinet with chilled water. The heat is carried by the water loop out of the system and rejected by a dry cooler typically placed on the roof.

The semi plug-in units are coming as factory made hermetic units build into the cabinets, this ensures a low leak rate on the systems. Installation is simplified as the semi plug-in units are factory charged and only needs electrical and water supply to operate. Semi plug-in refrigeration solutions eliminate the need for a machinery room, thereby by freeing up more sales area.

Features and benefits

Sustainability:

  • A solution tailored for natural refrigerants for global application
  • Low energy consumption

Electronic Controls

  • Multiple refrigeration circuits
  • Fixed and variable speed compressor control

Simplicity

  • Plug and play installation – only needs electrical and water supply
  • Eliminates need for machinery room

Efficiency

  • TXVs to achieve desired conditions while saving energy
  • Micro Plate Heat Exchangers offers high efficiency and low volume

Reliability

  • Factory made hermetic units reduce leak potential
  • Danfoss components offers highest degree of reliability
Coolselector - danfoss

The truth is Cool(selector®2)

Coolselector®2 features unbiased calculations for the selection of refrigeration and air conditioning components based on the user’s input or based on standard operating conditions.

Download Coolselector®2

Related products

  • if (isSmallPicture) { Thermostatic expansion valves - Danfoss; } else if (isBigColumns) { Thermostatic expansion valves - Danfoss } else { Thermostatic expansion valves - Danfoss }
    Thermostatic expansion valves

    Thermostatic expansion valves (TXV) are available as parts programs, i.e. with separate valve body and orifice assemblies, or as complete valves (fixed orifice). The category also contains thermostatic injection valves.

  • if (isSmallPicture) { WVFX ; } else if (isBigColumns) { WVFX } else { WVFX }

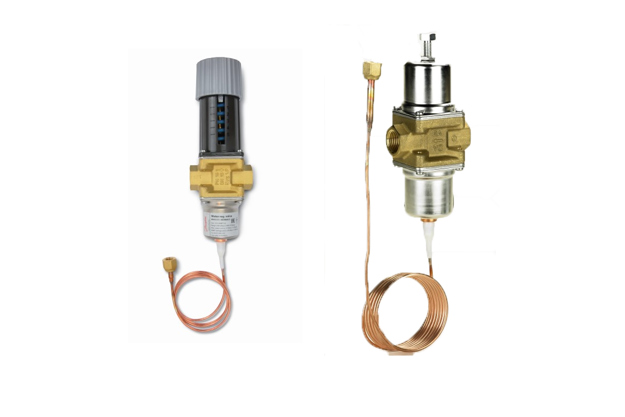

    Pressure operated water valve – WVFX and WVO

    Pressure operated water valve type WVFX and WVO are used for regulating the flow of water in refrigeration plants with water-cooled condensers.

  • if (isSmallPicture) { AK-CC55 compact - Danfoss; } else if (isBigColumns) { AK-CC55 compact - Danfoss } else { AK-CC55 compact - Danfoss }
    AK-CC55

    AK-CC55 is designed with user experience in focus, resulting in bigger connectors and AK-CC55 Connect app. The AK-CC55 platform consist of 4 controllers. AK-CC55 Compact is a standard case controller for TXV/EEV. AK-CC55 Single Coil/UI is an advanced case controller for EEV with adaptive algorithms. AK-CC55 Multi Coil is an advanced case controller controlling from 1 to 3 EEV’s in same refrigeration section.

  • if (isSmallPicture) { DML and DCL filter driers - Danfoss; } else if (isBigColumns) { DML and DCL filter driers - Danfoss } else { DML and DCL filter driers - Danfoss }
    DML/DCL hermetic filter driers, HFC optimized

    DML hermetic filter driers are optimized for HFC refrigerants and mineral or benzene oils. Compatible with refrigerants R22, R32, R134a, R404A, R410A, R407C, R23, R600, R600a, R744, R1234yf, R1234ze, R407f, R290, R452A, R444B, R449A, R448A and R450A. This product is approved for R290, R600 and R600a by ignition source assessment in accordance to standard EN13463-1.

  • if (isSmallPicture) { ACB cartridge pressure switches - Danfoss; } else if (isBigColumns) { ACB cartridge pressure switches - Danfoss } else { ACB cartridge pressure switches - Danfoss }
    ACB cartridge pressure switches

    ACB cartridge pressure switch is a small disc type pressure switch for use in refrigeration and air conditioning systems. ACB is as standard equipped with a 6 amp contact system with automatic or manual reset.
