80+ Years of Sustainability

Danfoss has been engineering innovations designed to enhance comfort & save energy for over 80 years. Learn more about our sustainable building technology like AB-QM™ in our Sustainable Buildings video below...

AB-QM™ -
Simple, Affordable, Comfort.

Pressure independent control excellence from the global market leader for over 30 years.

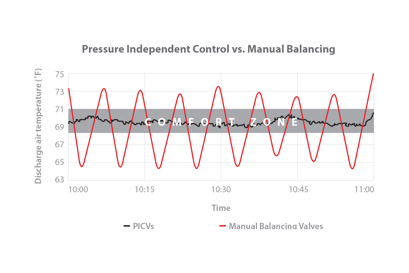

Discover how Danfoss AB-QM™ Pressure independent control valves (PICVs) can improve system efficiency by eliminating overflows and increasing ΔT.

What is Danfoss AB-QM™ ?

AB-QM™ is a pressure independent control valve with a built-in, integrated differential pressure regulator. The unique design allows the valve to be selected via required flow versus traditional Cv calculations.

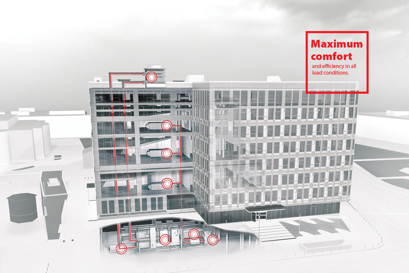

When equipped with a perfectly matched Danfoss electric actuator, AB-QM™ PICVs increase energy efficiency & room temperature control, improving indoor climate conditions. PICVs are typically found in HVAC heating and cooling systems.



Typical AB-QM™ PICV applications include:

  • air handling units
  • climate ceilings
  • variable air volume boxes
  • fan-coil units
  • terminal units

AB-QM™ Features & Benefits

Mechanical pressure independent technology

Integrated differential pressure regulator for exceptional flow control.

Easy setting and sizing

Selecting the right AB-QM™ is much less complicated than sizing and selecting conventional control valves, and no Cv calculations are required.

Wide range of valve sizes

Valves are available in ½” through 10”, covering a wide variety of HVAC applications.

Field adjustable flow setting

No tools are required for the ½" to 1-¼" valves. Simply lift, rotate, and lock valve adjustment knob on your required flow setting.

Tight close-off/clog resistant

Unique two-stage close off resists debris.

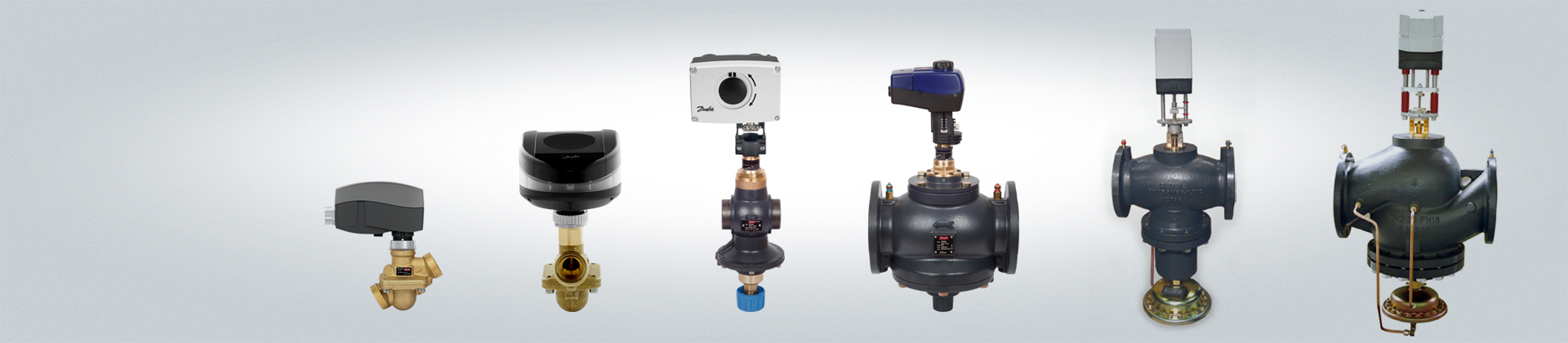

Learn more about Danfoss AB-QM™ valves

Learn more about Danfoss AB-QM™ valves

Watch a brief overview of Danfoss AB-QM™ pressure independent control valves, see how they work, and how they can help optimize your HVAC system.

How it works

Pressure Independent Control Valve

The integrated control valve with flow limitation and automatically provides more or less flow through the valve depending on the selected actuator.

Product range

Available valves guide

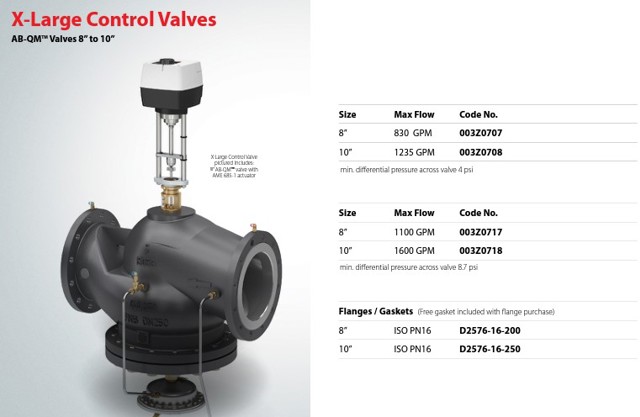

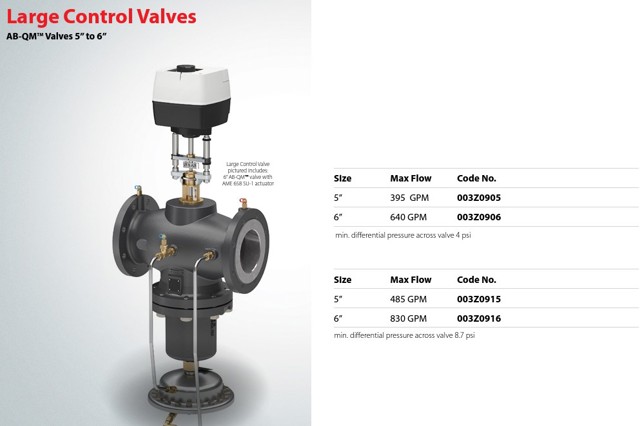

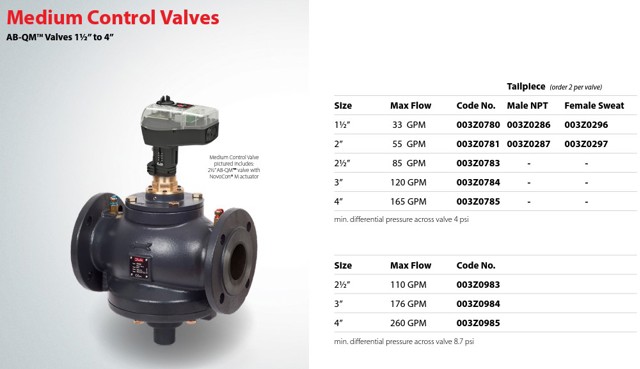

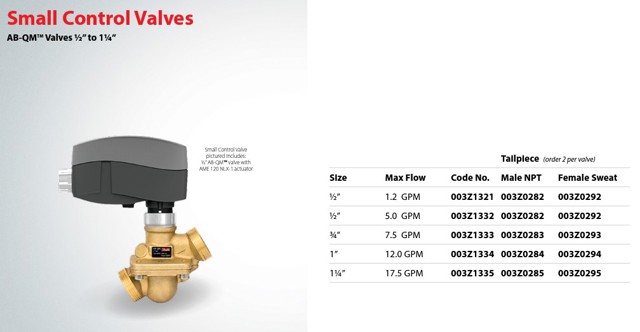

½" - 10" Valves

1.2 - 1600 GPM

Choice of pipe connections:

  • ½" - 2"
    • Male NPT
    • Female NPT (¾" & 1")
    • Female Sweat
  • 2½" - 10"
    • ANSI Flange

Related products

  • if (isSmallPicture) {  AB-QM™ Actuators } else if (isBigColumns) {  AB-QM™ Actuators } else {  AB-QM™ Actuators }
    AB-QM™ Actuators

    A variety of complimentary actuators are available that work synergistically with the AB-QM™ valve, maximizing the balancing & control features of the valve. Select your actuator based on your desired control input features for your application.

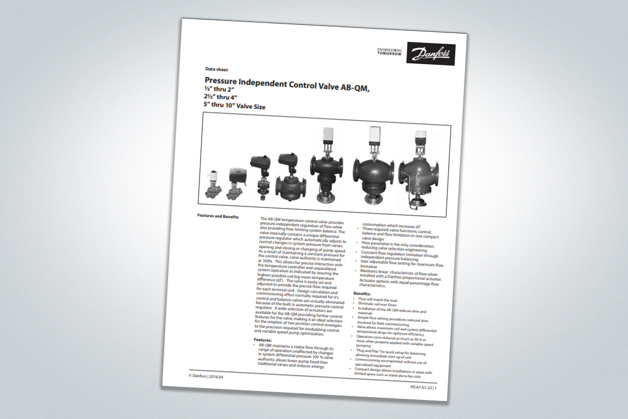

Documents

Documents
Type Name Language Valid for Updated Download File type
Brochure AB-QM Brochure - Design Center Flyer English United States 05 Nov, 2015 385.9 KB .pdf
Brochure AB-QM Brochure - General English Multiple 27 Apr, 2015 4.2 MB .pdf
Brochure AB-QM Brochure - Hospitals English Multiple 23 Jun, 2015 2.3 MB .pdf
Brochure AB-QM Brochure - Universities English Multiple 05 Nov, 2015 823.4 KB .pdf
Tender text AB-QM Specification Sheet - Building Control and Automation System (Section 25 10 00) English Multiple 26 May, 2020 451.3 KB .pdf
Tender text AB-QM Specification Sheet - HVAC Piping (Section 23 21 13) English Multiple 26 May, 2020 377.9 KB .pdf
Tender text AB-QM Specification Sheet - Simple English Multiple 26 May, 2020 116.2 KB .pdf
Fact sheet AB-QM Valve High Flow ISO Flange Submittal VLA7H122 English United States 19 Mar, 2012 79.8 KB .pdf
Fact sheet AB-QM Valve Neck Version Distinction English Multiple 26 May, 2020 94.0 KB .pdf
Fact sheet AB-QM Valve Submittal - 1.5" to 2" English United States 03 Jan, 2012 122.8 KB .pdf
Fact sheet AB-QM Valve Submittal - 2.5" to 4" English United States 21 Feb, 2019 240.0 KB .pdf
Fact sheet AB-QM Valve Submittal - 2.5" to 4" High Flow English Multiple 26 May, 2020 172.5 KB .pdf
Fact sheet AB-QM Valve Submittal - 5" to 10", High Flow English United States 21 Feb, 2019 191.9 KB .pdf
Fact sheet AB-QM Valve Submittal - 5" to 6", 2PT English United States 21 Feb, 2019 139.4 KB .pdf
Fact sheet AB-QM Valve Submittal - 8" to 10", ISO English United States 25 Jun, 2012 105.7 KB .pdf
Fact sheet AB-QM Valve Submittal - Hose Package English United States 21 Feb, 2019 147.2 KB .pdf
Case story AB-QM Valves Raise Profits for CUBO Organic Poultry Farmer VZA7N122 English United States 04 Aug, 2017 2.3 MB .pdf
Catalog AB-QM™ Quick Select Guide English United States 30 Mar, 2021 1.2 MB .pdf
EU Declaration Danfoss EU BF04052021-en001.01 English; Latvian Multiple 02 Oct, 2021 1.6 MB .pdf
EU Declaration Danfoss EU BF12052021-en001.01 English Multiple 24 May, 2021 477.6 KB .pdf
Article Delta T for Texas As Seen in Engineered Systems Magazine VØA7I122 English United States 01 Jul, 2015 299.9 KB .pdf
Case story High-end renovation project (Waldorf Astoria Hotel) English United States 27 May, 2015 491.9 KB .pdf
Article Houston Methodist Hospital Gains Energy & Performance Benefit from Improved Chilled_Water Delta-T English United States 27 May, 2015 244.5 KB .pdf
Case story Hydronic Analyzer Tests Prove Significant Savings in Malaysian Hotel VZA7S122 English United States 11 Jun, 2015 431.3 KB .pdf
Case story Keeping it Cool in Downtown Dubai, Burj Khalifa, VZA7T122 English United States 11 Jun, 2015 231.9 KB .pdf
Case story Monumental Energy Savings in Cooling System, Consplant Tower VZA7Q122 English United States 11 Jun, 2015 255.9 KB .pdf
Case story NA AB-QM Project References English United States 29 May, 2012 398.3 KB .pdf
Article PICVs & VRFs: Two Sides of the Same Coin VØA7H122 English United States 11 Jun, 2015 570.4 KB .pdf
Case story Rochester Institute of Technology (RIT) Case Study English United States 27 May, 2015 401.6 KB .pdf
Case story Second Life for One-Pipe Heating System in Moscow, Russia VZA7U122 English United States 11 Jun, 2015 623.7 KB .pdf
Case story Sky-High Comfort, the Sustainable Way, Sky Tower VZA7R122 English United States 11 Jun, 2015 289.4 KB .pdf
Case story The Park - Small Valves Introduce Big Changes to Building Efficiency and Occupant Comfort VZA70122 English United States 26 May, 2015 186.4 KB .pdf
Case story UMKC Student Union Building Chooses Danfoss AB-QM English United States 22 Sep, 2017 109.9 KB .pdf

Tender texts

A. Control Valves:

Factory fabricated pressure independent with internal differential pressure regulator (DPRV) which automatically adjusts to normal changes in system pressure and provides 100 percent control valve authority at all positions of the valve; maintain proportional/linear flow coil characteristics; and maintain a liner flow characteristic. The PICV shall accurately control the flow from 0-100 percent full rated flow with an operating pressure differential range of 3 to 60 PSIG, FCI 70-2 Class 4 shut-off on all sizes and field serviceable. Control valve shall incorporate control, balancing and flow limiting.  Hydronic system pressure independent control valve bodies shall meet ASME B16.34 or ASME B16.15 pressure and temperature class ratings based on the design operating temperature and 150 percent of the system design operating pressure and  shall have the following characteristics:

1. NPS 2 and Smaller: Class 150 bronze or brass body with union connections, stainless steel trim, stainless steel rising stem, stainless steel disc or ball, and screwed ends with back seating capacity repackable under pressure.

2. NPS 2-1/2 and Larger: Class 125 iron or ductile iron body, stainless steel trim, stainless steel rising stem, stainless steel disc or ball, flanged ends with back seating capacity repackable under pressure.

3. Pressure Control Seat:  Brass construction with vulcanized EPDM.

Retain one or both sub-paragraphs below.

Maximum pressure drop of up to 5 psig (35 kPa) is usually acceptable.  Show pressure drop on Drawings where critical.
4. Sizing: Line size.

5. Fittings and Components: All Fittings and Components shall meet ANSI standards and be totally compatible with readily available components in North America (except as allowed for 8” valves and above – Proper Companion Flanges must be supplied).

6. Close-Off (Differential) Pressure Rating:  Combination of actuator, DPRV action, and trim shall provide minimum close-off pressure rating of 150 percent of total system (pump) head.

7. Valves shall be manufactured by one manufacturer throughout the project.

8. PICV’s shall be supplied by the PICV manufacturer only; “branded or 3rd party” PICV’s (those products which have been purchased from a manufacturer and labelled as manufactured by a supplier) are not acceptable.

B. Electronic Actuators:

Direct-mounted self-calibrating type designed for minimum 60,000 full-stroke cycles at rated force and shall be from the same manufacturer as the pressure independent control valve; branded or 3rd party actuators must be submitted and approved prior to bid. The actuator shall provide visible position indication. Fail positions on power failure shall include in-place, open or closed as noted in the ATC / BAS controls specifications.

Coordinate first subparagraph and list below with Part 2 "Manufacturers" Article.  Retain "Available" for non-proprietary and delete for semi-proprietary specifications.  If list does not include manufacturers of systems that make or market this equipment under their own name, those manufacturers' names may be added.  List can be deleted if it is not important that specific manufacturers be named for this product.
1. Valves: Sized for maximum circuit flow rate, generally line sized.

2. Actuator to Coil Characteristics: Actuators shall be matched to provide the Heat Exchanger or Coil Characteristics of the product to be controlled – either Linear or Equal Percentage.

Actuators for Equal Percentage Characteristic coils shall be field set to Equal Percentage characteristics or possess built in adjustment features to provide an Alpha (α) Characteristic matching theα Characteristic of the coil or Heat Exchanger.

3. Overload Protection: Electronic overload or digital rotation-sensing circuitry.

4. Fail-Safe Operation: Mechanical, spring-return mechanism or Capacitance return.  Power Requirements (Two-Position Spring Return):  24-V ac.

5. Power Requirements (Modulating):  Maximum 10 VA at 24-V ac or 8 W at 24-V dc.

6. Proportional Signal:  0 to 10Vdc or 2 to 10-V dc or 4 to 20 mA, and 2- to 10-V dc position feedback signal.

7. Actuators for service above Ceilings shall possess UL listings and Approvals.

8. Temperature Rating:  40 to 104 Degrees F.

C. 3rd Party Test Results:  The manufacturer shall submit in his submittal documentation package a set of 3rd Party test reports from a recognized testing agency verifying the accuracy and operation of the submitted valves and associated actuators.  Separate reports for valves and actuators will not be acceptable.

D. Acceptable Manufacturers:

1. Base Bid:  Danfoss AB-QM PICV valves

2. Alternate Deduct Manufacturer Bids may be Accepted with Approval by the Engineer Prior to Bid, including submission of 3rd Party Test Reports.

Case studies

  • if (isSmallPicture) { A.K Suter Elementary school front entrance } else if (isBigColumns) { A.K Suter Elementary school front entrance } else { A.K Suter Elementary school front entrance }
    Engineering Tomorrow solves complex energy and comfort problems for elementary school

    Built in 1921, A.K. Suter Elementary School in Pensacola, Florida — like many older public schools in the state — used a retrofitted patchwork of packaged and split system air conditioning equipment to keep students comfortable in a warm, humid climate. In order to rejuvenate the almost 100-year-old school, the District decided in 2011 to tear down the old school and rebuild it from scratch using new, high-efficiency HVAC technology. Today, the brand new A.K. Suter Elementary is by far the most energy-efficient of all ECSD schools – thanks in part to advanced HVAC technology, including Danfoss Turbocor® oil-free centrifugal compressors and AB-QM™ valves.

  • if (isSmallPicture) { Outstanding HVAC flexibility after high-end office building renovation } else if (isBigColumns) { Outstanding HVAC flexibility after high-end office building renovation } else { Outstanding HVAC flexibility after high-end office building renovation }
    Outstanding HVAC flexibility after high-end office building renovation

    Building: Office
    Application: Hydronic balancing and remote control of 4-pipe heating/cooling change-over system
    Challenge: Ensure a flexible to use HVAC system with DGNB sustainability certification
    Solution: Digital NovoCon® actuator combined with AB-QM™ control valves and NovoCon® CO6 combined with ChangeOver6 as a combination balance the system hydronically, allow remote access via a BMS and control the room temperatures during both heating and cooling operation.

  • if (isSmallPicture) { } else if (isBigColumns) { } else { }
    High-end climate solutions in Waldorf Astoria by Hilton, Amsterdam, the Netherlands

    Building: Hotel
    Application: Hydronic balancing and control for radiator heating and fan coil cooling
    Challenge: Establish top level comfort and minimum energy consumption for heating and cooling
    Solution: Fan-coil units for cooling; 8 heating risers and radiators equipped with Danfoss products.

  • if (isSmallPicture) { } else if (isBigColumns) { } else { }
    HVAC control at Katowice business centre, Poland

    Katowice Business Centre is a modern office building where Danfoss hydronic balancing solutions are used; AB-QM™ balancing and control valves in combination with revolutionary NovoCon® actuators.

  • if (isSmallPicture) { } else if (isBigColumns) { } else { }
    Energy comfort in Prime Tower, Zurich, Switzerland

    The Prime Tower in Zurich is a building of many records. With its 126 meters it is the tallest building in Switzerland with 36 floors and 40,000 square meters accommodating mostly offices. And with its more than 6,000 AB-QM valves it is also one of the biggest heating and cooling installations ever designed and installed by Danfoss.

  • if (isSmallPicture) { } else if (isBigColumns) { } else { }
    SAMBA bank head office cuts energy use by 25% with AB-QM, Riyadh, UAE

    At the heart of the new King Abdullah Financial District in Riyadh stands the impressive SAMBA head office. The 40-story building represents a landmark in sustainable architecture and engineering and forms an attractive work space for the 800 people working in the SAMBA Financial Group head office.
