DGS GAS Detector FAQ

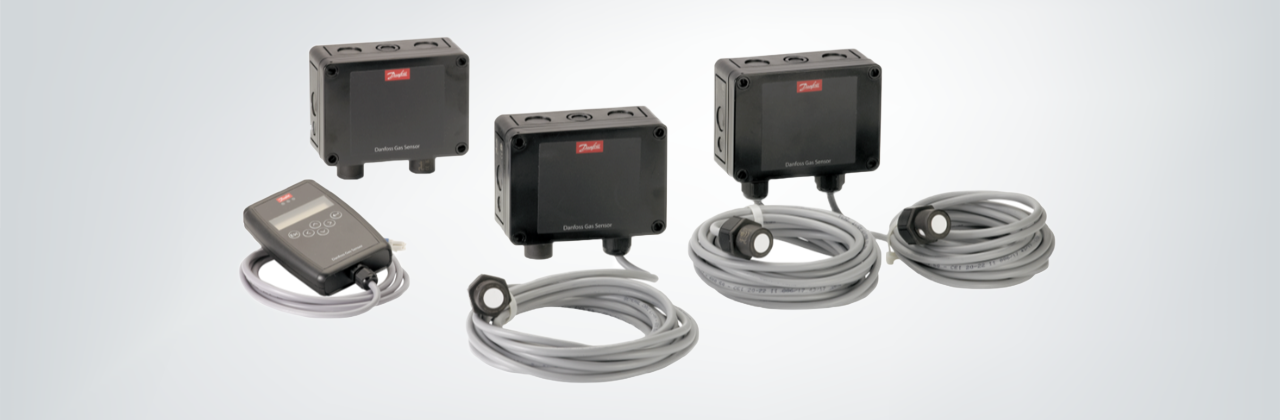

This guide describes step by step how to quickly set up the DGS Gas Detector.
The sensor calibration certificate is normally included in the installation pack.
If you lose this certificate, you can request it from your sales representative by providing:

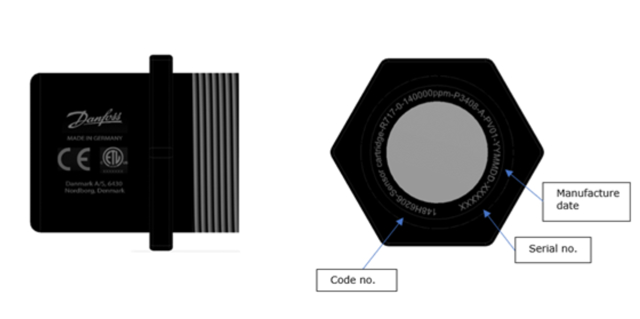

Code number, Serial Number and Manufactured date printed on the sensor head.
When the DGS is provided, the sensor is already calibrated from the factory side.
The sensor has then to be re-calibrated depending on the gas used in the application.
Following the period recorded in the sensor head:
- 60 months for CO2 infrared sensor
- 12 months for HFC semiconductor sensor
- 6 months for Propane pellistor sensor
Yes, when the calibration expires there are 2 possible options:
- Replace the sensor head
- Re-calibrate the sensor. This operation resets the calibration period counter recorded in the sensor head.
- Link to calibration guide
- For the re-calibration procedure, please take a look at the below video:

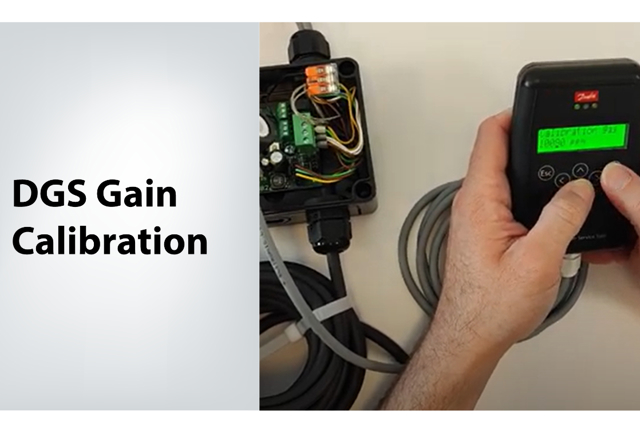

In this video, we will see how to calibrate the DGS.
In this video, we will see how to make zero calibration in the DGS.
Sensor life span
Typical sensor lifespan:
- Infrared (CO2) – 5-7 years
- Electrochemical (NH3) – 2-3 years
- Semiconductor (refrigerants) – 5-7 years
No, the DGS for propane can only be used in a non-ATEX zone.
