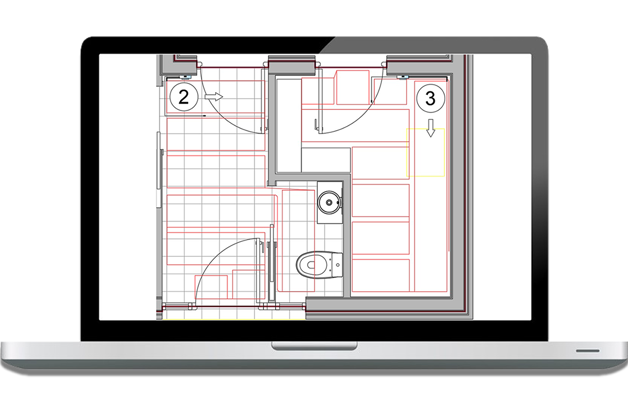

EH Plugin for AutoCAD

The plugin supports your engineering and design journey by making your work faster due to simple functionalities in calculating all lengths, dimensions, and product data of cables and mats. It covers all applications within electric heating projects: electric floor heating, ice and snow melting systems, pipe tracing, cold stores, sport fields, vineyards etc.

By utilizing the plugin, you will reduce design time for the project, provide all necessary information for installers in HTML/PDF format: BoM, resistance value check list, warranty list format. It means all project information can be consolidated in one file.

Plugin can be used with AutoCAD 2021.
