TE 5-55 thermostatic expansion valves, exchangeable orifice

Wide capacity range

The TE 5 – TE 55 thermostatic expansion valves parts-program has proven its value since it was first introduced in 1964. It is still a popular choice air conditioning systems around the world.

The TE 5 - TE 55 series controls the amount of refrigerant injected into the evaporator.
The replaceable power element is produced with the well-known Danfoss laser welding technology for extended life time.

The TE 5 - TE 55 thermostatic expansion valve family is universal and adaptable, and comes with:

  • A wide capacity range for any kind of air conditioning system
  • A wide temperature range (–60 °C to +10°C)
  • Suitable for new and old standard refrigerants (except R 410A and HC-refrigerants)
  • With and without maximum operating pressure (MOP) charge characteristics

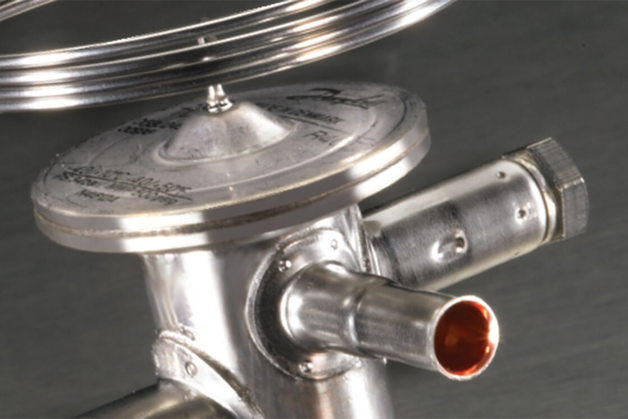

Overview of Danfoss thermostatic expansion valves (TXVs)

Product overview

Below, please find our overview brochure for thermostatic expansion valves.

Features and benefits

Large operating range: N-range -40°C to +10°C; B-range -60°C to -25°C

Interchangeable orifice assembly

Stainless steel power element, capillary tube and bulb

Wide capacity range

Easy to select orifice to minimize capacity gaps and overlaps

Maximum Operating Pressure (MOP) functionality is available

Complete parts program (build to order) with many possible combinations of connections
