EV210BW 1.5-6 is a direct-operated 2/2-way solenoid valve for universal use. It is a very robust high-performance valve program, designed with EPDM seal and lead-free dezincification resistant Eco brass for drinking water.
The valve can be used in all kinds of tough working conditions in demanding industrial applications:
- For water supply and control
- Dosing application
- Food processing
- Water treatment / Reverse Osmosis
The valves are ideal choice for applications where drinking water approvals as RISE, SINTEF, ACS or PZH are required.
Features and benefits
Body material in ECO Brass (lead-free <0.1%) and dezincification resistant
New generation EPDM sealings recommended for drinking water.
Clip-on coil
Flow range Kv 0.08 – 0.7 m³/h
Differential pressure 0 - 10 bar
Media temperature range -30 – 90 °C
Ambient temperature: Up to 50 °C
Coil enclosure: Up to IP67
Thread connections: G 1/8, G ¼ & G 3/8
Viscosity: Up to 50 cSt
Approvals and certificates
Valves are certified by RISE, notified body 1002. Valid in Denmark and Sweden. In accordance with Boverket Building Regulations (BBR 21, 2014-06-17) Certificate number SCO155-18 Inspection by DTI.
Valves are certified by SINTEF. Valid in Norway. In accordance with NKB Product rules nr. 13, pkt. 3.2 – 3.6 -NT VVS 100, pkt. 6.4.2 & 6.4.8 -EN ISO 6509
Inspection by DTI
Valves are certified by Carso according to ACS guidelines, Circulaire 2002/571. Valid in France
Hygenic certificate B-BK-60210-1275/19. Issued by the Polish National Institute of Public health (PZH). Valid in Poland
Wetted materials in accordance with 4MSI (member states Germany (DVGW – W270), Holland (KTW), France (ACS), UK (WRAS) and Denmark (RISE)
In accordance with:
- Low Voltage Directive 2014/35/EU
- EN60730-1
- EN60730-2-8
- Pressure Equipment Directive 2014/68/EU
RoHS Directive 2011/65/EU without exemption 6c
Documents
Type | Name | Language | Valid for | Updated | Download | File type |
---|---|---|---|---|---|---|
Data sheet | Direct-operated 2-2-way solenoid valves | Polish | Multiple | 29 Dec, 2021 | 7.5 MB | |
Data sheet | Solenoid valve Type EV210BW | German | Multiple | 29 Dec, 2021 | 7.5 MB | |
Data sheet | Solenoid valve Type EV210BW | Swedish | Multiple | 29 Dec, 2021 | 7.5 MB | |
Data sheet | Solenoid valve Type EV210BW | Italian | Multiple | 29 Dec, 2021 | 7.6 MB | |
Data sheet | Solenoid valve Type EV210BW | Danish | Multiple | 29 Dec, 2021 | 7.5 MB | |
Data sheet | Solenoid valve Type EV210BW | Spanish, Castilian | Multiple | 29 Dec, 2021 | 7.5 MB | |
Data sheet | Solenoid valve Type EV210BW | English | Multiple | 06 Nov, 2023 | 8.3 MB | |
Data sheet | Solenoid valve Type EV210BW | French | Multiple | 29 Dec, 2021 | 7.6 MB |
Approvals
Type | Name | Language | Valid for | Updated | Download | File type |
---|---|---|---|---|---|---|
Hygienic Certificate | RISE SC0155-18 | English; Swedish | Multiple | 27 Nov, 2024 | 194.2 KB |
Related products
-

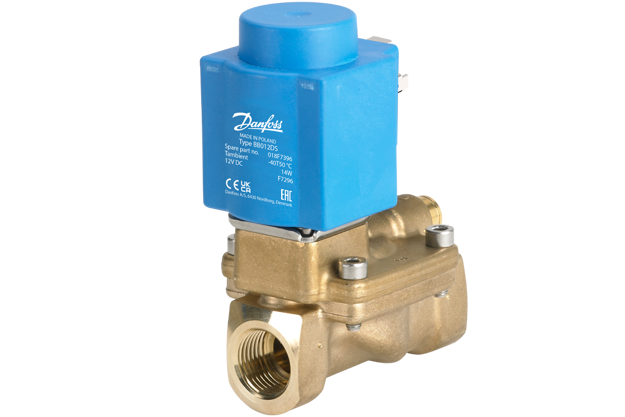

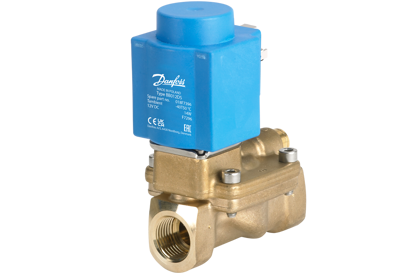

if (isSmallPicture) { ; } else if (isBigColumns) { } else { }EV228BW 15-50, indirect servo-operated 2/2-way solenoid valve
