High temperature sensors for exhaust gas measuring on 2- and 4-stroke engines

The MBT 51xxx program is a heavy-duty temperature sensor portfolio that can be used for measuring and regulating exhaust gas from diesel engines, turbines, and compressors within stationary and marine applications.

The exhaust gas temperature sensors are designed for the performance optimization and environmental impact control of large 2- and 4-stroke engines. MBT 5111 and MBT 5113 are based on thermocouple technology for media temperatures up to 800 °C. MBT 5114 and MBT 5116 are based on a Pt 100/Pt 1000 element technology for standardized signals for media temperatures up to 650 °C.

Features and benefits

All parts in contact with the media are made of stainless steel AISI 316 Ti.

Thermo-couple and Pt 100 or Pt 1000 sensing element

High accuracy

Shock- and vibration-resistant

Interchangeable measuring insert (MBT 5113 and MBT 5116)

Exhaust gas temperature sensors for 4-stroke engines

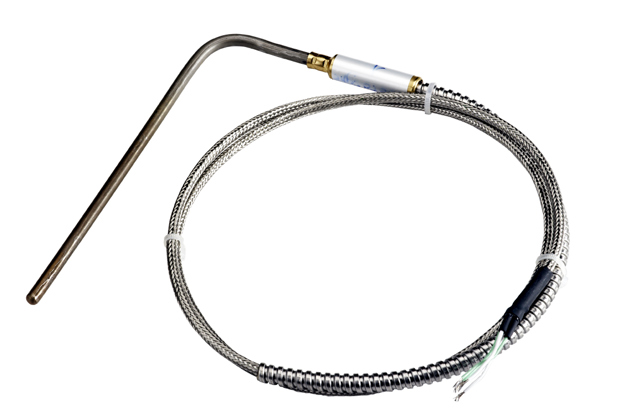

MBT 5111
MBT 5111 Thermo-couple temperature sensor designed for medium- and high-speed 4-stroke engines

MBT 5111 features:

  • With thermo-couple
  • -50 to 800°C media temperature
  • Adjustable insertion length up to 150 mm using movable compression fitting
  • Slim construction gives a short reaction time of t0.5 = 2 sec. in water
  • Sensor is delivered with a 6m extension cable as standard
  • No cold junction compensation
  • Moisture-resistant from day one
  • Easy installation with no polarity on the cable

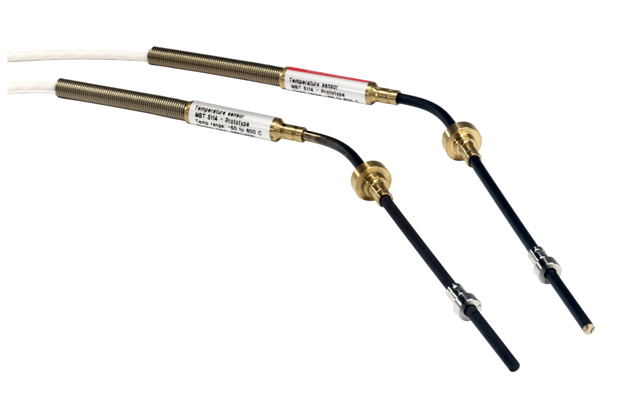

MBT 5114
MBT 5114 Pt-element temperature sensor designed for medium- and high-speed 4-stroke engines

MBT 5114 features:

  • With Pt-elements
  • -50 to 600°C  media temperatures (peak 700 °C)
  • Fixed or adjustable insertion length
  • 1 or 2 Pt 1000 elements
  • No cold junction compensation
  • Moisture-resistant from day one
  • Easy installation with no polarity on the cable

Exhaust gas temperature sensors for 2-stroke engines

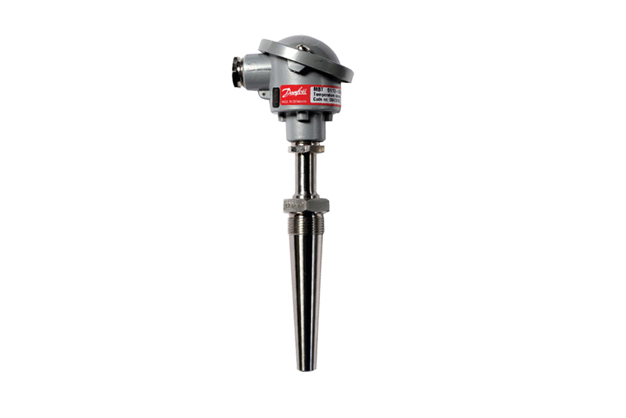

MBT 51113
MBT 5113 Thermo-couple temperature transmitter/sensor designed for medium- and high-speed 2-stroke engines

MBT 5113 features:

  • With thermo-couple
  • -50 to 800°C media temperature
  • B-head for standard installations
  • Changeable inserts
  • Solid-drilled protection tube for high resistance to shock and vibration
  • 1 or 2 x NiCr-Ni, type K

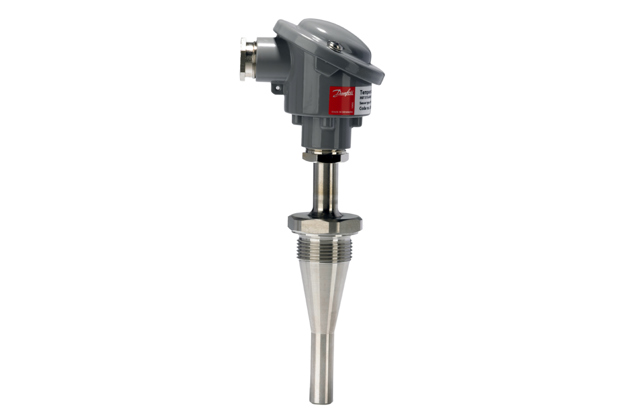

MBT 5116
MBT 5116 Pt-element temperature transmitter/sensor designed for medium- and high-speed 2-stroke engines

MBT 5116 features:

  • With Pt-elements
  • -50 to 600°C  media temperatures
  • Available in 2 versions:
  • Slim-line for compact installations
  • B-head for standard installations
  • 2 or 3 wire connections
  • Solid-drilled protection tube for high resistance to  shock and vibration
  • Changeable insert

Documents

Documents
Type Name Language Valid for Updated Download File type
Data sheet Exhaust gas temperature sensor MBT 5111 Chinese (CN) Multiple 07 Jul, 2017 786.5 KB .pdf
Data sheet Exhaust gas temperature sensor MBT 5111 German Multiple 07 Jul, 2017 774.5 KB .pdf
Data sheet Exhaust gas temperature sensor MBT 5111 Czech Multiple 07 Jul, 2017 762.6 KB .pdf
Data sheet Exhaust gas temperature sensor MBT 5111 Ukrainian Ukraine 05 May, 2020 750.5 KB .pdf
Data sheet Exhaust gas temperature sensor MBT 5111 Russian Multiple 07 Jul, 2017 750.5 KB .pdf
Data sheet Exhaust gas temperature sensor MBT 5114 Ukrainian Ukraine 05 May, 2020 467.7 KB .pdf
Data sheet Exhaust gas temperature sensor MBT 5114 German Multiple 03 Aug, 2016 486.4 KB .pdf
Data sheet Exhaust gas temperature sensor MBT 5114 Russian Multiple 03 Aug, 2016 467.7 KB .pdf
Data sheet Exhaust gas temperature sensor MBT 5114 Chinese (CN) Multiple 03 Aug, 2016 508.5 KB .pdf
Data sheet Exhaust gas temperature sensor MBT 5114 English Multiple 03 Aug, 2016 450.6 KB .pdf
Data sheet Exhaust gas temperature sensors MBT 5113 and MBT 5116 Russian Multiple 29 May, 2022 1.4 MB .pdf
Data sheet Exhaust gas temperature sensors MBT 5113 and MBT 5116 German Multiple 29 May, 2022 1.3 MB .pdf
Data sheet Exhaust gas temperature sensors MBT 5113 and MBT 5116 Chinese (CN) Multiple 04 Aug, 2022 1.5 MB .pdf
Data sheet MBT 5116 & MBT 5113 Exhaust Gas Temperature Sensors French Multiple 29 May, 2022 1.3 MB .pdf
Data sheet MBT 5116 & MBT 5113 Exhaust Gas Temperature Sensors Italian Multiple 29 May, 2022 1.3 MB .pdf
Data sheet MBT 5116 & MBT 5113 Exhaust Gas Temperature Sensors Spanish, Castilian Multiple 29 May, 2022 1.3 MB .pdf
Data sheet Temperature sensor, type MBT 5111 English Multiple 26 Feb, 2021 3.7 MB .pdf
Data sheet Temperature sensor, type MBT 5113 and MBT 5116 English Multiple 02 Mar, 2021 1.2 MB .pdf
Data sheet Temperature sensor, type MBT 5113 and MBT 5116 Polish Multiple 29 May, 2022 1.3 MB .pdf

Approvals

Approvals
Type Name Language Valid for Updated Download File type
Marine Safety Certificate ABS 21-2076513-PDA English Multiple 23 May, 2023 808.0 KB .pdf
Manufacturing Permission BV SMS.W.II-2179-C.0 English Multiple 23 May, 2023 572.6 KB .pdf
EU-UK Declaration Danfoss EU-UK 084R1019.03 English Multiple 23 May, 2023 1.3 MB .pdf
Marine Safety Certificate DNV GL TAA0000065 Rev. 2 English Multiple 23 May, 2023 171.3 KB .pdf
Marine Safety Certificate NKK TA22486M English Multiple 23 May, 2023 1.4 MB .pdf
Marine Safety Certificate RINA ELE064120XP-001 English Multiple 23 May, 2023 1.1 MB .pdf
