Engineering tomorrow’s power systems

The Danfoss power stack is a high-quality power conversion assembly and is a major building block in any larger power conversion system.  The assembly comprises of stacked and customized IGBTs (insulated-gate bipolar transistors), which gives power system suppliers the opportunity for unique performance parameters, differentiating their products from their competitors'.

For decades, Danfoss has been helping the world’s largest power system suppliers meet stringent reliability, life-time and cost targets by designing, developing, and manufacturing customized power stacks with the overall goal of optimizing system costs, to deliver competitive advantage.

Tailored to your needs. Built to last.

We design our power stacks according to your individual mission profile – from the individual semiconductors that are used in the power modules, to the mechanical dimensions of the power stack and the control functions to be implemented.

With the average lifespan of a power conversion system being 15–20 years, reliability, flexibility (input and output) and efficiency of power stacks are vital. Wind turbine generators and solar parks operate 24/7 and are exposed to extreme weather conditions. This calls for rugged equipment designed for heavy loads and high performance. At Danfoss you instantly benefit from years of expertise in power modules, thermal management, manufacturing and testing of power conversion equipment.

Cost-effective modularity

Using a modular design approach, the power stacks are customized to the specific mission profile of your application in a cost-effective manner.

  • 380 – 690 VAC
  • 500 – 1400A rms
  • Liquid cooling using ShowerPower® technology
  • Analogue voltage, current and temperature measurements
  • Full protection built-in
  • Easy paralleling
  • Scalable up to 8 MW
  • Easy to integrate

Added value for the power system

Choosing a custom-made power stack design offers multiple advantages over standard products:

  • High power density
  • Modular design, easy paralleling and integration
  • Flexible configuration/topology
  • Compact and lightweight
  • Reliable liquid cooling
  • Built for harsh and demanding environments

Main applications

  • Marine & Off-shore
  • Wind turbine
  • Solar inverter
  • Oil, Gas and Mining
  • Compressors
  • HVAC
  • Industrial motor drives and elevators

Power stack technical features

  • Efficient and innovative cooling technology
  • DC-link film capacitors
  • Six PWM signals to control each IGBT
  • Hardware interlock between upper and lower switch
  • Hardware dead time control
  • Multiple logic levels supported (0-5 V, 0-12 V, 0-15 V)
  • Fast disabling of inverter output
  • Short circuit protection
  • Over voltage protection
  • Earth fault protection
  • Over temperature protection
  • External reset
  • SPDT fault relay, NO/NC contacts, 230 VAC
  • Three analogue current signals
  • Analogue DC link voltage
  • Three analogue IGBT temperatures
  • Modbus

Downloads

Downloads
Type Name Language Valid for Updated Download File type
Fact sheet Danfoss Bond Buff er P3 English Multiple 30 Oct, 2017 652.6 KB PDF
Fact sheet Danfoss P3 & P2 power modules English Multiple 30 Oct, 2017 2.2 MB PDF
Fact sheet Danfoss power stacks English Multiple 30 Oct, 2017 2.1 MB PDF
Fact sheet Danfoss PowerStack Light English Multiple 30 Oct, 2017 2.4 MB PDF
Brochure Harness the wind English Multiple 30 Oct, 2017 6.0 MB PDF
Fact sheet IGBT modules for 3-Level inverters English Multiple 30 Oct, 2017 2.3 MB PDF

Related products

  • if (isSmallPicture) { High voltage electric inverters; } else if (isBigColumns) { High voltage electric inverters } else { High voltage electric inverters }

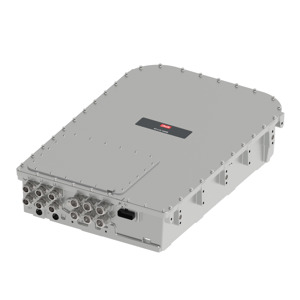

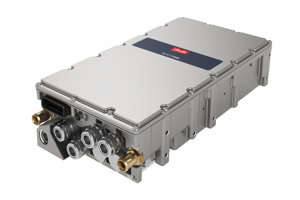

    High voltage electric inverters

    High-voltage inverters convert direct current (DC) from batteries or generators to alternating current (AC) to power motors or other devices. Our inverters support a variety of applications, including traction drives, grid connections and island grids with nominal DC voltage up to 1 kV and maximum power up to 300 kW per inverter.

  • if (isSmallPicture) { High voltage multipurpose motors; } else if (isBigColumns) { High voltage multipurpose motors } else { High voltage multipurpose motors }
    High voltage multipurpose motors

    A wide range of electric machines allows to select the exact machine type to fit the required torque, speed or power. Highest efficiency enabling higher operating ranges in hybrid- or full-electric applications. All electric machines are designed for the harsh operating conditions in work machines, commercial vehicles and marine applications.

  • if (isSmallPicture) { DCDC inductor; } else if (isBigColumns) { DCDC inductor } else { DCDC inductor }

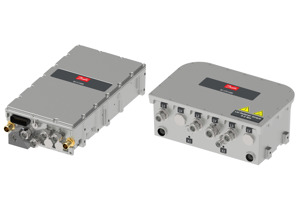

    DC/DC converters
