Coils and electronics

Versatile and robust performance

Discover the perfect fit for your valves with our coils, available for all sizes and in a variety of connector types and voltages. Beyond our standard range, our Robust Coil and ToughCoil series are built to withstand extremes – from voltage and temperature variations to water ingression caused by power spray or submersion. What's more, our coils are PLUS+1® Compliant, ensuring seamless integration into your mobile control systems.

Learn more

Features and benefits

Protection index up to IP69K

Power up to 33 W

Efficiency

The design of our coils is optimized to generate force with the lowest possible usage of current. This contributes to machine efficiency and helps save precious battery charge.

Plus+1 Compliance

Danfoss coils are PLUS+1™ compliant, resulting in quick and seamless integration in your control system.

Environmental protection

Danfoss Robust Coil and ToughCoil series are designed specifically to meet the highest requirements of ingress protection, ambient temperature compatibility, vibration resistance, and much more.

Product range

Coils

Coil name	Description	Power (W)	Diode	Available voltages, DC	110/115, 220/230 VAC*
M13	Standard Coil	20	Uni-directional	10, 12, 20, 24 VDC	External rectifier needed
R13	Robust Coil	16	Bi-directional	10, 12, 20, 24 VDC	Not available
S Series	ToughCoil	20	Uni-directional	12, 24 VDC	Internally rectified
P Series	ToughCoil	23	Uni-directional	12, 24 VDC	Internally rectified
C13	Standard Coil	14-27	Not available	12, 24 VDC	External rectifier needed
M16	Standard Coil	26	Uni-directional	10, 12, 20, 24 VDC	External rectifier needed
R16	Robust Coil	20	Bi-directional	10, 12, 20, 24 VDC	Not available
J Series	ToughCoil	23	Uni-directional	12, 24 VDC	Internally rectified
K Series	ToughCoil, Low Power			10	not available
H Series	ToughCoil	29	Uni-directional	12, 24 VDC	Internally rectified
L Series	Large ToughCoil	28	Not available	12, 24 VDC	Not available
C16	Standard Coil	19-29	Not available	12, 24 VDC	External rectifier needed
M19	Standard Coil	33	Uni-directional	12, 24 VDC	External rectifier needed
D14E (30 W)	Robust Coil	30	Uni-directional	10, 12, 20, 24 VDC	Not available
R Series	Large ToughCoil	30	Bi-directional	12, 24 VDC	Not available
M19P	Proportional Coil	22	Not available	12, 24 VDC	Not available
D14E (35 W)	Proportional Coil	35	Not available	12, 24 VDC	Not available
EPV Series	Proportional Coil	16.8	Not available	12, 24 VDC	Not available
E Series	Proportional Coil	30	Not available	12, 24 VDC	Not available

*Available only with selected connectors. Check the technical pages for details.

Documents

Documents
Type	Name	Language	Valid for	Updated	Download	File type
User guide	ICS Cartridge Valves Coils and Electronics Technical Information	English	Multiple	15 Mar, 2024	1.8 MB	.pdf

Related products

PLUS+1® software

PLUS+1^® GUIDE and Service Tool is the foundation of the PLUS+1^® platform. It is engineered to accelerate your development process and bring higher quality machines to market faster.

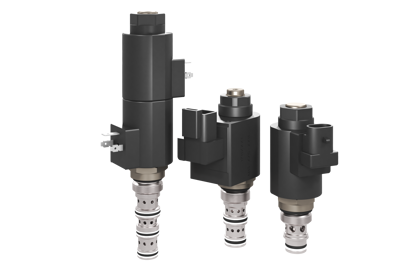

ICS solenoid valves
